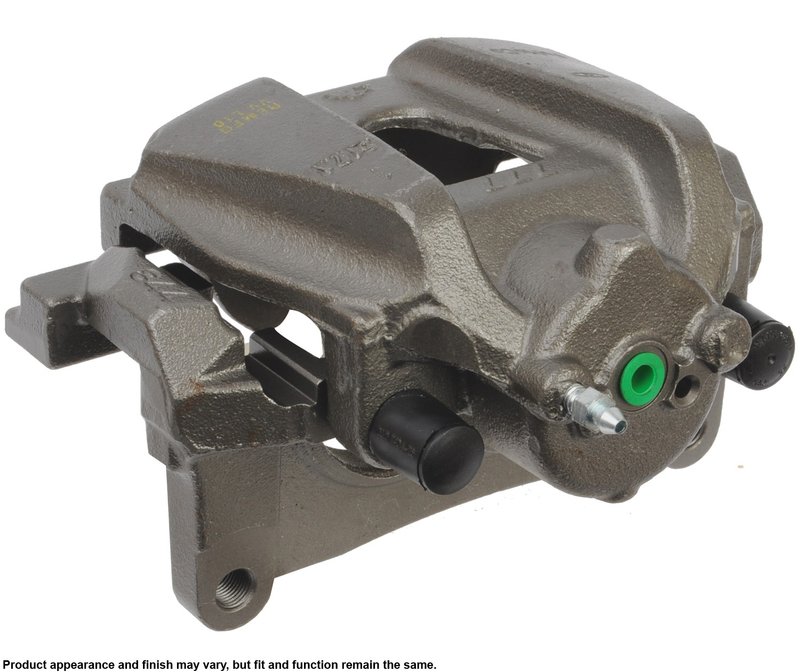

Cardone 19-B3444 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket for Mazda 6

The Cardone 19-B3444 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Mazda 6 models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit for installation
• Bleeder port size: M8x1.25; inlet port size: M10x1.0
• Caliper color: gray with oil emulsion finish for corrosion resistance
• Compatible with Mazda 6 models requiring part number 19-B3444

About the Cardone Unloaded Caliper w/Bracket Product Line

The Cardone Unloaded Caliper w/Bracket line provides remanufactured calipers that come complete with the necessary bracket and hardware kit, but without brake pads. This allows for flexibility in brake pad selection while ensuring the caliper assembly meets strict quality standards. The 19-B3444 model is part of this line, offering a reliable replacement option for Mazda 6 vehicles requiring a steel piston caliper with precise port sizes and mounting compatibility.

Product Details and Specifications

This Cardone disc brake caliper features a single steel piston with an outer diameter of 56.896 mm, designed to provide consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and extends service life. The bleeder port size is M8x1.25, and the inlet port size is M10x1.0, matching OEM specifications for proper brake fluid flow and maintenance. Installation hardware is included, though mounting bolts are not provided. This caliper does not include brake pads, allowing for custom pad selection based on driver preference or vehicle requirements.

Common Applications and Problem Resolution

• Replacement for worn or leaking brake calipers on Mazda 6
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware issues
• Restores proper brake fluid flow and pressure for consistent pedal feel

Installation Notes and Tips

When installing the Cardone 19-B3444 caliper on a Mazda 6, use the included hardware kit for secure mounting. Apply silicone grease to the floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove any air and restore proper pedal height. Note that mounting bolts are not included and should be reused or replaced as needed.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The steel piston construction and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper assembly. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
