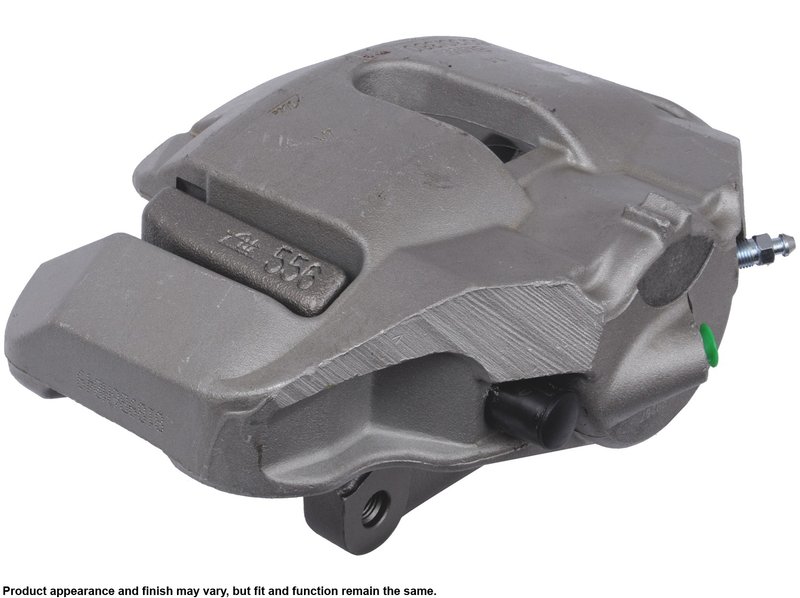

Cardone 19-B3616 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B3616

The Cardone Unloaded Caliper w/Bracket 19-B3616 is a remanufactured disc brake caliper designed for BMW 1 Series M and M3 models. Engineered with an aluminum piston and finished with an oil emulsion coating, this caliper offers reliable braking performance and corrosion resistance.

• Compatible with BMW 1 Series M and M3
• Remanufactured disc brake caliper with bracket included
• Single aluminum piston with 59.87 mm outer diameter
• Oil emulsion gray finish for durability
• Includes installation hardware kit (mounting bolts not included)
• Bleeder and inlet port size: M10x1.0

Cardone Unloaded Caliper w/Bracket Product Line Details

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to simplify brake system repairs by offering a ready-to-install caliper assembly without brake pads, allowing for flexibility in pad selection. The 19-B3616 model maintains OEM specifications for fit and function, ensuring compatibility with specific BMW models.

Technical Features and Specifications

This disc brake caliper features a single aluminum piston measuring approximately 59.87 mm in diameter, which contributes to effective braking force and heat dissipation. The caliper is finished with an oil emulsion coating in gray, providing resistance against corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM standards for brake hydraulics. The package includes the caliper, bracket, and a hardware kit to facilitate installation, though mounting bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on BMW 1 Series M and M3
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper malfunction
• Restores proper brake hydraulic function and pedal feel

Installation Notes and Tips

When installing the Cardone 19-B3616 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use brake fluid recommended by the vehicle manufacturer, typically DOT 3 or DOT 4, and bleed the brake system thoroughly to remove air and restore proper pedal height.

Quality Assurance and Warranty

This remanufactured caliper meets OEM specifications for fit, form, and function. Cardone provides quality assurance through rigorous testing and inspection during the remanufacturing process. Installation hardware is included to support proper fitment. For warranty details, refer to Cardone’s standard coverage policies applicable to remanufactured brake components.
