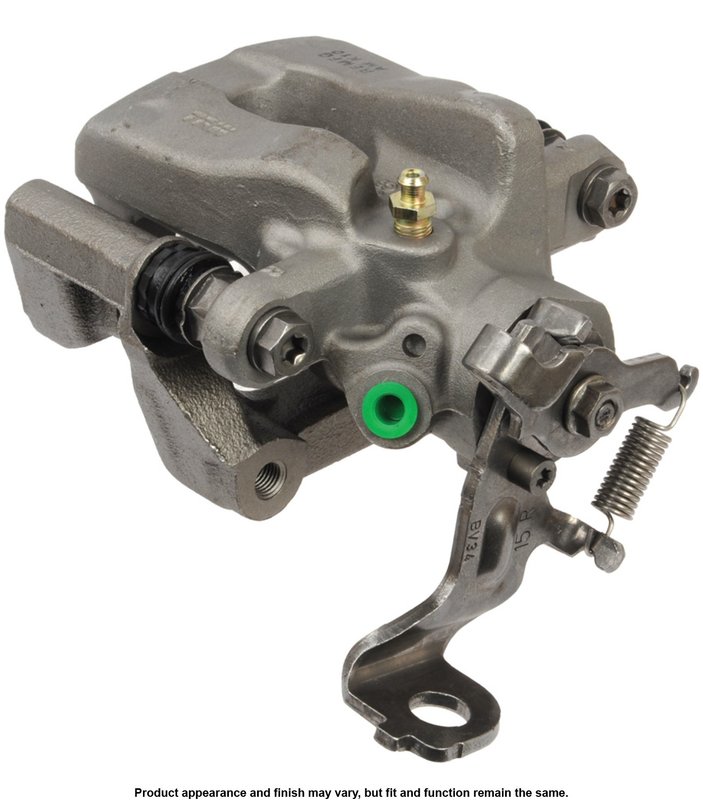

Cardone 19-B3796 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B3796

The Cardone Unloaded Caliper w/Bracket 19-B3796 is a remanufactured disc brake caliper designed for reliable braking performance. This caliper is compatible with select Pontiac and Toyota models, including the Corolla, Matrix, and Vibe, providing a precise fit and dependable operation.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Brake caliper finish: oil emulsion in gray color
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line is designed to provide a cost-effective replacement option without brake pads included, allowing for flexibility in brake system maintenance. The 19-B3796 model maintains OEM specifications such as piston size and port dimensions to ensure compatibility and performance.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston with an outer diameter of 38.1508 mm, providing consistent braking force. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion. Both the bleeder and inlet ports are sized M10x1.0, matching OEM standards for proper brake fluid flow. The package includes the caliper, mounting bracket, and a hardware kit, though mounting bolts are not included. This remanufactured caliper is designed for use on Pontiac and Toyota vehicles such as the Corolla, Matrix, and Vibe, ensuring a precise fit and reliable braking performance.

Common Applications and Problem Solving

• Replacement for worn or leaking brake calipers on Pontiac Corolla, Toyota Matrix, and Vibe
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper issues
• Restores proper brake fluid flow and caliper piston function

Installation Notes and Tips

When installing the Cardone 19-B3796 caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4, to maintain system integrity. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit and function. The steel piston and oil emulsion finish contribute to durability and corrosion resistance. Installation hardware is included to facilitate proper mounting. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
