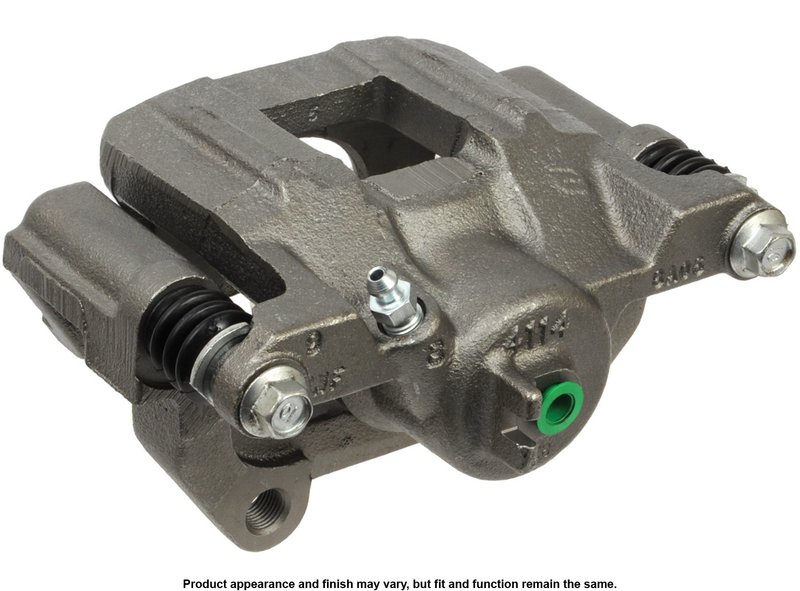

Cardone 19-B3824 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket for Honda Pilot

The Cardone 19-B3824 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for the Honda Pilot. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with steel piston
• Includes caliper, bracket, and hardware kit
• Bleeder and inlet port size: M10x1.0
• Caliper color: Gray with oil emulsion finish
• Installation hardware included; mounting bolts not included
• Compatible with Honda Pilot models

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line focuses on providing a ready-to-install solution without brake pads, allowing for flexibility in pad selection while maintaining OEM fit and function. The 19-B3824 model is part of this line, designed to deliver consistent braking performance for the Honda Pilot.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston with an outer diameter of 41.275 mm, providing effective clamping force for the brake pads. The caliper is finished with an oil emulsion coating to resist corrosion and extend service life. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The caliper is gray in color and includes a hardware kit for installation, though mounting bolts are not included. A silicone grease is recommended for the floating caliper mounting pins to ensure smooth operation.

Common Applications and Problem Resolution

• Replaces worn or leaking brake calipers on Honda Pilot models
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper issues
• Restores proper brake fluid sealing and piston function

Installation Notes and Tips

When installing the Cardone 19-B3824 caliper on a Honda Pilot, ensure the use of OEM recommended brake fluid (DOT 3, DOT 4, or DOT 5 as specified by the vehicle manufacturer). Apply silicone grease to the floating caliper mounting pins to prevent binding and noise. The included hardware kit should be used for secure mounting, but note that mounting bolts are not provided and must be reused or replaced separately. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The oil emulsion finish provides corrosion resistance to extend the caliper's service life. Installation hardware is included to facilitate proper mounting. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use conditions.
