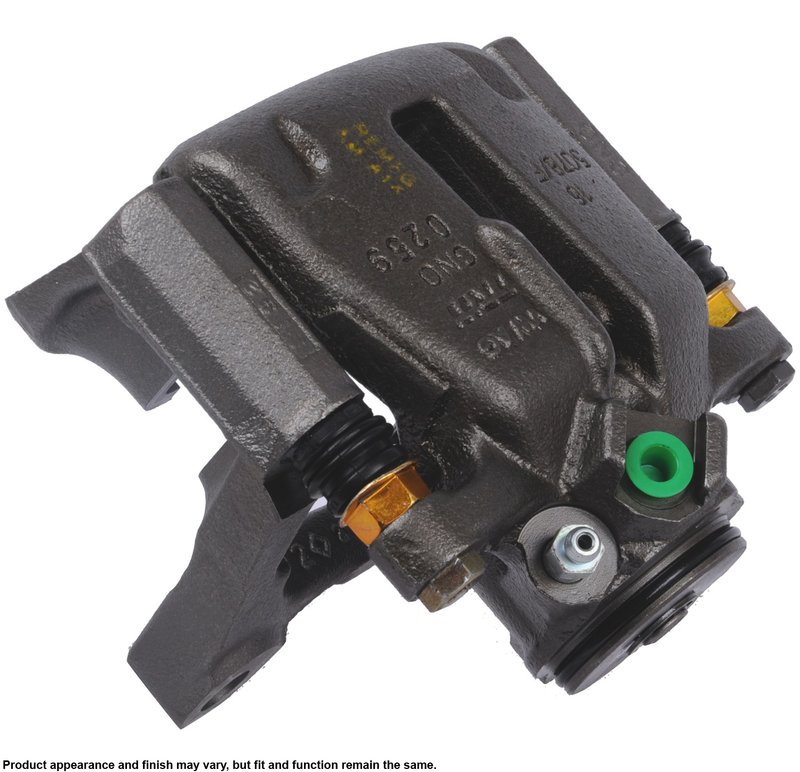

Cardone 19-B6158NM Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket 19-B6158NM

The Cardone Unloaded Caliper w/Bracket 19-B6158NM is a remanufactured disc brake caliper designed for select Volkswagen models including the CC, Passat, Passat CC, and Tiguan. Engineered with a steel piston and finished with an oil emulsion coating, this caliper offers reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket and hardware kit included
• Compatible with Volkswagen CC, Passat, Passat CC, and Tiguan models
• Steel piston with a 40.9956 mm outer diameter for consistent braking force
• Oil emulsion finish in gray for enhanced corrosion protection
• Bleeder port size M10x1.0 and inlet port size M10x1.5 for proper hydraulic connection
• Includes installation hardware; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by ensuring all essential components are included, except for mounting bolts. The unloaded design means the caliper does not include brake pads, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This disc brake caliper features a single steel piston with a precise 40.9956 mm outer diameter, delivering consistent hydraulic pressure for effective braking. The caliper’s oil emulsion finish in gray helps resist rust and wear, extending service life. The bleeder port and inlet port sizes (M10x1.0 and M10x1.5 respectively) are designed to match original equipment specifications, ensuring proper brake fluid flow and maintenance. Installation hardware is included to facilitate mounting, though mounting bolts must be sourced separately.

Common Applications and Problem Solving

• Replaces worn or leaking calipers on Volkswagen CC, Passat, Passat CC, and Tiguan
• Addresses symptoms of low brake pedal often caused by caliper issues
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware wear
• Restores proper brake hydraulics for improved pedal feel and safety

Installation Notes and Tips

When installing the Cardone 19-B6158NM caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and should be reused or replaced as needed. It is recommended to apply silicone grease on floating caliper mounting pins to ensure smooth operation. Always use the brake fluid type specified by the vehicle manufacturer, typically DOT 3 or DOT 4. Bleed the brake system thoroughly to remove air and restore proper pedal height.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet or exceed original equipment standards. Cardone provides a warranty covering defects in materials and workmanship, supporting reliable performance and customer confidence. The product is designed without e-waste components, aligning with environmental considerations.
