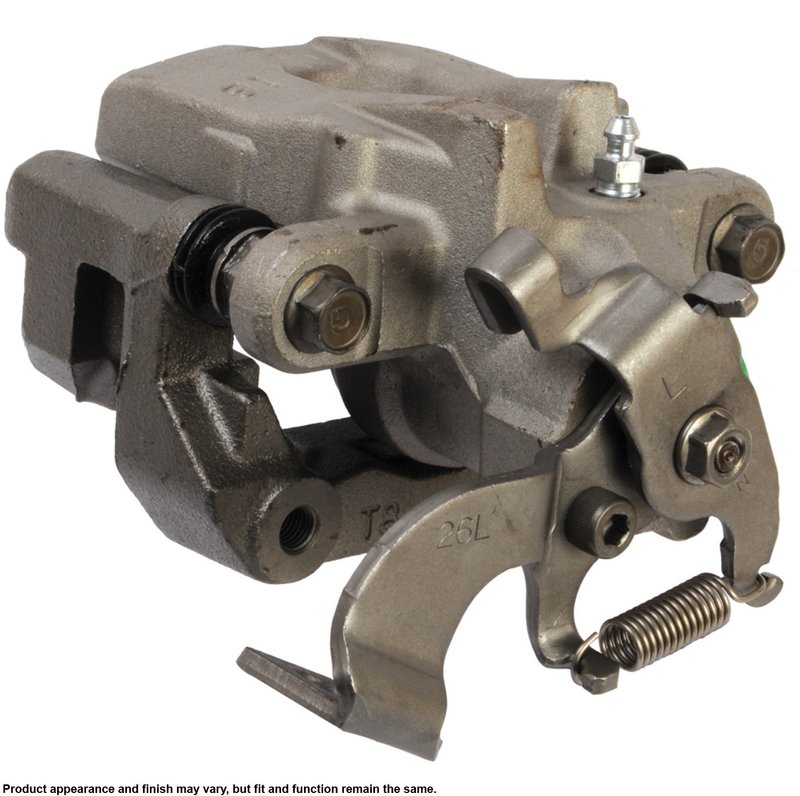

Cardone 19-B6287 Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Prius

The Cardone 19-B6287 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Prius and Prius Plug-In models. Engineered to meet OE specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Compatible with Toyota Prius and Prius Plug-In models
• Steel piston with 38.1 mm outer diameter for consistent braking force
• Bleeder and inlet port size: M10x1.0 for proper hydraulic connection
• Includes installation hardware kit (mounting bolts not included)
• Caliper finished with oil emulsion coating in gray color for corrosion resistance

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This configuration simplifies installation by providing all essential components except mounting bolts, which must be sourced separately. The unloaded design means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B6287 caliper features a single steel piston with a 38.1 mm diameter, providing reliable hydraulic pressure transfer for effective braking. The caliper’s bleeder and inlet ports are sized M10x1.0, ensuring compatibility with the Toyota Prius brake hydraulic system. The oil emulsion finish in gray offers corrosion protection to extend service life. Installation hardware is included to facilitate mounting, though mounting bolts are not part of the package. The caliper uses a silicone grease on floating caliper mounting pins to maintain smooth operation and reduce wear.

Common Applications and Problem Resolution

• Replacement for worn or leaking disc brake calipers on Toyota Prius and Prius Plug-In
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Resolves uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware issues
• Restores proper hydraulic pressure and brake fluid flow in the brake system

Installation Notes and Tips

When installing the Cardone 19-B6287 caliper, always use the brake fluid type recommended by the original equipment manufacturer to maintain system integrity. The included hardware kit should be used for mounting, but verify if mounting bolts are required separately. Apply silicone grease to the floating caliper mounting pins to ensure smooth caliper movement. Bleed the brake system thoroughly to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet or exceed OEM standards for fit, form, and function. The product condition is remanufactured, ensuring reliable performance comparable to new parts. Installation hardware is included to support proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship under normal use.
