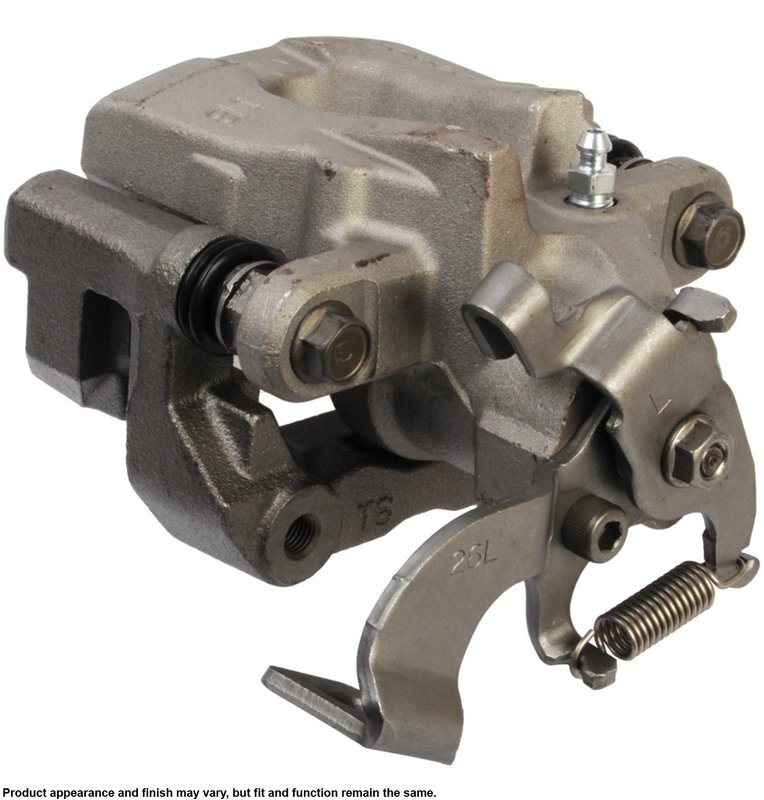

Cardone 19-B6287A Disc Brake Caliper - Rear Left

Overview of Cardone Unloaded Caliper w/Bracket for Toyota Prius

The Cardone 19-B6287A Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Toyota Prius models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Compatible with Toyota Prius vehicles
• Steel piston with 38.1 mm outer diameter
• Bleeder and inlet port size: M10x1.0
• Includes installation hardware kit (mounting bolts not included)
• Caliper finished with oil emulsion for corrosion resistance

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit for installation. This line is designed to provide a cost-effective replacement option without brake pads, allowing for flexibility in brake system maintenance and repair. The 19-B6287A model fits Toyota Prius vehicles and features a steel piston for consistent braking force.

Technical Description and Features

This Cardone disc brake caliper features a single steel piston measuring 38.1 mm in diameter, providing reliable hydraulic pressure for effective braking. The caliper is coated with an oil emulsion finish in gray to resist corrosion and extend service life. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The package includes the caliper, bracket, and a hardware kit to facilitate installation, though mounting bolts are not included. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce wear.

Common Applications and Problem Solving

• Replacement for worn or leaking calipers on Toyota Prius models
• Addresses symptoms of low brake pedal often caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side
• Eliminates brake squeal related to caliper issues
• Restores proper hydraulic pressure for consistent brake performance

Installation Notes and Tips

When installing the Cardone 19-B6287A caliper, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be sourced separately if needed. Always use the brake fluid type recommended by the vehicle manufacturer, typically DOT 3 or DOT 4. Apply silicone grease to the floating caliper mounting pins to ensure smooth caliper movement. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Toyota Prius brake system repairs. The oil emulsion finish and steel piston construction contribute to the caliper's durability and corrosion resistance.
