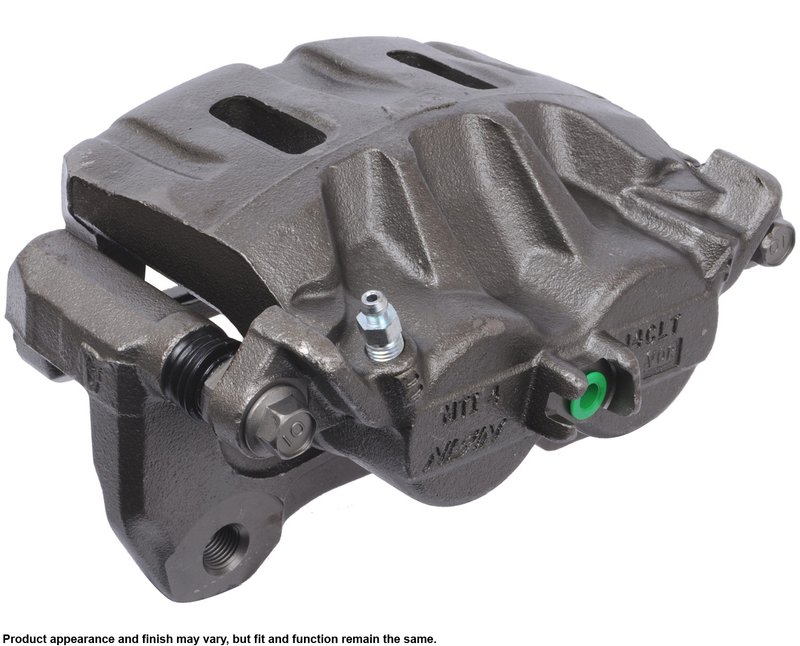

Cardone 19-B6448 Disc Brake Caliper - Front Left

Overview of Cardone Unloaded Caliper w/Bracket for Honda Odyssey

The Cardone 19-B6448 Unloaded Caliper w/Bracket is a remanufactured disc brake caliper designed specifically for Honda Odyssey models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance and durability.

• Remanufactured disc brake caliper with bracket included
• Compatible with Honda Odyssey vehicles
• Steel piston material with two pistons (48.08 mm OD)
• Oil emulsion brake caliper finish in gray color
• Includes installation hardware kit (mounting bolts not included)
• Bleeder port size: M10x1.25; inlet port size: M10x1.0

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the necessary bracket and hardware kit for installation. This line focuses on providing a cost-effective replacement option that maintains the integrity and function of the original equipment. The unloaded design means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B6448 caliper features a durable steel piston construction with two pistons measuring 48.08 mm in outer diameter, providing consistent clamping force for effective braking. The caliper is finished with an oil emulsion coating in gray, which offers corrosion resistance and a clean appearance. The bleeder port and inlet port sizes are M10x1.25 and M10x1.0 respectively, matching OEM specifications for proper brake fluid flow and maintenance. Installation hardware is included to facilitate mounting, though mounting bolts are not part of the package.

Common Applications and Problem Solving

• Replaces worn or leaking disc brake calipers on Honda Odyssey models
• Addresses symptoms such as low brake pedal height caused by air in the brake system
• Resolves uneven braking or vehicle pull to one side during braking
• Eliminates brake squeal related to caliper malfunction or hardware issues
• Restores proper brake fluid sealing and piston movement for safe operation

Installation Notes and Tips

When installing the Cardone 19-B6448 caliper on a Honda Odyssey, ensure the use of OEM recommended brake fluid to maintain system integrity. A silicone grease is advised for lubricating floating caliper mounting pins to prevent noise and ensure smooth operation. Although the hardware kit is included, verify if mounting bolts are required separately. Bleed the brake system thoroughly after installation to remove any air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for fit, form, and function. The product is designed to provide reliable braking performance consistent with factory specifications. Installation hardware is included to support proper mounting. Warranty details should be confirmed with the distributor or installer, as Cardone typically offers limited warranties on remanufactured brake components.
