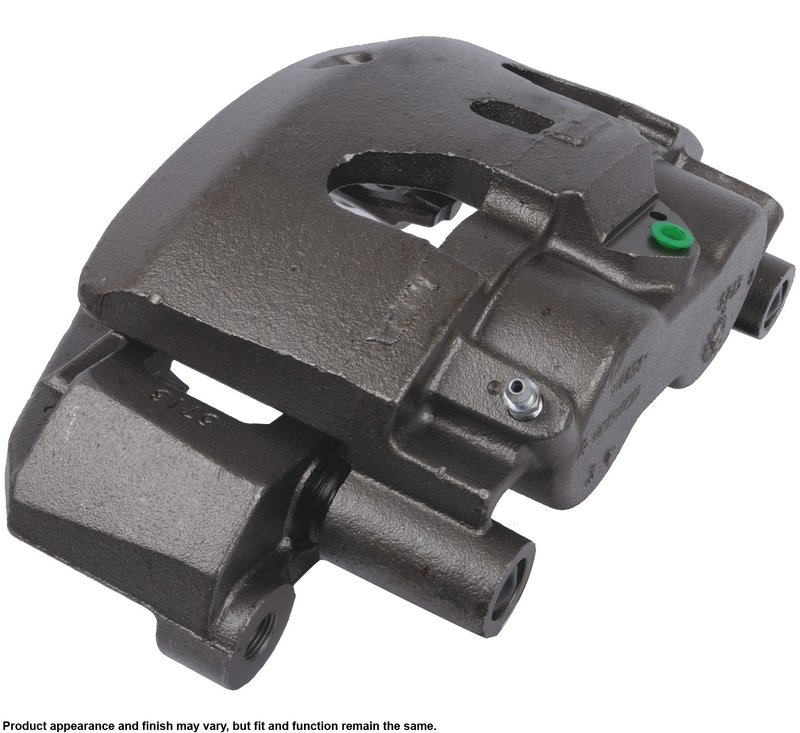

Cardone 19-B6863 Disc Brake Caliper - Front Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B6863

The Cardone Unloaded Caliper w/Bracket 19-B6863 is a remanufactured disc brake caliper designed for select Nissan models. Engineered to meet OEM specifications, this gray oil emulsion finished caliper ensures reliable braking performance for Nissan NV1500, NV2500, NV3500, and TITAN XD vehicles.

• Remanufactured disc brake caliper with steel pistons
• Includes caliper, bracket, and hardware kit for installation
• Bleeder and inlet port size: M10x1.0 for compatibility
• Oil emulsion finish with gray color for corrosion resistance
• Two 57.05 mm steel pistons for balanced braking force
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line provides remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This setup simplifies installation by delivering a ready-to-mount assembly, designed to restore braking function without the need for additional components. The 19-B6863 model fits specific Nissan trucks and vans, ensuring proper fit and function within this product line.

Technical Description and Features

This Cardone disc brake caliper features two steel pistons with an outer diameter of 57.0484 mm, providing consistent and durable braking pressure. The caliper is finished with an oil emulsion coating in gray, which helps resist corrosion and wear. Both the bleeder port and inlet port are sized M10x1.0, matching OEM specifications for fluid compatibility and maintenance. The caliper is remanufactured to meet strict quality standards and includes a hardware kit to facilitate installation, though mounting bolts are not included.

Common Applications and Problem Resolution

• Replacement for worn or leaking calipers on Nissan NV1500, NV2500, NV3500, and TITAN XD
• Addresses symptoms such as low brake pedal caused by air in the brake system
• Helps resolve uneven braking or vehicle pulling to one side during braking
• Eliminates brake squeal related to caliper issues
• Restores proper brake fluid flow and pressure with correct bleeder and inlet port sizes

Installation Notes and Tips

When installing the Cardone 19-B6863 caliper on Nissan NV1500, NV2500, NV3500, or TITAN XD models, use the included hardware kit for secure mounting. Note that mounting bolts are not included and must be reused or sourced separately. It is recommended to use the brake fluid type specified by the vehicle manufacturer and apply silicone grease on floating caliper mounting pins to ensure smooth operation. Bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured Cardone caliper undergoes rigorous testing to meet OEM standards for performance and durability. The steel piston construction and oil emulsion finish contribute to long service life. Installation hardware is included to support proper fitment. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, ensuring confidence in the replacement part.
