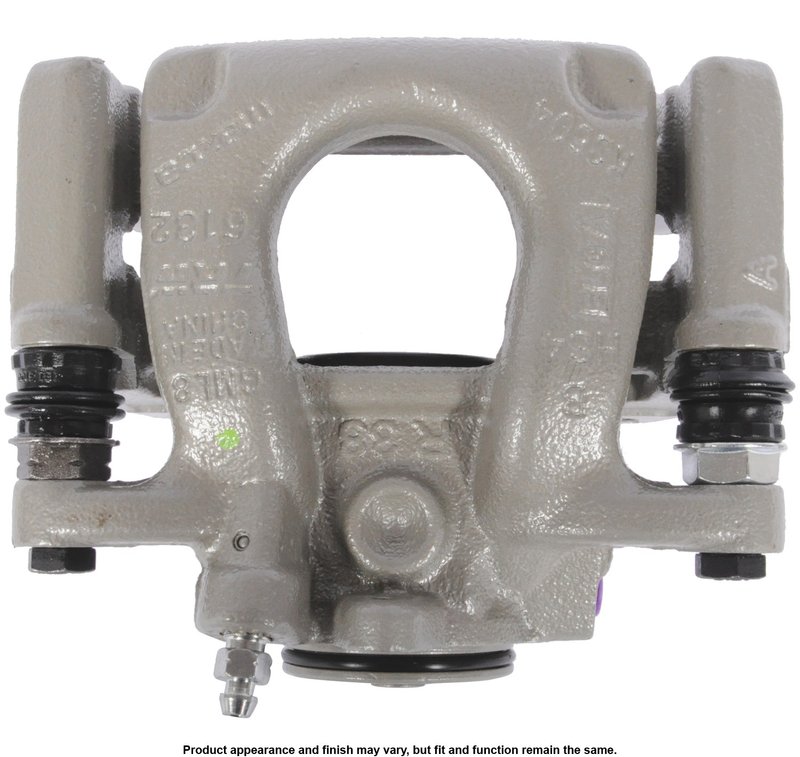

Cardone 19-B7434 Disc Brake Caliper - Rear Right

Overview of Cardone Unloaded Caliper w/Bracket 19-B7434

The Cardone Unloaded Caliper w/Bracket 19-B7434 is a remanufactured disc brake caliper designed specifically for Mazda 6 models. Engineered with a powder-coated gray finish and a steel piston, this caliper ensures reliable braking performance and corrosion resistance.

• Remanufactured disc brake caliper with bracket
• Compatible with Mazda 6 vehicles
• Steel piston with 1.503 inch (38.18 mm) diameter
• Powder-coated gray finish for durability
• Includes caliper, bracket, and hardware kit
• Bleeder and inlet port size: M10x1.0
• Installation hardware included; mounting bolts not included

Product Line Details: Unloaded Caliper w/Bracket

The Cardone Unloaded Caliper w/Bracket product line offers remanufactured calipers that come complete with the mounting bracket and necessary hardware kit. This design simplifies installation by providing all essential components except mounting bolts, which must be sourced separately. The unloaded configuration means brake pads are not included, allowing for flexibility in pad selection based on vehicle requirements.

Technical Description and Features

This Cardone 19-B7434 caliper features a single steel piston with a diameter of 1.503 inches (38.18 mm), providing consistent hydraulic pressure for effective braking. The caliper is finished with a durable powder coating in gray to resist corrosion and wear. Both the bleeder and inlet ports are sized M10x1.0, matching OEM specifications for proper brake fluid flow. The caliper uses silicone grease on floating caliper mounting pins to ensure smooth operation and reduce noise. This part is remanufactured to meet or exceed OEM standards, making it a reliable replacement for worn or damaged calipers on Mazda 6 models.

Common Applications and Problem Solving

• Replaces leaking or seized brake calipers on Mazda 6
• Addresses low brake pedal issues caused by caliper malfunction
• Resolves uneven brake pad wear and vehicle pull during braking
• Eliminates brake squeal related to caliper hardware or pin lubrication
• Restores proper hydraulic pressure and brake fluid flow

Installation Notes and Tips

Installation of the Cardone 19-B7434 caliper requires the use of the included hardware kit; however, mounting bolts are not included and must be obtained separately. It is recommended to use OEM-specified brake fluid (DOT 3 or DOT 4) during installation. Applying silicone grease to the floating caliper mounting pins will help prevent noise and ensure smooth caliper movement. Always bleed the brake system thoroughly to remove air and restore proper pedal feel.

Quality Assurance and Warranty

This remanufactured caliper undergoes rigorous testing to meet OEM performance standards. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. Using this caliper helps maintain the safety and reliability of the braking system on your Mazda 6.
