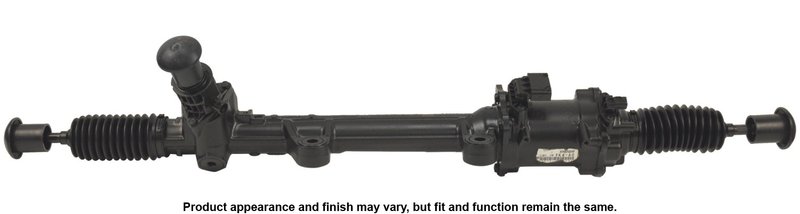

Cardone 1A-3024 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 1A-3024
The Cardone Rack and Pinion Assembly 1A-3024 is designed specifically for Acura TL models, providing reliable steering performance. This remanufactured steering component ensures precise handling and smooth operation for your vehicle's steering system.
- Compatible with Acura TL steering systems
- Remanufactured condition for cost-effective replacement
- Includes tie rod ends for complete installation
- Black finish with a rack length of 12 inches (304.8 mm)
- Input shaft diameter of 0.692 inches (17.58 mm) and length of 2 inches (50.8 mm)
- Distance between mounting holes: 21.625 inches (549.28 mm)
- Total turns lock to lock: 2.688 for responsive steering
- Package includes EPS rack, caution tag, instruction sheet, and packing material
Detailed Product Description
This Cardone Rack and Pinion Assembly 1A-3024 is engineered to meet the specifications of Acura TL vehicles, ensuring a precise fit and reliable steering response. The assembly features a 12-inch rack length and a black finish that resists corrosion. With four mounting holes spaced 21.625 inches apart, installation aligns with factory mounting points. The input shaft measures 0.692 inches in diameter and 2 inches in length, designed to interface seamlessly with the vehicle's steering column. The included tie rod ends simplify the replacement process by providing a ready-to-install steering solution. The total turns lock to lock of 2.688 offers controlled steering input, enhancing vehicle handling.
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that restore factory steering performance. Each assembly undergoes a thorough remanufacturing process to ensure durability and functionality. This line is designed to provide a cost-effective alternative to new parts while maintaining OEM specifications, making it suitable for Acura TL owners seeking reliable steering replacements.
Common Steering Issues Addressed by This Assembly
- Excessive play or looseness in steering
- Steering wheel vibration or noise
- Difficulty in steering or uneven steering response
- Leaking power steering fluid from the rack
- Worn or damaged tie rod ends affecting alignment
Installation Notes and Tips
- Ensure compatibility with Acura TL model year before installation
- Use the included instruction sheet for proper mounting hole alignment
- Check input shaft dimensions to confirm fit with steering column
- Replace tie rod ends as part of the assembly to maintain steering accuracy
- Bleed the power steering system after installation to remove air
Quality Assurance and Warranty
This remanufactured Cardone Rack and Pinion Assembly 1A-3024 is tested to meet strict quality standards. It includes a warranty that covers defects in materials and workmanship, providing assurance of its reliability and performance for Acura TL steering applications.
| Brand | Cardone |
|---|---|
| Part Number | 1A-3024 |
| Position | Rack and Pinion Assembly |
| Distance Between Mounting Holes (in) | 21.625 |
| Distance Between Mounting Holes (mm) | 549.28 |
| E-Waste | Yes |
| Input Shaft Diameter (in) | 0.692 |
| Input Shaft Diameter (mm) | 17.58 |
| Input Shaft Length (in) | 2 |
| Input Shaft Length (mm) | 50.8 |
| Package Contents | EPS Rack; Caution Tag; Instruction Sheet; Packing Material |
| Product Condition | Remanufactured |
| Rack Length (in) | 12 |
| Rack Length (mm) | 304.8 |
| Steering Rack Color/Finish | Black |
| Thread Length (in) | 1.81 |
| Thread Length (mm) | 46.08 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.688 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
| 2013 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
| 2012 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
| 2011 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
| 2010 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
| 2009 | Acura | TL | N/A | Includes Inner Tie Rods; Zero-point calibration is required following installation to ensure proper performance. A scan tool must be used to perform the calibration.; with Electronic Power Assist; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
