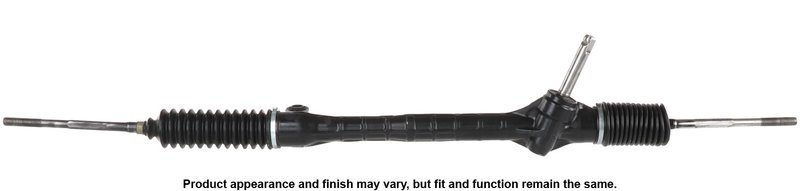

Cardone 1G-1008 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 1G-1008
The Cardone Rack and Pinion Assembly 1G-1008 is a remanufactured steering component designed specifically for Chevrolet HHR models. Engineered to restore precise steering control, this manual rack and pinion assembly features durable aluminum casting and a black finish to match OEM specifications.
- Remanufactured rack and pinion assembly for Chevrolet HHR
- Aluminum casting material for strength and corrosion resistance
- Manual steering type with black bellows and rack finish
- Includes inner tie rod ends and instruction sheet
- Precise mounting hole spacing of 17.125 inches (434.98 mm)
Detailed Product Features and Specifications
This Cardone Rack and Pinion Assembly 1G-1008 is built with an aluminum casting that offers a balance of lightweight durability and resistance to corrosion. The black bellows and steering rack finish provide protection against environmental elements. The assembly measures 47.75 inches (1212.85 mm) in rack length, with mounting holes spaced 17.125 inches (434.98 mm) apart, ensuring proper fitment in the Chevrolet HHR. The input shaft diameter is 0.758 inches (19.25 mm) with a length of 3.875 inches (98.43 mm), designed to match factory specifications. This assembly includes inner tie rod ends but does not come with outer tie rods, mounting brackets, or gaskets/seals.
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet or exceed OEM standards. These assemblies are engineered to provide reliable steering performance and durability for various vehicle applications. The 1G-1008 model is part of this line, offering a standard replacement option for manual steering systems in Chevrolet HHR vehicles.
Common Applications and Problem Resolution
- Restores precise steering response in Chevrolet HHR models
- Replaces worn or leaking rack and pinion assemblies
- Eliminates steering play or excessive noise during turns
- Addresses fluid leaks in manual steering systems
- Improves overall vehicle handling and safety
Installation Notes and Tips
Installation of the Cardone 1G-1008 rack and pinion assembly requires basic mechanical skills and proper tools. Ensure the mounting holes align with the vehicle’s frame using the 17.125-inch spacing as a guide. Since the assembly includes inner tie rod ends but no outer tie rods or mounting brackets, verify compatibility with existing components. Follow the included instruction sheet carefully and check steering system alignment after installation.
Quality Assurance and Warranty
This remanufactured rack and pinion assembly undergoes thorough inspection and testing to meet quality standards. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Chevrolet HHR owners seeking a reliable steering replacement part.
| Brand | Cardone |
|---|---|
| Part Number | 1G-1008 |
| Position | Rack and Pinion Assembly |
| Bellows Color | BLACK |
| Casting Material | ALUMINUM |
| Distance Between Mounting Holes (in) | 17.125 |
| Distance Between Mounting Holes (mm) | 434.98 |
| E-Waste | NO |
| Gasket or Seal Included | NO |
| Grade Type | Standard Replacement |
| Input Shaft Diameter (in) | 0.758 |
| Input Shaft Diameter (mm) | 19.25 |
| Input Shaft Length (in) | 3.875 |
| Input Shaft Length (mm) | 98.43 |
| Mounting Brackets Included | NO |
| Outer Tie Rods Included | NO |
| Package Contents | Rack and Pinion; Instruction Sheet |
| Product Condition | Remanufactured |
| Rack Length (in) | 47.75 |
| Rack Length (mm) | 1212.85 |
| Steering Rack Color/Finish | BLACK |
| Thread Length (in) | 2.195 |
| Thread Length (mm) | 55.75 |
| Tie Rod Ends Included | INNER |
| Type | Manual |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Chevrolet | HHR | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly | |
| 2010 | Chevrolet | HHR | LS Panel | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly |
| 2010 | Chevrolet | HHR | LS | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly |
| 2010 | Chevrolet | HHR | LT Panel | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly |
| 2010 | Chevrolet | HHR | LT | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly |
| 2009 | Chevrolet | HHR | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly | |
| 2008 | Chevrolet | HHR | N/A | with Sport Suspension ( (FE3) ); Includes Inner Tie Rods; Option Codes are on the Service Parts Identification Sticker; Electronic Power Steering with Manual Rack; Rack and Pinion Assembly | |
| 2007 | Chevrolet | HHR | Elegance LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2007 | Chevrolet | HHR | LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2007 | Chevrolet | HHR | Comfort LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2006 | Chevrolet | HHR | Elegance LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2006 | Chevrolet | HHR | LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2006 | Chevrolet | HHR | Comfort LT | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
