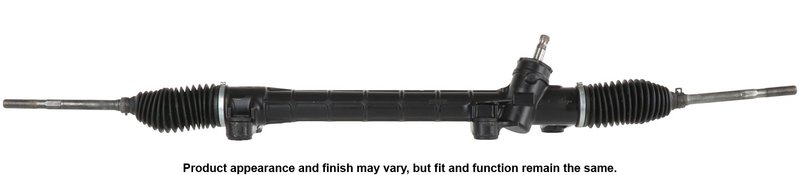

Cardone 1G-2660 Rack and Pinion Assembly
| Brand | Cardone 1G-2660 |
|---|---|
| Bellows Color | BLACK |
| Casting Material | ALUMINUM |
| Distance Between Mounting Holes (in) | 17.313 |
| Distance Between Mounting Holes (mm) | 439.74 |
| E-Waste | NO |
| Gasket or Seal Included | NO |
| Grade Type | Standard Replacement |
| Input Shaft Diameter (in) | 0.592 |
| Input Shaft Diameter (mm) | 15.04 |
| Input Shaft Length (in) | 1.938 |
| Input Shaft Length (mm) | 49.21 |
| Mounting Brackets Included | NO |
| Outer Tie Rods Included | NO |
| Package Contents | Rack and Pinion; Instruction Sheet |
| Product Condition | Remanufactured |
| Rack Length (in) | 43.688 |
| Rack Length (mm) | 1109.66 |
| Steering Rack Color/Finish | BLACK |
| Thread Length (in) | 1.796 |
| Thread Length (mm) | 45.62 |
| Tie Rod Ends Included | INNER |
| Type | Manual |
| Product line | Rack and Pinion Assembly |
| Fits | Toyota · 6 vehicles |
OE direct replacement. Remanufactured to factory standards for a precise fit and dependable performance.
Protective coating. Helps resist corrosion and rust for longer service life.
Specialized lubricant. Applied to extend durability and keep operation smooth.
Cross-references Toyota 4551047020 and Toyota 4551047021 for the same application. See all 2.
Cardone Electronic Power Steering Rack
This Cardone Rack and Pinion Assembly is a remanufactured steering replacement for the 2004-2009 Toyota Prius. Built for electronic power steering systems with a manual rack, Part Number 1G-2660 is engineered to restore precise steering response and dependable on-car communication.
The Cardone rack and pinion line focuses on OE-style fit and remanufactured durability. This unit includes inner tie rods and is finished with a protective black coating to help resist corrosion in daily driving conditions.
Key Features
- Remanufactured original equipment-style rack and pinion assembly
- Fits 2004-2009 Toyota Prius, N/A
- Includes inner tie rods
- All rubber sealing components are replaced
- Specialized lubricant is applied for extended service life
- Factory test drive verifies operation under demanding conditions
- Aluminum casting with black steering rack finish
- Package contents: rack and pinion, instruction sheet
Product Details
Cardone Part Number 1G-2660 is a standard replacement manual rack and pinion assembly for Toyota Prius models from 2004 through 2009. It is remanufactured to rigorous performance standards, with new spool valve seals, rack donut seals, and other rubber sealing components replaced to reduce internal leakage and support consistent steering feel. The unit is also tested to confirm proper communication on vehicles equipped with electronic power steering systems using a manual rack configuration. This part cross-references Toyota 4551047020 and 4551047021 for the same application.
Common Steering Issues It May Address
- Excessive steering play or loose steering feel
- Internal rack leakage from worn seals
- Rough or inconsistent steering response
- Corrosion-related wear on the steering rack housing
- Failure of the original rack and pinion assembly in Prius steering systems
Installation Notes
Fits 2004-2009 Toyota Prius, N/A. Confirm the vehicle uses the correct electronic power steering setup with a manual rack before installation. The assembly includes inner tie rods, but mounting brackets, outer tie rods, and gasket or seal components are not included unless specifically listed. Verify rack length, input shaft dimensions, and mounting hole spacing against the original unit before installation. A professional alignment is recommended after replacement.
Quality Assurance
Each 1G-2660 rack and pinion assembly is remanufactured to CARDONE quality and performance standards and undergoes a factory test drive that simulates extreme operating conditions while checking on-car communications. The remanufacturing process also reduces energy and raw material use compared with producing a new part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2008 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2007 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2006 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2005 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2004 | Toyota | Prius | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
