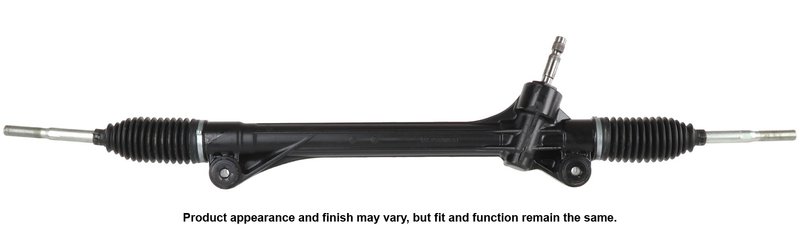

Cardone 1G-2669 Rack and Pinion Assembly
| Brand | Cardone 1G-2669 |
|---|---|
| Bellows Color | BLACK |
| Casting Material | ALUMINUM |
| Distance Between Mounting Holes (in) | 19.063 |
| Distance Between Mounting Holes (mm) | 484.19 |
| E-Waste | NO |
| Gasket or Seal Included | NO |
| Grade Type | Standard Replacement |
| Input Shaft Diameter (in) | 0.668 |
| Input Shaft Diameter (mm) | 16.97 |
| Input Shaft Length (in) | 2.875 |
| Input Shaft Length (mm) | 73.03 |
| Mounting Brackets Included | NO |
| Outer Tie Rods Included | NO |
| Package Contents | Rack and Pinion; Instruction Sheet |
| Product Condition | Remanufactured |
| Rack Length (in) | 44.000 |
| Rack Length (mm) | 1117.60 |
| Steering Rack Color/Finish | BLACK |
| Thread Length (in) | 1.953 |
| Thread Length (mm) | 49.61 |
| Tie Rod Ends Included | INNER |
| Type | Manual |
| Product line | Rack and Pinion Assembly |
| Fits | Toyota · 12 vehicles |
Remanufactured OE replacement. Built to rigorous standards for a precise, reliable fit.
Protective coating. Helps resist corrosion and rust for longer service life.
Specialized lubricant. Applied to extend durability and smooth operation.
Cross-references Toyota 455100E030, Toyota 455100E040 and Toyota 455100E042 for the same application. See all 4.
Cardone Rack and Pinion for Highlander
Restore precise steering response with this remanufactured CARDONE rack and pinion assembly for the Toyota Highlander. Built for 2008-2019 Toyota Highlander applications, Part Number 1G-2669 is a manual rack assembly that includes inner tie rods and is engineered for vehicles using electronic power steering systems with a manual rack configuration.
Key Features
- Remanufactured Original Equipment-style rack and pinion assembly for a direct vehicle fit
- Fits 2008-2019 Toyota Highlander, N/A
- Includes inner tie rods
- Black aluminum housing with protective coating to help resist corrosion and rust
- All rubber sealing components are replaced during remanufacturing
- Specialized lubricant is applied for extended service life
- Factory test drive verifies operation under demanding conditions and checks on-car communications
- Package contents: rack and pinion; instruction sheet
Product Details
Cardone 1G-2669 is part of the Rack and Pinion Assembly line, focused on remanufactured steering components that meet rigorous quality and performance standards. This unit is rebuilt with new premium components, including new spool valve seals and rack donut seals where applicable, to reduce internal leakage and support consistent steering feel. The aluminum casting, black finish, and polished micro-finish sleeves where applicable add durability for daily driving conditions. This part cross-references Toyota OE numbers 455100E030 and 455100E040 for the same application.
What It Helps Address
- Excessive steering play or looseness
- Internal fluid leakage from worn seals
- Rough or inconsistent steering response
- Corrosion-related wear on the steering rack housing
- Noise or binding caused by worn steering rack components
Installation Notes
Verify the vehicle’s steering system configuration before installation. This assembly is listed for 2008-2019 Toyota Highlander models with a manual rack setup and includes inner tie rods, but mounting brackets, outer tie rods, and gasket or seal are not included. Compare the input shaft dimensions, rack length, and mounting hole spacing to the original unit before installation. A professional alignment is recommended after replacement.
Quality Assurance
Each CARDONE electronic power steering rack and pinion undergoes a factory test drive that simulates extreme operating conditions while checking on-car communications. The remanufacturing process replaces all rubber sealing components and uses specialized lubricant to support long-term reliability while reducing raw material and energy use versus manufacturing a new part.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2018 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2017 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2016 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2015 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2014 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2013 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2012 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2011 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2010 | Toyota | Highlander | — | — | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2009 | Toyota | Highlander | 3.5L | V6 | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
| 2008 | Toyota | Highlander | 3.5L | V6 | N/A | Includes inner tie rods; compatible with electronic power steering systems featuring a manual rack.; Rack and Pinion Assembly |
