OE Quality
60-Day Returns

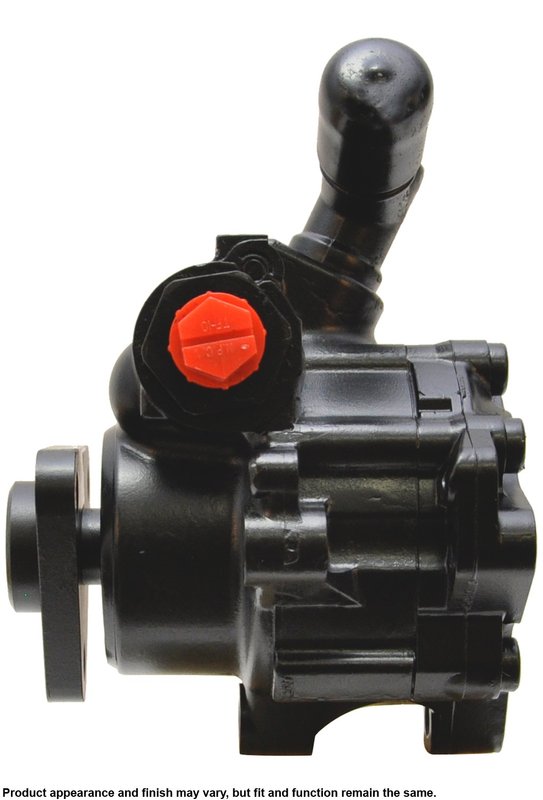

Cardone 20-1075 Power Steering Pump
Overview of Cardone Power Steering Pump 20-1075
The Cardone Power Steering Pump 20-1075 is a remanufactured hydraulic pump designed specifically for Ram ProMaster 1500, 2500, and 3500 models. Engineered with an aluminum housing and equipped with a press-on pulley attachment type, this pump ensures reliable power steering performance for your vehicle.
- Remanufactured power steering pump for Ram ProMaster 1500, 2500, and 3500
- Aluminum housing for durability and heat dissipation
- Press-on pulley attachment type (pulley not included)
- Hose barb inlet and threaded outlet (16x1.5 thread size)
- Includes hydraulic pump, instruction sheet, and sealing kit
- O-ring type hose port for secure connections
- Compatible with remote reservoir systems (reservoir not included)
Detailed Product Description
This Cardone Power Steering Pump 20-1075 is part of the Power Steering Pump brand line, which focuses on remanufactured components designed to meet or exceed OEM specifications. The pump features an aluminum housing that provides strength while helping to dissipate heat generated during operation. It uses a press-on pulley attachment type, allowing for straightforward installation when paired with the correct pulley (not included). The inlet connection is a hose barb type, and the outlet is threaded with a 16x1.5 size, ensuring compatibility with the original power steering system fittings on Ram ProMaster vehicles.
Designed for use with remote reservoir systems, this pump does not include a reservoir or reservoir cap but comes with a sealing kit and detailed instructions to assist with installation. The O-ring hose port type helps maintain a leak-free seal under pressure. This pump is a direct replacement for the original unit, addressing common issues such as whining noises caused by air in the system or debris in the flow control valve bore.
Compatible Vehicles and Applications
- Ram ProMaster 1500
- Ram ProMaster 2500
- Ram ProMaster 3500
Common Issues Addressed by This Power Steering Pump
- Whining or groaning noises from the power steering pump
- Hard steering or lack of assist at low engine RPM
- Leaks or pressure loss due to worn or damaged pump components
- Reduced steering responsiveness or inconsistent assist
- Air trapped in the power steering system causing noise or poor performance
Installation Notes and Tips
- Ensure the pulley from the original pump is reused or replaced as this pump does not include a pulley
- Bleed the power steering system thoroughly to remove air and prevent whining noises
- Use the included sealing kit to ensure all connections are leak-free
- Verify compatibility with your vehicle’s remote reservoir setup before installation
- Follow the instruction sheet carefully for proper mounting and hose attachment
Quality Assurance and Warranty
The Cardone Power Steering Pump 20-1075 is remanufactured to meet strict quality standards, ensuring reliable operation and durability. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or Cardone directly.
| Brand | Cardone |
|---|---|
| Part Number | 20-1075 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet ID Size | 0 |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | Remanufactured |
| Pulley Attachement Type | Press-On |
| Pulley Included | No |
| Remote Reservoir | Yes |
| Reservoir Included | No |
This part fits 24 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Ram | ProMaster 1500 | N/A | Remanufactured Power Steering Pump | ||
| 2021 | Ram | ProMaster 2500 | N/A | Remanufactured Power Steering Pump | ||
| 2021 | Ram | ProMaster 3500 | N/A | Remanufactured Power Steering Pump | ||
| 2020 | Ram | ProMaster 1500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2020 | Ram | ProMaster 2500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2020 | Ram | ProMaster 3500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2019 | Ram | ProMaster 1500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2019 | Ram | ProMaster 2500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2019 | Ram | ProMaster 3500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2018 | Ram | ProMaster 1500 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2018 | Ram | ProMaster 2500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2018 | Ram | ProMaster 3500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2017 | Ram | ProMaster 1500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2017 | Ram | ProMaster 2500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2017 | Ram | ProMaster 3500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2016 | Ram | ProMaster 1500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2016 | Ram | ProMaster 2500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2016 | Ram | ProMaster 3500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2015 | Ram | ProMaster 1500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2015 | Ram | ProMaster 2500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2015 | Ram | ProMaster 3500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2014 | Ram | ProMaster 1500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2014 | Ram | ProMaster 2500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2014 | Ram | ProMaster 3500 | 3.6L | V6 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
