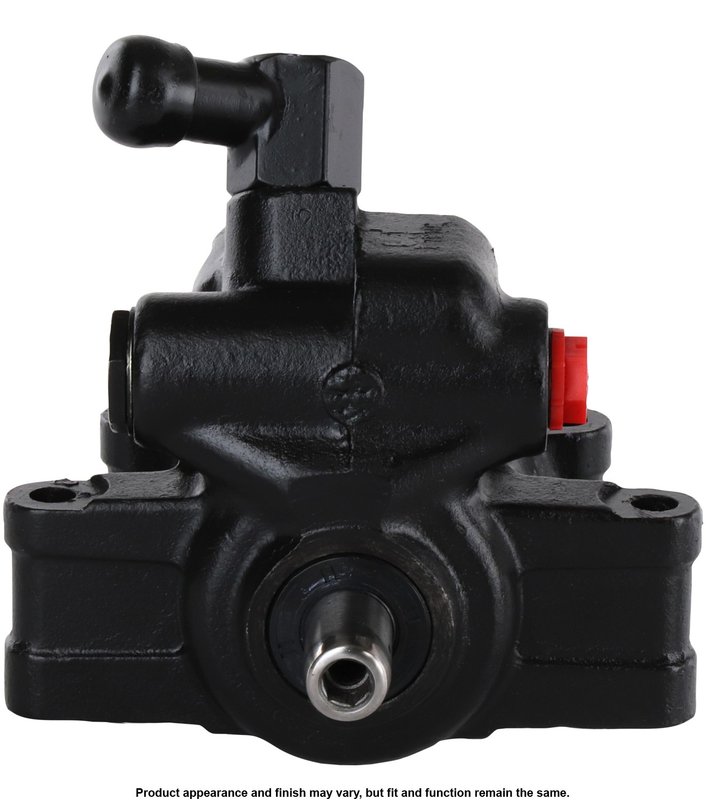

Cardone 20-369 Power Steering Pump

Reliable Power Steering Pump for Ford F-150

The Cardone Power Steering Pump 20-369 is a remanufactured component designed specifically for Ford F-150 models. Engineered to restore proper steering assist, this pump ensures smooth and responsive handling under various driving conditions.

• Remanufactured power steering pump with cast iron housing
• Compatible with Ford F-150 vehicles
• Includes hydraulic pump, instruction sheet, and sealing kit
• Features O-ring hose port type and threaded outlet attachment
• Press-on pulley attachment type (pulley not included)
• Remote reservoir compatible (reservoir not included)

About the Cardone Power Steering Pump Line

The Cardone Power Steering Pump product line focuses on remanufactured steering components that meet or exceed OEM specifications. This line offers reliable hydraulic pumps designed to restore steering performance while maintaining durability. The 20-369 pump is part of this line, providing a cost-effective solution for Ford F-150 owners needing a replacement power steering pump.

Product Details and Specifications

This power steering pump features a durable cast iron housing for long-lasting performance. It uses an O-ring type hose port and a threaded outlet attachment sized 16x1.5 for secure connections. The inlet attachment is a hose barb type, and the pump includes one outlet. The pulley attaches via a press-on method, but the pulley itself is not included. This pump is designed for vehicles with a remote reservoir system; however, the reservoir and reservoir cap are not part of the package. Mounting hardware is also not included, so reuse of existing hardware is necessary.

Common Applications and Issues Addressed

• Restores power steering assist in Ford F-150 trucks
• Eliminates whining noises caused by worn or contaminated pumps
• Resolves hard steering or inconsistent assist at low engine RPM
• Addresses leaks or pressure loss due to faulty pump seals
• Improves steering response and fluid circulation in the power steering system

Installation Notes and Tips

When installing the Cardone 20-369 power steering pump, ensure the pulley is compatible and properly installed, as the pulley is not included. Use the provided sealing kit to prevent leaks at hose connections. Since mounting hardware is not included, retain original bolts and brackets. It is recommended to inspect and flush the power steering fluid to avoid contamination that can damage the new pump. Follow the included instruction sheet carefully for torque specifications and hose attachment procedures.

Quality Assurance and Warranty

This remanufactured power steering pump undergoes thorough testing to meet performance standards. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. For specific warranty details, refer to Cardone’s official documentation or contact the manufacturer directly.
