OE Quality
60-Day Returns

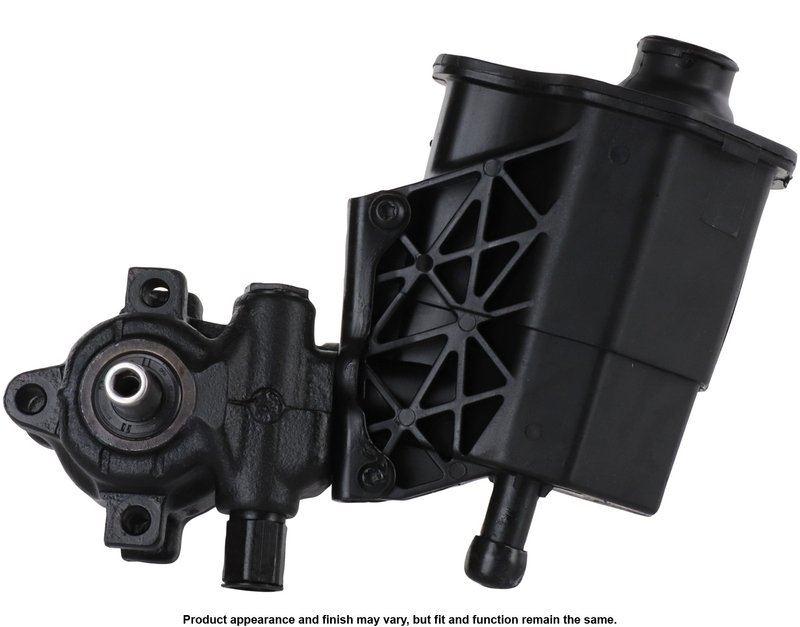

Cardone 20-70269 Power Steering Pump
Overview of Cardone Power Steering Pump 20-70269
The Cardone Power Steering Pump 20-70269 is a remanufactured hydraulic pump designed specifically for Dodge Ram 1500 models. This power steering pump ensures reliable steering assist by maintaining proper hydraulic pressure within the steering system.
- Remanufactured power steering pump for Dodge Ram 1500
- Cast iron housing for durability and strength
- Includes hydraulic pump, instruction sheet, and sealing kit
- O-ring hose port type with threaded outlet attachment
- Press-on pulley attachment type (pulley not included)
- Power steering pump inlet with hose barb connection
- Compatible with power steering outlet thread size 16x1.5
- Reservoir included, remote reservoir not included
- Mounting hardware not included
About the Cardone Power Steering Pump Product Line
The Cardone Power Steering Pump line focuses on remanufactured components that meet or exceed original equipment specifications. This product line is engineered to restore proper steering function and hydraulic pressure control, providing a cost-effective alternative to new pumps. The 20-70269 model is part of this line, offering a reliable replacement option for Dodge Ram 1500 owners requiring a durable and efficient power steering pump.
Detailed Product Description
This Cardone power steering pump features a cast iron housing that provides structural integrity and resistance to wear. The pump includes a hydraulic unit, a sealing kit, and an instruction sheet to assist with installation. It uses an O-ring type hose port and a threaded outlet attachment with a 16x1.5 thread size, ensuring compatibility with the Dodge Ram 1500’s steering system. The inlet connection is a hose barb type, and the pulley attachment is press-on style, although the pulley itself is not included. The pump comes with an integrated reservoir but does not include a remote reservoir or mounting hardware.
Common Applications and Issues Addressed
- Restores power steering assist in Dodge Ram 1500 models
- Eliminates whining noises caused by worn or failing pumps
- Resolves hard steering or inconsistent assist during engine rpm changes
- Addresses fluid flow issues due to debris in the flow control valve bore
- Corrects steering difficulties related to cracked or damaged pulleys
Installation Notes and Tips
- Ensure the original pulley is inspected for damage; replacement pulley may be required
- Use the included sealing kit to prevent leaks during installation
- Check power steering fluid condition and replace fluid if recommended by the vehicle manufacturer
- Verify hose connections match the O-ring and hose barb fittings for a secure seal
- Mounting hardware is not included; retain original hardware or source separately
Quality Assurance and Warranty
The Cardone Power Steering Pump 20-70269 is remanufactured to meet OEM standards, ensuring reliable performance and durability. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or Cardone directly for exact warranty terms.
| Brand | Cardone |
|---|---|
| Part Number | 20-70269 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Housing Material | Cast Iron |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet ID Size | 0 |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | Remanufactured |
| Pulley Attachement Type | Press-On |
| Pulley Included | No |
| Remote Reservoir | No |
| Reservoir Included | Yes |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Dodge | Ram 1500 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump | ||
| 2006 | Dodge | Ram 1500 | 4.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2006 | Dodge | Ram 1500 | 5.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2006 | Dodge | Ram 1500 | 3.7L | V6 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2005 | Dodge | Ram 1500 | 4.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2005 | Dodge | Ram 1500 | 5.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2005 | Dodge | Ram 1500 | 3.7L | V6 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2004 | Dodge | Ram 1500 | 4.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2004 | Dodge | Ram 1500 | 5.7L | V8 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2004 | Dodge | Ram 1500 | 3.7L | V6 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
| 2003 | Dodge | Ram 1500 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump | ||
| 2002 | Dodge | Ram 1500 | N/A | with Snap-Ring Retained Backplate; Except ZF Pump; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
