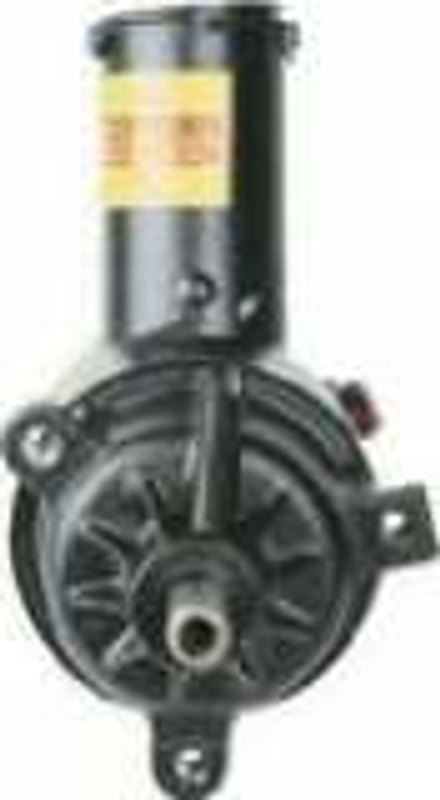

Cardone 20-7270 Power Steering Pump
Reliable Power Steering Pump for Ford and Mercury Vehicles
The Cardone Power Steering Pump 20-7270 is designed to restore smooth steering performance in select Ford and Mercury models. This remanufactured pump offers a durable aluminum housing and precise fitment for vehicles like the Ford F-100 Ranger, Mustang, Ranger, Tempo, and Mercury Topaz.
- Remanufactured power steering pump with aluminum housing
- Compatible with Ford and Mercury models including F-100 Ranger, Mustang, Ranger, Tempo, and Topaz
- Includes hydraulic pump, instruction sheet, and sealing kit
- Features hose barb inlet and threaded outlet (16x1.5 thread size)
- Press-on pulley attachment type; pulley not included
- O-ring type hose port for secure connections
- Reservoir included; remote reservoir and reservoir cap not included
- Mounting hardware not included
About the Cardone Power Steering Pump Line
The Cardone Power Steering Pump line focuses on remanufactured components engineered to meet or exceed original equipment specifications. This product line emphasizes quality materials such as aluminum housings and precise attachment types to ensure compatibility and durability. The 20-7270 pump is part of this line, providing a reliable replacement option for power steering systems in specific Ford and Mercury vehicles.
Product Details and Specifications
This power steering pump features a hose barb inlet attachment and a threaded outlet with a 16x1.5 thread size, designed for secure hydraulic connections. The pump includes a sealing kit and instruction sheet to assist with installation. The pulley attachment is press-on style, but the pulley itself is not included, so reusing the original pulley is necessary. The pump housing is made from aluminum, offering corrosion resistance and strength. The included reservoir supports hydraulic fluid storage, though the reservoir cap and remote reservoir are not part of this package.
Common Applications and Issues Addressed
- Restores power assist in steering systems for Ford F-100 Ranger and Mustang models
- Eliminates whining noises caused by air in the power steering system
- Resolves hard steering or inconsistent assist during engine rpm changes
- Addresses fluid flow issues related to debris in the flow control valve bore
- Replaces worn or damaged pumps in Mercury Tempo and Topaz vehicles
Installation Notes and Tips
When installing the Cardone 20-7270 power steering pump, ensure the original pulley is inspected for cracks or damage, as the pulley is not included with this pump. Bleed the power steering system thoroughly to remove air and prevent whining noises. Use the included sealing kit to ensure leak-free connections at the hose barb inlet and threaded outlet. Note that mounting hardware is not included, so retain or replace existing hardware as needed.
Quality Assurance and Warranty
This remanufactured power steering pump undergoes rigorous testing to meet performance standards consistent with original equipment. Cardone provides a warranty on this product to cover defects in materials and workmanship, supporting reliable operation in compatible Ford and Mercury vehicles.
| Brand | Cardone |
|---|---|
| Part Number | 20-7270 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet ID Size | 0 |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | Remanufactured |
| Pulley Attachement Type | Press-On |
| Pulley Included | No |
| Remote Reservoir | No |
| Reservoir Included | Yes |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Ford | F-100 Ranger | 2.3L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1997 | Ford | Ranger | 2.3L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1996 | Ford | F-100 Ranger | 2.3L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1996 | Ford | Ranger | 2.3L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1995 | Ford | Mustang | 5.0L | V8 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1995 | Ford | Mustang | 5.8L | V8 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1995 | Ford | Ranger | 2.3L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1994 | Ford | Mustang | 5.0L | V8 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
| 1991 | Ford | Tempo | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 1991 | Mercury | Topaz | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 1990 | Ford | Tempo | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 1990 | Mercury | Topaz | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
