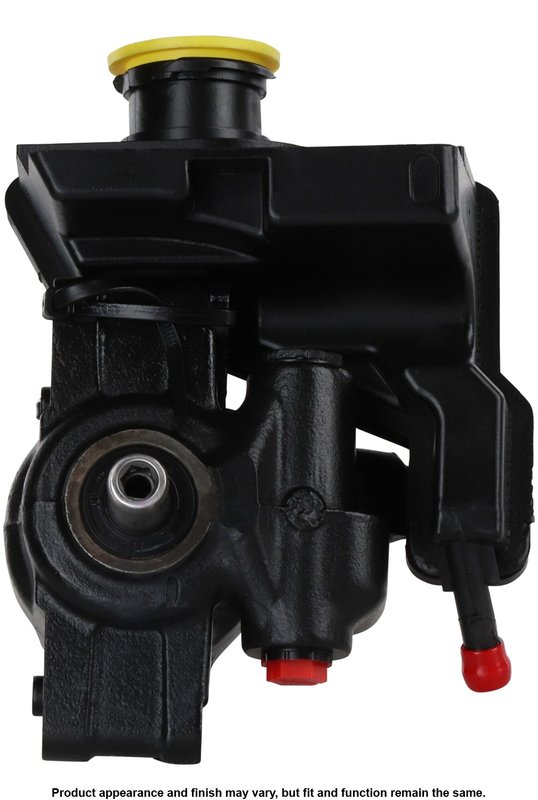

Cardone 20-74326 Power Steering Pump
Overview of Cardone Power Steering Pump 20-74326
The Cardone Power Steering Pump 20-74326 is a remanufactured hydraulic pump designed specifically for Ford Focus and Transit Connect models. Engineered to restore proper steering assist, this pump ensures reliable performance and compatibility with your vehicle's power steering system.
- Remanufactured power steering pump with cast iron housing
- Includes hydraulic pump, instruction sheet, and sealing kit
- Compatible with Ford Focus and Transit Connect models
- Features hose barb inlet and threaded outlet attachment
- O-ring type hose port for secure connections
- Press-on pulley attachment (pulley not included)
- Power steering outlet thread size: 16x1.5
- Reservoir included; remote reservoir and reservoir cap not included
- Mounting hardware not included
Product Line Details: Cardone Power Steering Pump
The Cardone Power Steering Pump line focuses on remanufactured components that meet or exceed original equipment specifications. This product line emphasizes durability and precise fitment, providing a cost-effective solution for restoring power steering functionality in compatible vehicles. The 20-74326 pump is part of this line, offering a reliable replacement option for Ford Focus and Transit Connect models.
Detailed Product Description
This remanufactured power steering pump features a robust cast iron housing designed to withstand the rigors of daily driving. The pump includes a hose barb inlet and a threaded outlet attachment, ensuring secure and leak-free connections within the power steering system. The O-ring type hose port further enhances sealing reliability. While the pulley is not included, the pump uses a press-on pulley attachment type compatible with original equipment pulleys. The package contains the hydraulic pump, an instruction sheet for installation guidance, and a sealing kit to assist with proper assembly.
Common Applications and Issues Addressed
- Restores power steering assist in Ford Focus and Transit Connect vehicles
- Eliminates whining noises caused by air or contamination in the system
- Resolves hard steering or inconsistent assist during engine rpm changes
- Addresses leaks or pressure loss due to worn or damaged pumps
- Improves steering response and fluid circulation within the power steering system
Installation Notes and Tips
- Ensure the original pulley is compatible or transfer it to the new pump, as the pulley is not included
- Use the included sealing kit to prevent leaks at hose connections
- Bleed the power steering system properly to remove air and avoid whining noises
- Check for contamination in the system before installation to prevent premature pump failure
- Mounting hardware is not included; reuse original hardware or source separately
Quality Assurance and Warranty
The Cardone Power Steering Pump 20-74326 is remanufactured to meet strict quality standards, ensuring reliable operation and fitment. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship. Refer to Cardone's official documentation for exact warranty terms.
| Brand | Cardone |
|---|---|
| Part Number | 20-74326 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Housing Material | Cast Iron |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet ID Size | 0 |
| Power Steering Outlet Thread Size | 16x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose Barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | Remanufactured |
| Pulley Attachement Type | Press-On |
| Pulley Included | No |
| Remote Reservoir | No |
| Reservoir Included | Yes |
This part fits 19 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Ford | Focus | S | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2011 | Ford | Focus | SEL | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2011 | Ford | Focus | SES | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2011 | Ford | Focus | SE | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2011 | Ford | Transit Connect | 2.0L | L4 | N/A | Before 01/17/2011; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump | |
| 2010 | Ford | Focus | S | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2010 | Ford | Focus | SEL | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2010 | Ford | Focus | SES | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2010 | Ford | Focus | SE | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2010 | Ford | Transit Connect | 2.0L | L4 | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | |
| 2009 | Ford | Focus | S | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2009 | Ford | Focus | SEL | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2009 | Ford | Focus | SES | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2009 | Ford | Focus | SE | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2008 | Ford | Focus | S | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2008 | Ford | Focus | SES | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2008 | Ford | Focus | SE | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | ||
| 2007 | Ford | Focus | N/A | Reservoir included, in-line filter optional, install filter and use OE fluid for warranty, flush system.; Power Steering Pump | |||
| 2006 | Ford | Focus | N/A | From 10/03/2005; Reservoir Included; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
