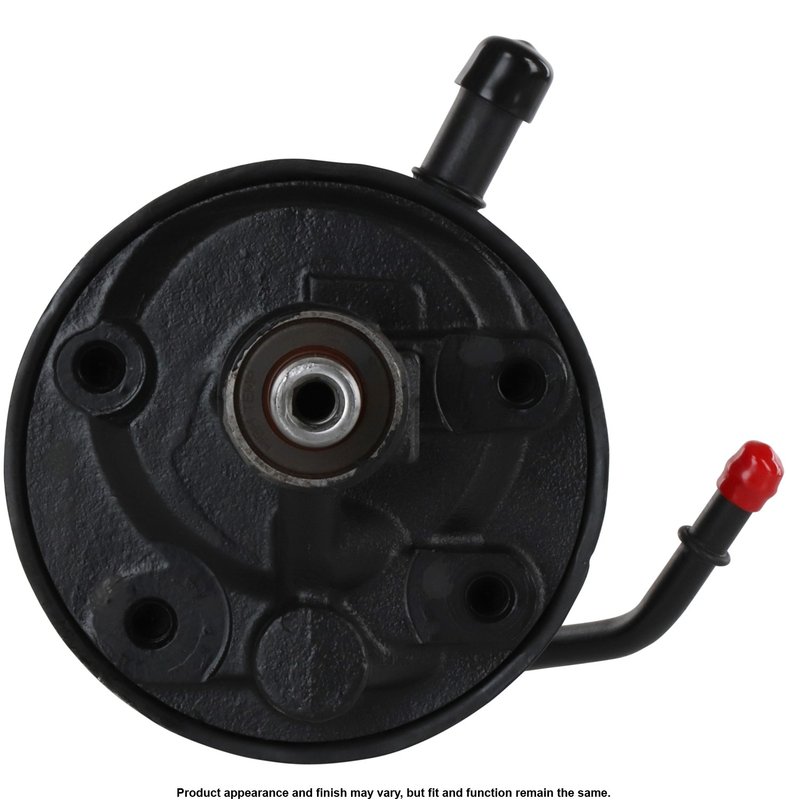

Cardone 20-7956 Power Steering Pump

Overview of Cardone Power Steering Pump 20-7956

The Cardone Power Steering Pump 20-7956 is a remanufactured hydraulic pump designed for reliable steering performance. It is compatible with Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models, providing consistent power assist for heavy-duty vehicles.

• Remanufactured power steering pump with cast iron housing
• Includes hydraulic pump, instruction sheet, and sealing kit
• O-ring hose port type for secure connections
• Threaded outlet attachment with 16x1.5 thread size
• Press-on pulley attachment type (pulley not included)
• Compatible with Chevrolet Express and GMC Savana 2500/3500 series
• Power steering reservoir included, remote reservoir not included

Cardone Power Steering Pump Product Line Details

The Cardone Power Steering Pump line focuses on remanufactured components engineered to meet or exceed original equipment specifications. This product line emphasizes durability and precise fitment, using quality materials such as cast iron housings and reliable attachment types like hose barb inlets and threaded outlets. The 20-7956 pump is part of this line, offering a balance of performance and value for Chevrolet and GMC full-size vans.

Product Description and Features

This power steering pump features a cast iron housing for strength and longevity. It uses an O-ring type hose port to ensure leak-free connections and a threaded outlet attachment sized at 16x1.5 for compatibility with factory steering systems. The inlet attachment is a hose barb type, facilitating straightforward installation. The pump includes a power steering reservoir but does not come with a pulley or mounting hardware, so those components must be sourced separately. The pulley attachment is press-on style, which is common for these vehicle models.

Common Applications and Problem Resolution

• Restores power assist in Chevrolet Express 2500 and 3500 models
• Resolves hard steering issues in GMC Savana 2500 and 3500 vans
• Eliminates whining noises caused by worn or failing pumps
• Addresses fluid flow problems due to debris in the flow control valve bore
• Improves steering response when original pump performance declines

Installation Notes and Tips

When installing the Cardone 20-7956 power steering pump, ensure the pulley is compatible and properly installed since it is not included. Use the provided sealing kit to prevent leaks at connection points. Verify that the hose connections match the O-ring and hose barb types specified. It is recommended to inspect and, if necessary, replace power steering fluid during installation to maintain system health. Mounting hardware is not included, so retain original bolts or acquire appropriate replacements.

Quality Assurance and Warranty

This remanufactured power steering pump undergoes thorough testing to meet performance standards consistent with original equipment. Cardone provides a warranty covering defects in materials and workmanship, supporting reliability for Chevrolet Express and GMC Savana vehicles. Proper installation and maintenance will help ensure long service life.
