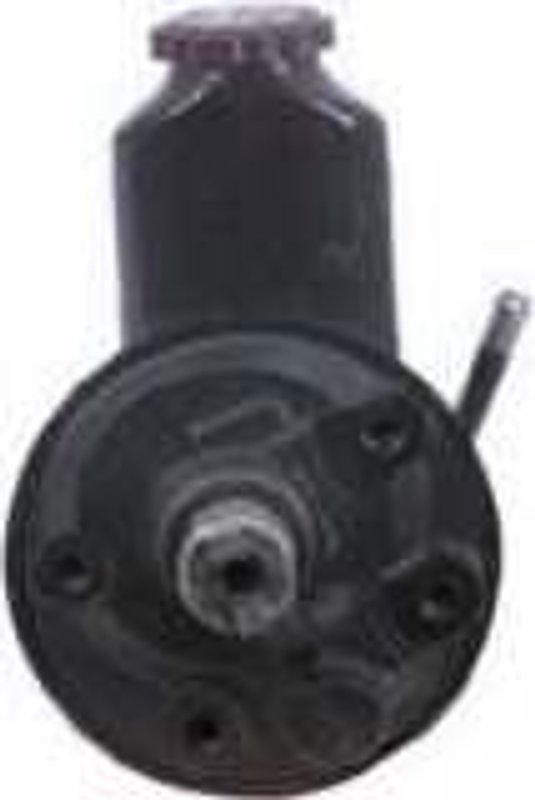

Cardone 20-8001 Power Steering Pump

Reliable Power Steering Pump for Dodge D250 and Ram Models

The Cardone Power Steering Pump 20-8001 is a remanufactured hydraulic pump designed to restore smooth steering performance in select Dodge and Ram trucks. Engineered for durability, this pump is compatible with Dodge D250, D350, Ram 2500, Ram 3500, W250, and W350 models, providing a precise fit and reliable operation.

• Remanufactured power steering pump with cast iron housing for strength
• Includes hydraulic pump, instruction sheet, and sealing kit for installation
• Compatible with Dodge D250, D350, Ram 2500, Ram 3500, W250, and W350
• Features O-ring hose port type and threaded outlet attachment (16x1.5 thread size)
• Press-on pulley attachment type; pulley not included
• Reservoir included; remote reservoir and reservoir cap not included
• Power steering pump inlet uses hose barb attachment
• Mounting hardware not included

About the Cardone Power Steering Pump Line

The Cardone Power Steering Pump product line focuses on remanufactured components that meet or exceed original equipment specifications. This line is designed to provide reliable hydraulic pressure and assist in steering for heavy-duty trucks. The 20-8001 model exemplifies Cardone's approach by combining durable cast iron housing with precise inlet and outlet fittings to ensure compatibility and performance in Dodge and Ram trucks.

Product Details and Specifications

This remanufactured power steering pump features a cast iron housing for enhanced durability under demanding conditions. The pump includes a hydraulic unit, an instruction sheet, and a sealing kit to facilitate proper installation. It uses an O-ring type hose port and a threaded outlet with a 16x1.5 thread size, ensuring a secure connection to the power steering system. The inlet attachment is a hose barb type, while the outlet is threaded. The pump is designed with a press-on pulley attachment, but the pulley itself is not included. A reservoir is included with the pump, but no remote reservoir or reservoir cap is provided. Mounting hardware is not part of the package and must be sourced separately.

Common Applications and Problem Resolution

• Restores power steering assist in Dodge D250, D350, Ram 2500, Ram 3500, W250, and W350 trucks
• Eliminates whining noises caused by air or contamination in the steering system
• Addresses hard steering issues, especially when assist is only present at higher engine RPMs
• Replaces pumps with worn or enlarged input shafts that cause pulley misalignment
• Solves problems related to contamination in the pressure hose or steering unit

Installation Notes and Tips

Before installation, ensure the power steering system is properly flushed to remove air and contaminants that can cause pump noise or failure. The included sealing kit should be used to prevent leaks at connection points. Since mounting hardware and pulley are not included, verify compatibility with existing components or acquire replacements as needed. Follow the instruction sheet carefully to align the press-on pulley correctly and secure all hose connections using the O-ring and threaded fittings. Regularly check fluid levels and condition to maintain optimal pump performance.

Quality Assurance and Warranty

This Cardone Power Steering Pump 20-8001 is remanufactured to meet original equipment standards, ensuring reliable operation and durability. While specific warranty details are not provided here, Cardone typically offers coverage on remanufactured parts to protect against defects in materials and workmanship. It is recommended to consult the product documentation or Cardone directly for exact warranty terms.
