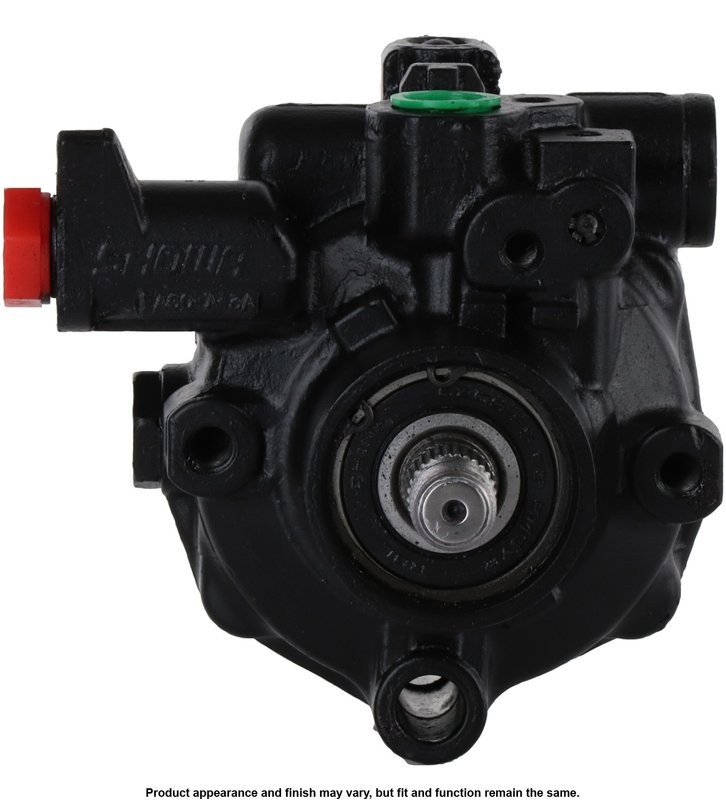

Cardone 21-5196 Power Steering Pump
Overview of Cardone Power Steering Pump 21-5196
The Cardone Power Steering Pump 21-5196 is a remanufactured hydraulic pump designed for select Subaru models including Forester, Impreza, Legacy, Outback, and WRX. This pump provides reliable power steering assistance to maintain smooth and responsive steering performance.
- Remanufactured power steering pump for Subaru vehicles
- Aluminum housing for durability and heat dissipation
- Includes hydraulic pump, instruction sheet, and sealing kit
- Hose barb inlet and threaded outlet attachment types
- Compatible with remote reservoir systems
- Bolt-on pulley attachment (pulley not included)
- Power steering outlet thread size 14x1.5
- Washer type hose port for secure connections
About the Cardone Power Steering Pump Product Line
The Cardone Power Steering Pump line focuses on remanufactured components that meet or exceed original equipment specifications. These pumps are engineered to restore proper steering function and fluid flow in vehicles requiring replacement parts. The 21-5196 model is part of this line, offering a balance of quality and value for Subaru power steering systems.
Detailed Product Description
This Cardone power steering pump features an aluminum housing that provides strength while helping to dissipate heat generated during operation. The pump is designed with a hose barb inlet and a threaded outlet (14x1.5 thread size) to ensure secure fluid connections. It supports remote reservoir configurations but does not include the reservoir or pulley. The pulley attachment is bolt-on type, allowing for straightforward installation when reusing the original pulley. The package includes the hydraulic pump, a sealing kit, and an instruction sheet to assist with installation.
Common Applications and Issues Addressed
- Restores power steering assist in Subaru Forester, Impreza, Legacy, Outback, and WRX models
- Eliminates whining noises caused by worn or failing pumps
- Resolves hard steering or inconsistent assist at low engine RPM
- Addresses fluid flow issues due to debris in the flow control valve bore
- Corrects problems related to enlarged input shaft ends or damaged pump components
Installation Notes and Tips
- Ensure the original pulley is compatible and properly installed, as the pulley is not included
- Use the included sealing kit to prevent leaks at hose connections
- Verify hose port type matches the washer style for proper fitment
- Check power steering fluid condition and replace fluid if recommended by the vehicle manufacturer
- Follow the instruction sheet carefully to avoid installation errors
Quality Assurance and Warranty
The Cardone Power Steering Pump 21-5196 is remanufactured to meet OEM standards, ensuring reliable performance and durability. While specific warranty details are not provided here, Cardone typically offers limited warranties on their remanufactured parts. It is recommended to verify warranty coverage with the point of purchase or manufacturer documentation.
| Brand | Cardone |
| Part Number | 21-5196 |
| Position | Power Steering Pump |
| E-Waste | No |
| Hose Port Type | Washer |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Package Contents | Hydraulic Pump; Instruction Sheet; Sealing Kit |
| Power Steering Outlet ID Size | 0 |
| Power Steering Outlet Thread Size | 14x1.5 |
| Power Steering Pump Inlet Attachement Type | Hose barb |
| Power Steering Pump Outlet Attachment Type | Threaded |
| Power Steering Reservoir Cap Included | No |
| Product Condition | Remanufactured |
| Pulley Attachement Type | Bolt-On |
| Pulley Included | No |
| Remote Reservoir | Yes |
| Reservoir Included | No |
This part fits 25 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2014 | Subaru | WRX | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2013 | Subaru | Forester | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2013 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2013 | Subaru | WRX | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2012 | Subaru | Forester | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2012 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2012 | Subaru | WRX | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2011 | Subaru | Forester | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2011 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2010 | Subaru | Forester | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2010 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2009 | Subaru | Forester | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2009 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2009 | Subaru | Legacy | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2009 | Subaru | Outback | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2008 | Subaru | Impreza | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2008 | Subaru | Legacy | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2008 | Subaru | Outback | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2007 | Subaru | Legacy | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2007 | Subaru | Outback | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2006 | Subaru | Legacy | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2006 | Subaru | Outback | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
| 2005 | Subaru | Legacy | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump | ||
| 2005 | Subaru | Outback | 2.5L | H4 | N/A | Reservoir not included, in-line filter, OE fluid & system flush required for warranty.; Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
