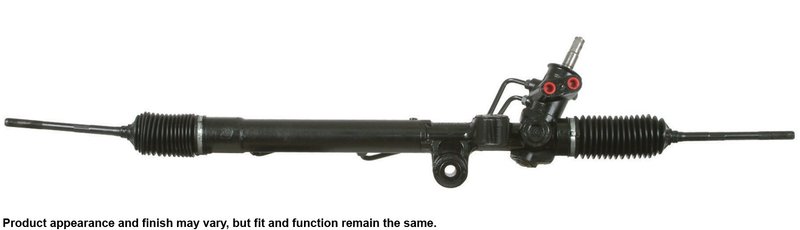

Cardone 22-1021 Rack and Pinion Assembly

Overview of Cardone Rack and Pinion Assembly 22-1021

The Cardone Rack and Pinion Assembly 22-1021 is a remanufactured steering component designed for Chevrolet Canyon, GMC Colorado, and Isuzu i-280 models. Engineered with durable steel and aluminum casting materials, this assembly ensures reliable steering performance and precise handling.

• Remanufactured rack and pinion assembly with included rubber bushing and installation kit
• Constructed from steel and aluminum for strength and corrosion resistance
• Compatible with Chevrolet Canyon, GMC Colorado, and Isuzu i-280 vehicles
• Includes tie rod ends for a complete steering solution
• Features O-ring type hose ports and precise mounting hole spacing (2.25 inches / 57.15 mm)
• Input shaft diameter of 0.75 inches (18.92 mm) and length of 2.38 inches (60.33 mm)
• Rack length measures 46.25 inches (1174.75 mm) with 3 total turns lock to lock

Detailed Product Description

This Cardone Rack and Pinion Assembly 22-1021 belongs to the Rack and Pinion Assembly product line, which focuses on remanufactured steering gear components designed to restore factory steering feel and performance. The assembly is built with a combination of steel and aluminum casting materials, providing a balance of durability and weight savings. It includes all necessary components such as rubber bushings, tie rod ends, and an installation kit to facilitate a straightforward replacement process.

The assembly features a 2.25-inch distance between mounting holes, ensuring proper fitment and secure installation. The input shaft diameter and length are precisely engineered to match OEM specifications, supporting smooth steering input transfer. Hose ports utilize O-ring seals to maintain hydraulic integrity and prevent leaks. The rack length of 46.25 inches and 3 turns lock to lock provide responsive steering control tailored for the specified vehicle models.

Compatible Vehicles and Common Applications

• Replacement for worn or leaking rack and pinion assemblies on Chevrolet Canyon models
• Restores steering precision and reduces play in GMC Colorado vehicles
• Addresses steering issues such as hard steering during initial driving in Isuzu i-280
• Solves symptoms like steering not returning to center after turns
• Helps eliminate power steering pump whining caused by air in the system

Installation Notes and Tips

Installation of the Cardone 22-1021 rack and pinion assembly should be performed by a qualified technician familiar with hydraulic steering systems. Ensure all mounting holes align correctly with the vehicle chassis using the 2.25-inch spacing as a guide. Replace all included rubber bushings and tie rod ends to maintain proper steering geometry. Bleed the power steering system thoroughly after installation to remove air and prevent pump noise or steering stiffness. Follow the included instruction sheet carefully for torque specifications and hose port connections.

Quality Assurance and Warranty

This remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, ensuring dependable performance for Chevrolet Canyon, GMC Colorado, and Isuzu i-280 owners. Using this assembly helps maintain steering system integrity and vehicle safety.
