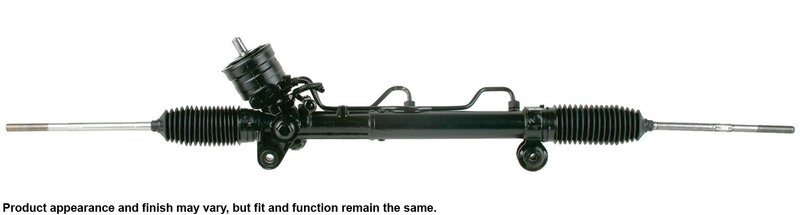

Cardone 22-1034 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 22-1034
The Cardone Rack and Pinion Assembly 22-1034 is a remanufactured steering component designed specifically for Buick DTS and Cadillac Lucerne models. Engineered with durable steel and aluminum casting materials, this assembly ensures reliable steering performance and precise handling.
- Remanufactured rack and pinion assembly with included sealing kit and instruction sheet
- Constructed from steel and aluminum for strength and corrosion resistance
- Compatible with Buick DTS and Cadillac Lucerne vehicles
- Includes tie rod ends for a complete steering solution
- Features O-ring hose ports and standard pressure and return port thread sizes (M18 x 1.5 and M16 x 1.5)
- Input shaft diameter of 0.66 inches and length of 1.13 inches
- Rack length measures 50.63 inches with 2.25 total turns lock to lock
- Distance between mounting holes is 16.75 inches (425.45 mm) with two mounting holes
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering gear components that meet or exceed OEM specifications. This line provides a cost-effective alternative to new parts while maintaining quality and fitment accuracy. The assemblies come complete with necessary seals and tie rod ends, facilitating straightforward installation and restoring proper steering function for compatible vehicles.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 22-1034) is designed to restore steering precision and responsiveness in Buick DTS and Cadillac Lucerne models. The assembly features a robust steel and aluminum casting that balances durability with weight considerations. Its black steering rack finish offers corrosion resistance. The included tie rod ends and sealing kit ensure a comprehensive replacement solution. The input shaft dimensions and mounting hole spacing are engineered to match factory specifications, ensuring proper fit and function.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving, often referred to as "morning sickness"
- Power steering pump whining caused by air in the system after rack replacement
- Steering not returning to center after turns due to worn or faulty rack components
- Loose or imprecise steering feel resulting from damaged rack and pinion assembly
- Leaks or loss of hydraulic pressure in the steering system
Installation Notes and Tips
- Ensure all mounting holes align precisely with vehicle chassis points (16.75 inches apart)
- Use the included sealing kit to prevent leaks and maintain hydraulic pressure
- Check input shaft diameter (0.66 inches) and length (1.13 inches) for compatibility
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Verify tie rod ends are securely installed and properly torqued
Quality Assurance and Warranty
The Cardone Rack and Pinion Assembly 22-1034 is remanufactured to meet OEM standards, ensuring reliable performance and durability. Each unit undergoes rigorous testing to verify functionality and fitment. This product includes a warranty that covers defects in materials and workmanship, providing confidence in your steering system replacement.
| Brand | Cardone |
| Part Number | 22-1034 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 16.75 |
| Distance Between Mounting Holes (mm) | 425.45 |
| E-Waste | Yes |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.66 |
| Input Shaft Diameter (mm) | 16.76 |
| Input Shaft Length (in) | 1.13 |
| Input Shaft Length (mm) | 28.58 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 50.63 |
| Rack Length (mm) | 1285.88 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.38 |
| Thread Length (mm) | 60.33 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.25 |
This part fits 15 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2011 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2010 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2010 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2009 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2009 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2008 | Buick | Lucerne | 4.6L | V8 | N/A | with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2008 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2008 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2007 | Buick | Lucerne | 4.6L | V8 | N/A | with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2007 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2007 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2006 | Buick | Lucerne | 4.6L | V8 | N/A | with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2006 | Cadillac | DTS | N/A | without Hearse Conversion Package (B9Q); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly | ||
| 2006 | Cadillac | DTS | N/A | without Limo Package (V4U); with 17" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
