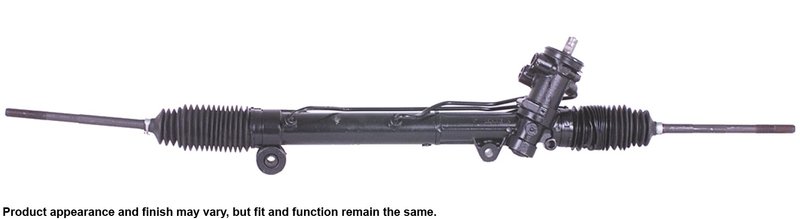

Cardone 22-155 Rack and Pinion Assembly
OE Quality 60-Day Returns
Cardone
 Rack and Pinion Assembly

Cardone 22-155 Rack and Pinion Assembly

Brand Cardone 22-155
Casting Material Steel; Aluminum
Distance Between Mounting Holes (in) 12.38
Distance Between Mounting Holes (mm) 314.33
E-Waste No
Hose Port Type O-Ring
Input Shaft Diameter (in) 0.66
Input Shaft Diameter (mm) 16.76
Input Shaft Length (in) 1.13
Input Shaft Length (mm) 28.58
Number of Mounting Holes 2
Package Contents Rack and Pinion, Mounting Bushing Assembly, Sealing Kit, Instruction Sheet
Pressure Port Thread Size M18 x 1.5
Product Condition Remanufactured
Rack Length (in) 45.13
Rack Length (mm) 1146.18
Return Port Thread Size M16 x 1.5
Steering Rack Color Black
Thread Length (in) 2.38
Thread Length (mm) 60.33
Tie Rod Ends Included Yes
Total Turns Lock to Lock 2.75
Product line Rack and Pinion Assembly
Fits Chevrolet and Pontiac · 22 vehicles

Remanufactured OE part. Delivers a perfect fit with factory-tested performance.

New sealing components. Replaced seals help eliminate internal leaks and keep steering reliable.

Protective coating. Helps resist corrosion and rust for longer service life.

Cross-references Chevrolet 26049323, Chevrolet 26055742 and Chevrolet 26057934 for the same application. See all 11.

$211.76Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $211.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Rack and Pinion Assembly options

Electronic Power Steering Rack for Cavalier and Sunfire

Cardone 22-155 is a remanufactured electronic power steering rack and pinion assembly built for direct replacement service on select Chevrolet Cavalier and Pontiac Sunfire applications. It is rebuilt with new premium components, tested under simulated driving conditions, and finished for corrosion resistance.

Key Features

  • Remanufactured Original Equipment-style rack and pinion assembly for accurate vehicle fit
  • Fits 1995-2005 Chevrolet Cavalier and 1995-2005 Pontiac Sunfire
  • New spool valve seals and rack donut seals installed where applicable
  • 100% replacement of rubber sealing components
  • Specialized lubricant applied for extended service life
  • Protective coating helps resist rust and corrosion
  • Factory test drive verifies operation and on-car communications
  • Package contents include rack and pinion, mounting bushing assembly, sealing kit, and instruction sheet

Product Details

This Cardone Rack and Pinion Assembly, part number 22-155, is engineered for steering systems that require a precise OE-style replacement. The unit uses steel and aluminum construction, O-ring hose ports, M18 x 1.5 pressure port threads, and M16 x 1.5 return port threads. It measures 45.13 inches in rack length, has a 2.75 total turns lock to lock, and includes tie rod ends. Cardone’s remanufacturing process replaces sealing components, applies specialized lubricant, and verifies performance through factory testing to support consistent steering response in daily driving.

Cardone’s rack and pinion product line focuses on remanufactured steering assemblies built to restore factory fit and function. This part cross-references Chevrolet and Pontiac OE numbers such as 26049323 and 26057934 for the same application.

Common Repair Symptoms

  • Steering effort is high during the first few minutes of driving
  • Power steering pump whine caused by air in the hydraulic system
  • Steering does not return to center after a turn
  • Internal bypass from worn spool valve sealing surfaces
  • Fluid leaks from worn rack seals or sealing rings

Installation Notes

  • Fits 1995-2005 Chevrolet Cavalier, N/A
  • Fits 1995-2005 Pontiac Sunfire, N/A
  • Install an in-line filter and use OE fluid
  • Flush the hydraulic power steering system during installation
  • Bleed the system completely to remove trapped air
  • Check front-end alignment and inspect the return line if steering does not self-center

Quality Assurance

Each unit is remanufactured to rigorous quality and performance standards and undergoes a factory test drive to confirm operation under demanding conditions. All rubber sealing components are replaced, and the assembly is finished with protective coating to help extend service life.

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2005ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2005PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2004ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2004PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2003ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2003PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2002ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2002PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2001ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2001PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2000ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
2000PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1999ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1999PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1998ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1998PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1997ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1997PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1996ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1996PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1995ChevroletCavalierN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
1995PontiacSunfireN/AInstall in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Chevrolet — 26049323Chevrolet — 26055742Chevrolet — 26057934Chevrolet — 26058681Chevrolet — 26068964Chevrolet — 26068967Pontiac — 26049323Pontiac — 26057934Pontiac — 26058681Pontiac — 26068964Pontiac — 26068967
