CardonePart #: 22-182

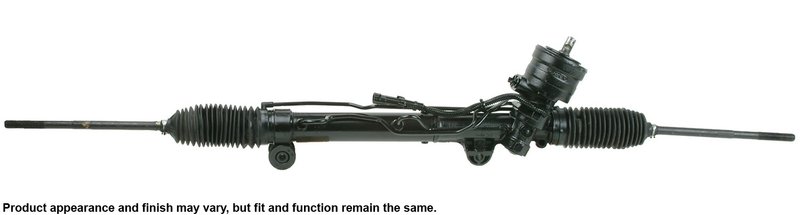

Cardone 22-182 Rack and Pinion Assembly
⚙️ 30 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$313.53Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Rack and Pinion Assembly
🚗Fitment: Buick, Oldsmobile, and Pontiac, Allure, Grand Prix, Intrigue, LaCrosse, and Regal
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Rack and Pinion Assembly options
Cardone 22-182 Rack and Pinion Assembly
| Brand | Cardone |
| Part Number | 22-182 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 12.25 |
| Distance Between Mounting Holes (mm) | 311.15 |
| E-Waste | Yes |
| FAQs | For the first few minutes of driving my car, the steering is hard |
| FAQs | I replaced the rack and now the power steering pump is whining. w |
| FAQs | Steering not returning to center coming out of a turn. what could |
| FAQs | The most likely cause of power steering pump whine is air in the |
| FAQs | The rack and pinion does not return to center by itself. the geom |
| FAQs | This symptom is classified as "morning sickness". this condition |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.66 |
| Input Shaft Diameter (mm) | 16.71 |
| Input Shaft Length (in) | 1.13 |
| Input Shaft Length (mm) | 28.58 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, mounting bushing assembly, sealing kit, instruct |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 49.50 |
| Rack Length (mm) | 1257.30 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.47 |
| Thread Length (mm) | 62.76 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.38 |
This part fits 30 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Buick | Allure | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Buick | LaCrosse | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Pontiac | Grand Prix | 5.3L | V8 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Buick | Allure | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Buick | LaCrosse | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Fitment note: with Variable Effort Steering (NV7), Includes Inner Tie Rods, In-Line Filter available, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly |
| 2007 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Rack and Pinion Assembly with Magnetic Speed Variable Assist Steering (NV8), Includes Inner Tie Rods, In-Line Filter available; Recommended to always install a filter, use suggested OE Fluid, and flush the system for warranty purposes; with Hydraulic Power.; Rack and Pinion Assembly |
| 2007 | Pontiac | Grand Prix | 5.3L | V8 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2006 | Buick | Allure | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2006 | Buick | LaCrosse | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2006 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Fitment note: with Variable Effort Steering (NV7), Includes Inner Tie Rods, In-Line Filter available, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly |
| 2006 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Rack and Pinion Assembly with Magnetic Speed Variable Assist Steering (NV8), Includes Inner Tie Rods, In-Line Filter available; Recommended to always install a filter, use suggested OE Fluid, and flush the system for warranty purposes; with Hydraulic Power.; Rack and Pinion Assembly |
| 2006 | Pontiac | Grand Prix | 5.3L | V8 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2005 | Buick | Allure | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2005 | Buick | LaCrosse | 3.6L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2005 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Fitment note: with Variable Effort Steering (NV7), Includes Inner Tie Rods, In-Line Filter available, For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system, Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power; Rack and Pinion Assembly |
| 2005 | Pontiac | Grand Prix | 3.8L | V6 | N/A | Rack and Pinion Assembly with Magnetic Speed Variable Assist Steering (NV8), Includes Inner Tie Rods, In-Line Filter available; Recommended to always install a filter, use suggested OE Fluid, and flush the system for warranty purposes; with Hydraulic Power.; Rack and Pinion Assembly |
| 2005 | Pontiac | Grand Prix | 5.3L | V8 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2004 | Pontiac | Grand Prix | N/A | Rack and Pinion Assembly with Magnetic Speed Variable Assist Steering (NV8), Includes Inner Tie Rods, In-Line Filter available; Recommended to always install a filter, use suggested OE Fluid, and flush the system for warranty purposes; with Hydraulic Power.; Rack and Pinion Assembly | ||
| 2002 | Buick | Regal | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 2002 | Oldsmobile | Intrigue | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 2001 | Buick | Regal | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 2001 | Oldsmobile | Intrigue | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 2000 | Buick | Regal | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 2000 | Oldsmobile | Intrigue | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1999 | Buick | Regal | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1999 | Oldsmobile | Intrigue | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1998 | Buick | Regal | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1998 | Oldsmobile | Intrigue | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1997 | Buick | Regal | 3.8L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
26031078260635822607991688955443
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
