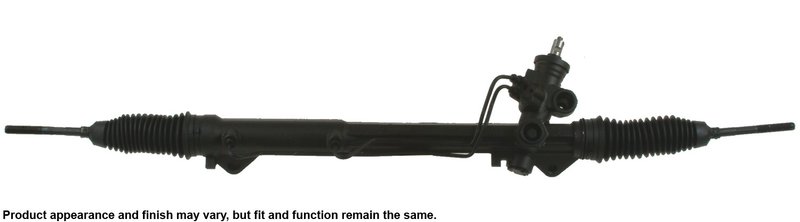

Cardone 22-2016 Rack and Pinion Assembly
Electronic Power Steering Rack for Ford and Lincoln
Cardone 22-2016 is a remanufactured rack and pinion assembly built for electronic power steering applications in select Ford, Lincoln, and Mercury vehicles. It is engineered for direct OE-style fitment and includes new sealing components, a sealing kit, and tie rod ends for a complete steering repair.
Key Features
- Remanufactured aluminum rack and pinion assembly
- Electronic power steering design with factory-tested on-car communication checks
- New spool valve seals and rack donut seals installed where applicable
- Specialized lubricant applied for extended service life
- Protective coating helps resist corrosion and rust
- Rack length: 50.13 in. with 3 turns lock to lock
- Hose port type: O-ring; black steering rack finish
- Package contents: rack and pinion, sealing kit, instruction sheet
Product Details
The Cardone Rack and Pinion Assembly, part number 22-2016, is remanufactured to OE fit standards using brand-new premium components where needed. Each unit is factory test driven under demanding conditions to verify steering operation and vehicle communication performance. This process, along with replacement rubber sealing components and precision lubrication, helps restore steering response and reduce internal leakage in the hydraulic system. This part cross-references Ford OE numbers 3W1Z3280BA and 8W7Z3280A for the same application.
Compatible With 2008-2011 Ford Crown Victoria, N/A; 2008-2011 Lincoln Town Car, N/A; 2009-2011 Mercury Grand Marquis, N/A; and 2008 Mercury Grand Marquis, N/A from 01/02/2008 with hydraulic power steering.
Common Steering Issues This Part Addresses
- Hard steering during the first few minutes of driving
- Internal fluid bypass caused by worn rack seals
- Steering that does not return to center after a turn
- Power steering pump whine caused by air in the system after repair
- Leakage or wear in the rack housing and valve seals
Installation Notes
For warranty validation on listed applications, install an in-line filter, use OE fluid, and flush the hydraulic power steering system during installation. If steering does not return to center, inspect front-end alignment and check the return line for restriction or kinks. Bleed the system completely to remove air before road testing. Fits 2008-2011 Ford Crown Victoria, N/A; 2008-2011 Lincoln Town Car, N/A; and 2009-2011 Mercury Grand Marquis, N/A, with application-specific notes as listed.
Quality Assurance
Cardone remanufactures this rack and pinion assembly to rigorous quality and performance standards. The unit is tested to simulate extreme operating conditions, and all rubber sealing components are replaced to support reliable operation. The remanufacturing process also reduces energy and raw material use compared with producing a new part.
| Brand | Cardone |
|---|---|
| Part Number | 22-2016 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 20.13 |
| Distance Between Mounting Holes (mm) | 511.18 |
| E-Waste | No |
| FAQs | For the first few minutes of driving my car, the steering is hard |
| FAQs | I replaced the rack and now the power steering pump is whining. w |
| FAQs | Steering not returning to center coming out of a turn. what could |
| FAQs | The most likely cause of power steering pump whine is air in the |
| FAQs | The rack and pinion does not return to center by itself. the geom |
| FAQs | This symptom is classified as "morning sickness". this condition |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.81 |
| Input Shaft Diameter (mm) | 20.62 |
| Input Shaft Length (in) | 1.50 |
| Input Shaft Length (mm) | 38.10 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port ID Size | 0.437 |
| Product Condition | Remanufactured |
| Rack Length (in) | 50.13 |
| Rack Length (mm) | 1273.18 |
| Return Port ID Size | 0.376 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.43 |
| Thread Length (mm) | 61.77 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Ford | Crown Victoria | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Lincoln | Town Car | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Mercury | Grand Marquis | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Ford | Crown Victoria | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Lincoln | Town Car | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Mercury | Grand Marquis | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Ford | Crown Victoria | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Lincoln | Town Car | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Mercury | Grand Marquis | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Ford | Crown Victoria | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Lincoln | Town Car | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Mercury | Grand Marquis | N/A | From 01/02/2008; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
