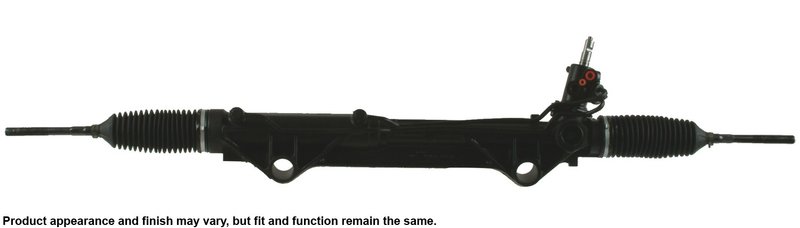

Cardone 22-2038 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 22-2038
The Cardone Rack and Pinion Assembly 22-2038 is a remanufactured steering component designed specifically for Ford F-150 models. Engineered with an aluminum casting material, this assembly offers reliable steering performance and durability for your vehicle.
- Remanufactured rack and pinion assembly with aluminum casting
- Compatible with Ford F-150 models
- Includes rack and pinion, sealing kit, and instruction sheet
- Features O-ring type hose ports for secure connections
- Input shaft diameter of 0.72 inches and length of 1.94 inches
- Rack length measures 55.50 inches (1409.7 mm)
- Includes tie rod ends for complete installation
- Two mounting holes spaced 16.94 inches (430.23 mm) apart
- Total steering turns lock to lock: 3.13
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering gear components that meet OEM specifications. This line provides a cost-effective solution for restoring steering functionality while maintaining quality standards. The assemblies come complete with necessary sealing kits and tie rod ends to facilitate installation and ensure proper fitment for vehicles like the Ford F-150.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 22-2038) is constructed with a durable aluminum casting, which helps reduce weight while maintaining strength. The assembly features an input shaft diameter of 0.72 inches and a length of 1.94 inches, designed to match the steering system requirements of the Ford F-150. The rack length of 55.50 inches ensures proper steering range, and the two mounting holes spaced 16.94 inches apart provide secure attachment points. The included tie rod ends and sealing kit simplify the replacement process, making it a comprehensive steering solution.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air trapped in the power steering system causing noise
- Steering geometry issues affecting return-to-center behavior
Installation Notes and Tips
When installing the Cardone Rack and Pinion Assembly 22-2038, ensure all mounting holes align correctly with the vehicle frame. Use the included sealing kit to prevent leaks and maintain system pressure. Verify the input shaft dimensions match the steering column for proper fitment. Bleed the power steering system thoroughly to remove any air that may cause pump noise or steering irregularities. Follow the instruction sheet carefully to complete the installation safely and accurately.
Quality Assurance and Warranty
This remanufactured rack and pinion assembly undergoes rigorous testing to meet performance and durability standards. Cardone provides a warranty on this part to cover defects in materials and workmanship, ensuring confidence in the product's reliability for your Ford F-150 steering system.
| Brand | Cardone |
|---|---|
| Part Number | 22-2038 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 16.94 |
| Distance Between Mounting Holes (mm) | 430.23 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.72 |
| Input Shaft Diameter (mm) | 18.39 |
| Input Shaft Length (in) | 1.94 |
| Input Shaft Length (mm) | 49.20 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port ID Size | 0.49 |
| Product Condition | Remanufactured |
| Rack Length (in) | 55.50 |
| Rack Length (mm) | 1409.70 |
| Return Port ID Size | 0.438 |
| Steering Rack Color | Black |
| Thread Length (in) | 3.03 |
| Thread Length (mm) | 77.06 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.13 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-150 | 145.0" | N/A | with Heavy Duty Towing Package; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2010 | Ford | F-150 | 157.0" | N/A | with Heavy Duty Towing Package; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2010 | Ford | F-150 | 163.0" | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Ford | F-150 | 145.0" | N/A | with Heavy Duty Towing Package; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Ford | F-150 | 157.0" | N/A | with Heavy Duty Towing Package; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Ford | F-150 | 163.0" | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
