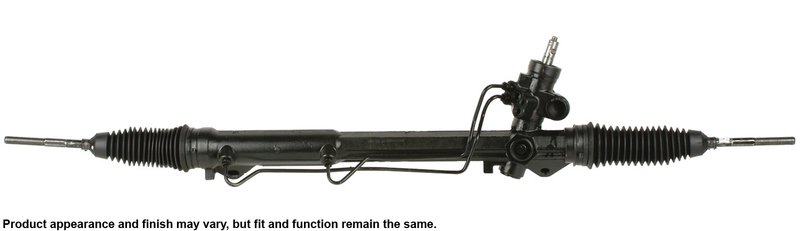

Cardone 22-270 Rack and Pinion Assembly
| Brand | Cardone 22-270 |
|---|---|
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 20.13 |
| Distance Between Mounting Holes (mm) | 511.18 |
| E-Waste | No |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.73 |
| Input Shaft Diameter (mm) | 18.47 |
| Input Shaft Length (in) | 1.50 |
| Input Shaft Length (mm) | 38.10 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port ID Size | 0.24 |
| Product Condition | Remanufactured |
| Rack Length (in) | 50.13 |
| Rack Length (mm) | 1273.18 |
| Return Port ID Size | 0.24 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.50 |
| Thread Length (mm) | 63.50 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.81 |
| Product line | Rack and Pinion Assembly |
| Fits | Mercury · 2 vehicles |
Remanufactured OE replacement. Built to original-equipment standards for a precise fit and dependable performance.
Aluminum construction. Lightweight housing helps support durability and corrosion resistance.
Factory-tested. Each unit is driven under extreme conditions to verify communication and operation.
Cross-references Mercury 3W1Z3280BA, Mercury 3W1Z3504GARM and Mercury TR3W1Z3280BA for the same application. See all 3.
Remanufactured Electronic Steering Rack
CARDONE 22-270 is a remanufactured electronic power steering rack and pinion assembly built for direct replacement in select Mercury Marauder applications. It is rebuilt with new sealing components, specialized lubricant, and factory testing to support consistent steering response and OE-style fitment.
Compatible with 2003-2004 Mercury Marauder steering systems, this rack and pinion assembly is finished with a protective coating and uses aluminum construction for durability. The CARDONE 22-270 is a practical replacement when the original rack shows internal leakage, steering effort changes, or return-to-center concerns.
Key Features
- Remanufactured Original Equipment-style rack and pinion assembly
- Fits 2003-2004 Mercury Marauder, N/A
- Electronic power steering rack with verified on-car communications during factory testing
- New spool valve seals and rack donut seals installed where applicable
- 100% replacement of rubber sealing components
- Specialized lubricant applied for extended service life
- Protective coating helps resist corrosion and rust
- Aluminum housing with black finish
- Includes rack and pinion, sealing kit, and instruction sheet
- Part number 22-270 for application matching and catalog lookup
Product Details
The CARDONE Rack and Pinion Assembly line focuses on remanufactured steering components that are rebuilt to OE specifications. For this application, the unit is processed with new premium components, polished micro-finish sleeves where applicable, and a factory test drive that simulates demanding operating conditions. The result is a steering rack built to restore proper hydraulic and electronic steering function in the Mercury Marauder platform. Part number 22-270 is also referenced for interchange matching in Mercury applications.
Common Steering Problems It Can Address
- Hard steering during the first few minutes of driving
- Power steering pump whine caused by air in the system after rack replacement
- Steering that does not return to center after a turn
- Internal bypass from worn spool valve sealing surfaces
- Fluid leakage from worn rack seals or sealing rings
Installation Notes
For 2003-2004 Mercury Marauder installation, use an in-line filter and OE fluid, and flush the hydraulic power system when installing the Rack and Pinion Assembly with inner tie rods for warranty validation. The steering system must be bled completely after installation to remove trapped air and reduce pump noise. If the vehicle does not return to center, inspect front-end alignment and check the return line for restriction or kinks.
Quality Assurance
Each CARDONE 22-270 unit is remanufactured to rigorous quality and performance standards and factory tested before release. The process replaces all rubber sealing components, applies specialized lubricant, and verifies on-car communications under simulated extreme conditions. This remanufacturing approach also reduces energy and raw material use compared with producing a new part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Mercury | Marauder | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2003 | Mercury | Marauder | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
