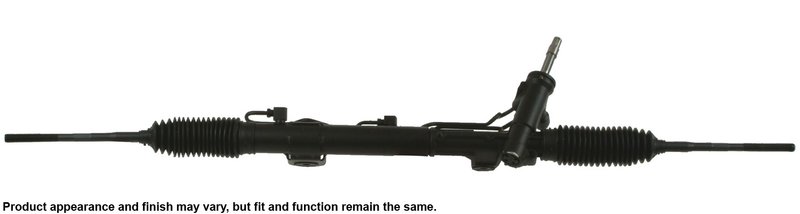

Cardone 22-3023 Rack and Pinion Assembly
| Brand | Cardone 22-3023 |
|---|---|
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 11.25 |
| Distance Between Mounting Holes (mm) | 285.75 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (in) | 3.31 |
| Input Shaft Length (mm) | 84.12 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 49.13 |
| Rack Length (mm) | 1247.78 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 3.21 |
| Thread Length (mm) | 81.51 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.88 |
| Product line | Rack and Pinion Assembly |
| Fits | Chrysler and Dodge · 14 vehicles |
Remanufactured OE part. Built to rigorous quality and performance standards for dependable steering.
Aluminum construction. Lightweight housing finished with protective coating to resist corrosion and rust.
New sealing components. All rubber seals are replaced to help eliminate internal leaks and extend life.
Cross-references Chrysler 4743878AE, Chrysler 4743878AG and Chrysler 4743879AF for the same application. See all 6.
Remanufactured Electronic Power Steering Rack
CARDONE 22-3023 is a remanufactured rack and pinion assembly built for hydraulic power steering applications on select Chrysler and Dodge vehicles. It is engineered for direct OE-style fitment and includes new sealing components, a protective finish, and inner tie rods where listed in the vehicle application notes.
Compatible With 2008-2010 Chrysler Sebring, 2008-2009 Chrysler Cirrus, and 2008-2010 Dodge Avenger applications listed below, this rack and pinion assembly is a practical replacement for worn steering gear that causes play, leaks, or inconsistent steering response.
Key Features
- Remanufactured Original Equipment-style rack and pinion assembly
- Aluminum housing with protective coating to resist corrosion and rust
- 100% replacement of rubber sealing components
- New spool valve seals and rack donut seals installed where applicable
- Specialized lubricant applied for extended service life
- Factory test driven to verify operation under demanding conditions
- O-ring hose ports with M18 x 1.5 pressure port and M16 x 1.5 return port
- Includes tie rod ends as listed in the product data
Product Details
CARDONE Rack and Pinion Assembly 22-3023 is remanufactured to meet rigorous performance standards and is tested to confirm on-car communication and steering operation. The unit uses brand-new premium components during the remanufacturing process, and the valve housings receive a polished micro-finish sleeve where applicable for added durability. This part cross-references Chrysler and Dodge OE numbers for the same application, including 4743878AE and 4743879AF.
Use this steering rack when servicing hydraulic steering systems on 2008-2010 Chrysler Sebring, 2008-2009 Chrysler Cirrus, and 2008-2010 Dodge Avenger models listed in the fitment data. The CARDONE 22-3023 part number is also useful when searching for a direct replacement rack and pinion assembly for these vehicles.
Common Issues This Part Can Address
- Steering wheel play or loose steering feel
- Fluid leakage from worn rack seals or valve seals
- Hard steering caused by internal rack wear
- Steering that does not return smoothly after a turn
- Noise or inconsistent assist from a worn steering gear
Installation Notes
Before installation, flush the hydraulic power steering system and use OE fluid as noted in the fitment requirements. An in-line filter is recommended for the listed applications, and the system should be bled completely after installation to remove air. If steering does not return to center after replacement, inspect front-end alignment and check the return line for restriction or kinks.
For warranty validation on the listed Chrysler Sebring, Chrysler Cirrus, and Dodge Avenger applications, follow the vehicle-specific notes in the fitment data and confirm the correct steering configuration and wheel size before installation.
Quality Assurance
CARDONE remanufactures this rack and pinion assembly to OE-style standards using new sealing components and a specialized lubricant to support long-term reliability. Each unit is factory test driven under extreme operating conditions to verify steering performance and communication before release.
- Fits 2008 Chrysler Cirrus, with 16" wheels
- Fits 2009 Chrysler Cirrus, steering (SBP) with 18" wheels
- Fits 2010 Chrysler Cirrus, standard steering (SBA) with 17" wheels
- Fits 2008 Chrysler Sebring, with 16" wheels
- Fits 2008 Chrysler Sebring, standard steering (SBA) with 17" wheels
- Fits 2009 Chrysler Sebring, steering (SBP) with 18" wheels
- Fits 2010 Chrysler Sebring, standard steering (SBA) with 17" wheels
- Fits 2008 Dodge Avenger, with 18" wheels
- Fits 2009 Dodge Avenger, standard steering (SBA) with 17" wheels
- Fits 2010 Dodge Avenger, steering (SBP) with 18" wheels
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Chrysler | Cirrus | — | — | — | N/A | Fitment: Standard Steering (SBA), 17" Wheels, Includes Inner Tie Rods, In-Line Filter available; For warranty purposes, always install a filter and use OE Fluid, flush the system; Sales Codes on "Body Code" plate; Hydraulic Power.; Rack and Pinion Assembly |
| 2010 | Chrysler | Sebring | — | — | — | N/A | Fitment: Standard Steering (SBA), 17" Wheels, Includes Inner Tie Rods, In-Line Filter available; For warranty purposes, always install a filter and use OE Fluid, flush the system; Sales Codes on "Body Code" plate; Hydraulic Power.; Rack and Pinion Assembly |
| 2010 | Chrysler | Sebring | Convertible | — | — | N/A | Steering (SBP); with 18" Wheels; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter, use OE Fluid, and flush system for warranty purposes; Sales Codes on "Body Code" plate on vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2010 | Dodge | Avenger | — | — | — | N/A | Steering (SBP); with 18" Wheels; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter, use OE Fluid, and flush system for warranty purposes; Sales Codes on "Body Code" plate on vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Chrysler | Cirrus | — | — | — | N/A | Steering (SBP); with 18" Wheels; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter, use OE Fluid, and flush system for warranty purposes; Sales Codes on "Body Code" plate on vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Chrysler | Cirrus | — | — | — | N/A | Fitment: Standard Steering (SBA), 17" Wheels, Includes Inner Tie Rods, In-Line Filter available; For warranty purposes, always install a filter and use OE Fluid, flush the system; Sales Codes on "Body Code" plate; Hydraulic Power.; Rack and Pinion Assembly |
| 2009 | Chrysler | Sebring | — | — | — | N/A | Fitment: Standard Steering (SBA), 17" Wheels, Includes Inner Tie Rods, In-Line Filter available; For warranty purposes, always install a filter and use OE Fluid, flush the system; Sales Codes on "Body Code" plate; Hydraulic Power.; Rack and Pinion Assembly |
| 2009 | Chrysler | Sebring | — | — | — | N/A | Steering (SBP); with 18" Wheels; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter, use OE Fluid, and flush system for warranty purposes; Sales Codes on "Body Code" plate on vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Dodge | Avenger | — | — | — | N/A | Fitment: Standard Steering (SBA), 17" Wheels, Includes Inner Tie Rods, In-Line Filter available; For warranty purposes, always install a filter and use OE Fluid, flush the system; Sales Codes on "Body Code" plate; Hydraulic Power.; Rack and Pinion Assembly |
| 2009 | Dodge | Avenger | — | — | — | N/A | Steering (SBP); with 18" Wheels; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter, use OE Fluid, and flush system for warranty purposes; Sales Codes on "Body Code" plate on vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2008 | Chrysler | Cirrus | — | — | — | N/A | with 16" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2008 | Chrysler | Sebring | — | — | — | N/A | with 16" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Sales Codes are found on the "Body Code" plate located on the left front side shield, wheel housing, or the upper radiator support of your vehicle; with Hydraulic Power; Rack and Pinion Assembly |
| 2008 | Dodge | Avenger | — | 2.7L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Dodge | Avenger | — | 2.4L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
