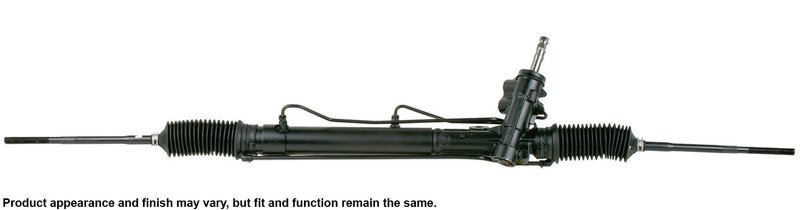

Cardone 22-369 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 22-369
The Cardone Rack and Pinion Assembly 22-369 is designed specifically for Chrysler Pacifica models, providing reliable steering performance. This remanufactured steering component combines steel and aluminum casting materials to ensure durability and precision.
- Remanufactured rack and pinion assembly for Chrysler Pacifica
- Constructed with steel and aluminum casting materials
- Includes rack and pinion, sealing kit, and instruction sheet
- Features O-ring type hose ports and tie rod ends included
- Rack length of 54.25 inches (1377.95 mm) with 2 mounting holes spaced 14.06 inches (357.20 mm) apart
- Input shaft diameter of 0.66 inches (16.79 mm) and length of 2.94 inches (74.63 mm)
- Pressure port thread size M18 x 1.5 and return port thread size M16 x 1.5
- Total steering turns lock to lock: 3.19
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications. This line is engineered to restore steering functionality and responsiveness in vehicles like the Chrysler Pacifica. Each assembly is tested and rebuilt using quality materials such as steel and aluminum to ensure longevity and consistent performance.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 22-369) is tailored for the Chrysler Pacifica, featuring a robust combination of steel and aluminum casting materials. The assembly includes all necessary components such as tie rod ends and a sealing kit, facilitating a comprehensive replacement. The rack length measures 54.25 inches, with mounting holes spaced 14.06 inches apart, ensuring proper fitment and secure installation. The input shaft diameter and length are precisely engineered at 0.66 inches and 2.94 inches respectively, matching factory specifications. Hose ports utilize O-ring seals to maintain hydraulic integrity, while pressure and return ports have metric thread sizes (M18 x 1.5 and M16 x 1.5) for compatibility with the vehicle’s power steering system.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in the power steering system causing noise
- Steering rack not self-centering due to geometry issues
Installation Notes and Tips
- Ensure proper alignment of mounting holes spaced 14.06 inches apart
- Use the included sealing kit to prevent hydraulic leaks
- Check input shaft dimensions (0.66 inch diameter, 2.94 inch length) for compatibility
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Follow the instruction sheet carefully for torque specifications and installation sequence
Quality Assurance and Warranty
The Cardone Rack and Pinion Assembly 22-369 is remanufactured to meet or exceed OEM standards, ensuring reliable steering performance for Chrysler Pacifica vehicles. Each unit undergoes rigorous testing to verify functionality and durability. Warranty details are provided with the product to guarantee quality and customer confidence.
| Brand | Cardone |
|---|---|
| Part Number | 22-369 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 14.06 |
| Distance Between Mounting Holes (mm) | 357.20 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.66 |
| Input Shaft Diameter (mm) | 16.79 |
| Input Shaft Length (in) | 2.94 |
| Input Shaft Length (mm) | 74.63 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 54.25 |
| Rack Length (mm) | 1377.95 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 3.04 |
| Thread Length (mm) | 77.14 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.19 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Chrysler | Pacifica | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Chrysler | Pacifica | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2006 | Chrysler | Pacifica | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2005 | Chrysler | Pacifica | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2004 | Chrysler | Pacifica | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
