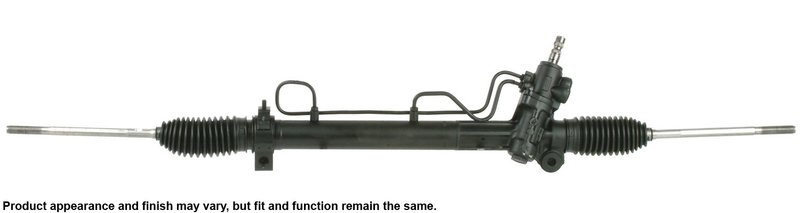

Cardone 26-1690 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-1690
The Cardone Rack and Pinion Assembly 26-1690 is designed for precise steering control in select Lexus and Toyota vehicles. This remanufactured steering component ensures reliable performance and is compatible with models such as the Toyota Camry, Avalon, and Lexus ES300.
- Remanufactured rack and pinion assembly with included installation kit
- Constructed from durable steel and aluminum casting materials
- Includes tie rod ends for complete steering system replacement
- Input shaft diameter of 0.75 inches (18.95 mm) and length of 2.00 inches (50.80 mm)
- Pressure port thread size M16 x 1.5 and return port thread size M17 x 1.5
- Rack length of 51.38 inches (1304.93 mm) with 2 mounting holes
- Black steering rack color with O-ring type hose ports
- Total turns lock to lock: 3
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications. This line provides a cost-effective solution for restoring steering performance while maintaining durability and fitment accuracy. The assemblies come complete with necessary hardware and tie rod ends to facilitate a straightforward installation process.
Detailed Product Description
This remanufactured rack and pinion assembly is engineered with a combination of steel and aluminum casting materials to balance strength and weight. The input shaft measures 0.75 inches in diameter and 2.00 inches in length, designed to match factory specifications for smooth steering input. The assembly features O-ring type hose ports and threaded pressure and return ports sized M16 x 1.5 and M17 x 1.5 respectively, ensuring compatibility with the vehicle’s hydraulic power steering system. The rack length of 51.38 inches and two mounting holes provide a secure fit within the steering system. Included tie rod ends complete the assembly, allowing for a comprehensive steering system replacement.
Compatible Vehicles and Common Steering Issues Addressed
- Compatible with Lexus ES300, Toyota Camry, and Toyota Avalon models
- Resolves hard steering during initial driving periods
- Addresses power steering pump whining caused by rack issues
- Corrects steering that does not return to center after turns
- Eliminates symptoms commonly referred to as "morning sickness" in steering
Installation Notes and Tips
Installation includes the provided instruction sheet and installation kit for proper assembly. Ensure all hydraulic connections use the specified O-ring hose ports to prevent leaks. Verify the input shaft dimensions match the vehicle’s steering column for proper engagement. After installation, bleed the power steering system to remove air and prevent pump noise. Check alignment and steering geometry to ensure the rack and pinion returns to center correctly.
Quality Assurance and Warranty
This Cardone remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards. The product condition is remanufactured to restore functionality and durability. While specific warranty details are not provided here, Cardone products typically include a limited warranty covering defects in materials and workmanship.
| Brand | Cardone |
| Part Number | 26-1690 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 0 |
| Distance Between Mounting Holes (mm) | 0.00 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 18.95 |
| Input Shaft Length (in) | 2.00 |
| Input Shaft Length (mm) | 50.80 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Installation Kit, Instruction Sheet |
| Pressure Port Thread Size | M16 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 51.38 |
| Rack Length (mm) | 1304.93 |
| Return Port Thread Size | M17 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.20 |
| Thread Length (mm) | 55.75 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3 |
This part fits 23 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Toyota | Avalon | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1999 | Toyota | Camry | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1998 | Lexus | ES300 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1998 | Toyota | Avalon | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1998 | Toyota | Camry | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1997 | Lexus | ES300 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1997 | Toyota | Avalon | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1997 | Toyota | Camry | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1996 | Toyota | Camry | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1995 | Toyota | Camry | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 1994 | Toyota | Camry | Base | 3.0L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1994 | Toyota | Camry | 2.2L | L4 | N/A | Japan Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | |
| 1994 | Toyota | Camry | LE | 3.0L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1994 | Toyota | Camry | XLE | 3.0L | V6 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1993 | Toyota | Camry | XLE | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1993 | Toyota | Camry | 2.2L | L4 | N/A | Japan Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | |
| 1993 | Toyota | Camry | Base | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1993 | Toyota | Camry | LE | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1993 | Toyota | Camry | DX | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1992 | Toyota | Camry | XLE | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1992 | Toyota | Camry | DLX | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1992 | Toyota | Camry | 2.2L | L4 | N/A | Japan Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | |
| 1992 | Toyota | Camry | LE | 3.0L | V6 | N/A | USA Built; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
