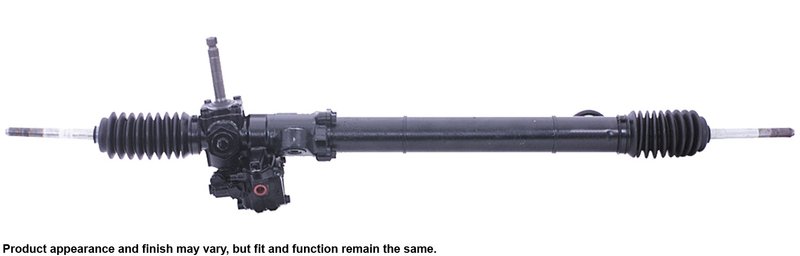

Cardone 26-1760 Rack and Pinion Assembly
Remanufactured Steering Rack for Acura Integra
Restore precise steering response with this remanufactured Cardone rack and pinion assembly. Built for 1990-1993 Acura Integra applications, Part Number 26-1760 is engineered for direct OE-style fitment and dependable on-road performance.
Key Features
- Remanufactured rack and pinion assembly for Acura Integra steering repair
- Fits 1990-1993 Acura Integra, N/A
- Brand-new rubber sealing components replace worn seals
- Specialized lubricant applied for extended service life
- Factory test drive verifies operation under extreme conditions and on-car communications
- Protective coating helps resist corrosion and rust
- Black steering rack with steel and aluminum casting materials
- Includes rack and pinion plus instruction sheet
Product Details
Cardone Rack and Pinion Assembly 26-1760 is remanufactured to OE fit standards and built with premium replacement components where wear commonly occurs. The unit uses new spool valve seals and rack donut seals to help control internal leakage, while polished micro-finish sleeves and a protective finish support durability. With tie rod ends included and a 3.5 lock-to-lock turn ratio, this steering rack is built for Acura Integra owners who need a direct replacement for worn steering gear.
This part cross-references Acura OE numbers 53521SK7003 and 53601SK7A56 for the same application.
Common Problems This Part Can Address
- Loose, wandering, or inconsistent steering feel
- Internal hydraulic leakage in the steering rack
- Hard steering during cold start or initial driving
- Steering noise caused by worn rack seals or bypass
- Failure to return smoothly after turning
Installation Notes
- Fits 1990-1993 Acura Integra, N/A.
- Install an in-line filter and use OE fluid during service.
- Flush the hydraulic power steering system when installing this rack and pinion assembly with inner tie rods for warranty validation.
- Verify pressure port M14 x 1.5 and return port M16 x 1.5 thread sizes before installation.
- Confirm mounting-hole spacing and steering shaft dimensions against the original unit.
Quality Assurance
Each Cardone electronic power steering rack and pinion undergoes a factory test drive that simulates demanding operating conditions while checking on-car communication. The remanufacturing process also reduces energy and raw material use compared with producing a new part, supporting a more resource-efficient repair path.
| Brand | Cardone |
|---|---|
| Part Number | 26-1760 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 4.00 |
| Distance Between Mounting Holes (mm) | 101.60 |
| E-Waste | No |
| FAQs | For the first few minutes of driving my car, the steering is hard |
| FAQs | I replaced the rack and now the power steering pump is whining. w |
| FAQs | Steering not returning to center coming out of a turn. what could |
| FAQs | The most likely cause of power steering pump whine is air in the |
| FAQs | The rack and pinion does not return to center by itself. the geom |
| FAQs | This symptom is classified as "morning sickness". this condition |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.59 |
| Input Shaft Diameter (mm) | 14.99 |
| Input Shaft Length (in) | 3.56 |
| Input Shaft Length (mm) | 90.47 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, instruction sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 41.63 |
| Rack Length (mm) | 1057.28 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.91 |
| Thread Length (mm) | 48.51 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.5 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Acura | Integra | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1992 | Acura | Integra | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1991 | Acura | Integra | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1990 | Acura | Integra | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
