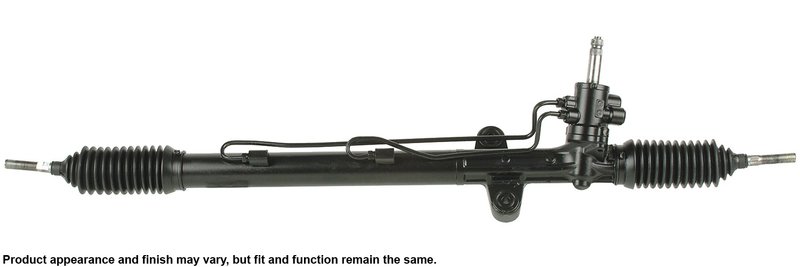

Cardone 26-1797 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-1797
The Cardone Rack and Pinion Assembly 26-1797 is designed for precise steering control in Acura and Honda vehicles, specifically compatible with the Accord and CL models. This remanufactured steering component combines steel and aluminum casting materials to ensure durability and reliable performance.
- Remanufactured rack and pinion assembly for Acura and Honda Accord, CL
- Constructed with steel and aluminum casting materials for strength and weight balance
- Includes tie rod ends for a complete steering solution
- Input shaft diameter of 0.75 inches (19 mm) and length of 2.44 inches (61.9 mm)
- Rack length measures 41.75 inches (1060.45 mm) with 3.13 total turns lock to lock
- Pressure port thread size M14 x 1.5 and return port thread size M16 x 1.5 with seat-type hose ports
- Distance between mounting holes is 4.25 inches (107.95 mm) with two mounting holes
- Includes instruction sheet for installation guidance
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications for fit and function. This line is engineered to restore steering precision and reliability in vehicles such as the Acura Accord and Honda CL. Each assembly undergoes a thorough remanufacturing process to ensure consistent performance and durability, making it a practical replacement option for worn or damaged steering racks.
Detailed Product Description
This rack and pinion assembly features a robust combination of steel and aluminum casting materials, providing a balance of strength and reduced weight. The assembly includes tie rod ends, which simplifies installation and ensures compatibility with the vehicle’s steering system. The input shaft diameter of 0.75 inches (19 mm) and length of 2.44 inches (61.9 mm) are designed to match factory specifications, while the rack length of 41.75 inches (1060.45 mm) supports precise steering response. The assembly’s total turns lock to lock is 3.13, which aligns with the steering geometry of Acura Accord and Honda CL models. Thread sizes for pressure and return ports are M14 x 1.5 and M16 x 1.5 respectively, with seat-type hose ports for secure hydraulic connections.
Common Steering Issues Addressed by This Rack and Pinion Assembly
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air trapped in the power steering system causing noise
- Steering geometry issues affecting rack centering
Installation Notes and Tips
Installation of the Cardone 26-1797 rack and pinion assembly should be performed by a qualified technician familiar with Acura and Honda steering systems. Ensure the mounting holes align precisely with the vehicle’s frame using the 4.25-inch (107.95 mm) spacing. Verify that the input shaft dimensions match the steering column connection. Bleed the power steering system thoroughly after installation to remove air and prevent pump noise. The included instruction sheet provides detailed guidance to assist with proper installation and torque specifications.
Quality Assurance and Warranty
This remanufactured rack and pinion assembly undergoes rigorous testing to meet or exceed OEM standards for fit, form, and function. Cardone provides a limited warranty on this part, covering defects in materials and workmanship. This warranty ensures that the product delivers reliable steering performance for Acura Accord and Honda CL vehicles when installed and maintained according to manufacturer recommendations.
| Brand | Cardone |
|---|---|
| Part Number | 26-1797 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 4.25 |
| Distance Between Mounting Holes (mm) | 107.95 |
| E-Waste | No |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.00 |
| Input Shaft Length (in) | 2.44 |
| Input Shaft Length (mm) | 61.90 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 41.75 |
| Rack Length (mm) | 1060.45 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.77 |
| Thread Length (mm) | 45.01 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.13 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003 | Acura | CL | Base | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 2002 | Acura | CL | Base | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 2002 | Honda | Accord | Coupe | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 2002 | Honda | Accord | Sedan | 2.3L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2001 | Acura | CL | Premium | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 2001 | Honda | Accord | Coupe | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |||
| 2001 | Honda | Accord | Sedan | 2.3L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2000 | Honda | Accord | Coupe | N/A | ID #(s) S82 A5; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | |||
| 2000 | Honda | Accord | Sedan | 2.3L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 1999 | Honda | Accord | Sedan | 2.3L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 1998 | Honda | Accord | Sedan | 2.3L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
