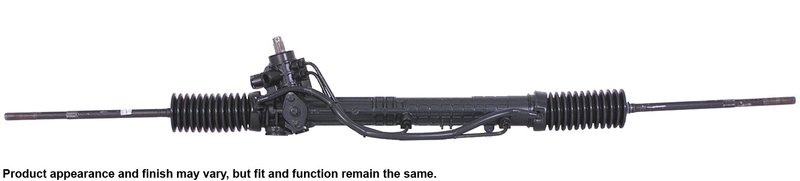

Cardone 26-1819 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-1819
The Cardone Rack and Pinion Assembly 26-1819 is designed specifically for Volkswagen Passat models, providing reliable steering performance. This remanufactured steering component features durable aluminum casting and includes tie rod ends for a complete replacement solution.
- Remanufactured rack and pinion assembly for Volkswagen Passat
- Aluminum casting material for strength and corrosion resistance
- Includes tie rod ends for comprehensive steering repair
- Input shaft diameter: 0.75 inches (18.97 mm)
- Rack length: 50.81 inches (1290.65 mm)
- O-ring type hose ports with M18 x 1.5 pressure port thread size
- Two mounting holes spaced 3.81 inches (96.85 mm) apart
- Total turns lock to lock: 3.13
Detailed Description of the Rack and Pinion Assembly
This Cardone Rack and Pinion Assembly 26-1819 is engineered to restore precise steering control in Volkswagen Passat vehicles. The assembly features an aluminum casting that balances lightweight design with durability. The input shaft measures 0.75 inches in diameter and 1 inch in length, ensuring compatibility with the vehicle's steering column. The rack length of just over 50 inches provides the correct fitment for the Passat's steering system. Hose ports utilize O-ring seals with standardized thread sizes (M18 x 1.5 for pressure and M16 x 1.5 for return), facilitating secure hydraulic connections.
The assembly includes tie rod ends, which are critical for connecting the steering rack to the wheels, allowing for smooth and responsive steering input. The total turns lock to lock is 3.13, matching the original equipment specifications for consistent steering feel and performance.
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet or exceed OEM standards. This line is designed to provide reliable steering performance and durability while offering a cost-effective alternative to new parts. Each assembly undergoes thorough inspection and testing to ensure proper function and fitment, making it a suitable replacement for Volkswagen Passat steering systems.
Common Steering Issues Addressed by This Part
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in the power steering system causing noise
- Steering rack not self-centering due to geometry issues
Installation Notes and Tips
- Ensure proper alignment of mounting holes spaced 3.81 inches apart
- Verify input shaft dimensions (0.75 inch diameter, 1 inch length) for compatibility
- Use correct thread sizes for pressure and return ports (M18 x 1.5 and M16 x 1.5)
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Follow vehicle-specific torque specifications for mounting bolts
Quality Assurance and Warranty
This remanufactured Cardone Rack and Pinion Assembly 26-1819 undergoes comprehensive testing to ensure it meets functional and durability standards. The assembly is built to restore steering performance in Volkswagen Passat vehicles reliably. Warranty details are provided by Cardone and typically cover defects in materials and workmanship, supporting confidence in the product's quality.
| Brand | Cardone |
|---|---|
| Part Number | 26-1819 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 3.81 |
| Distance Between Mounting Holes (mm) | 96.85 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 18.97 |
| Input Shaft Length (in) | 1.00 |
| Input Shaft Length (mm) | 25.40 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 50.81 |
| Rack Length (mm) | 1290.65 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.00 |
| Thread Length (mm) | 50.80 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.13 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Volkswagen | Passat | N/A | with ZF Gear; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | ||
| 1996 | Volkswagen | Passat | N/A | with ZF Gear; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly | ||
| 1995 | Volkswagen | Passat | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | ||
| 1994 | Volkswagen | Passat | 2.8L | V6 | N/A | with ZF Gear; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 1993 | Volkswagen | Passat | 2.8L | V6 | N/A | with ZF Gear; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
