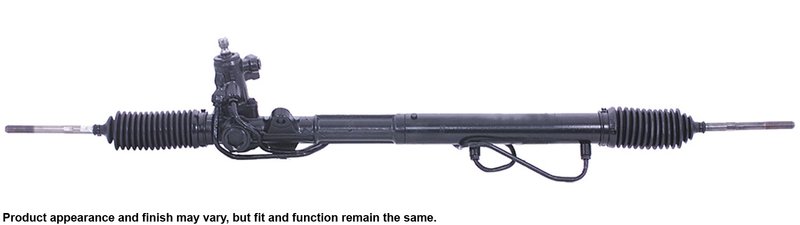

Cardone 26-2101 Rack and Pinion Assembly
Reliable Rack and Pinion Assembly for Mitsubishi Galant
The Cardone Rack and Pinion Assembly 26-2101 is designed specifically for Mitsubishi Galant models, providing precise steering control and durability. This remanufactured steering component ensures consistent performance and helps maintain vehicle safety and handling.
- Remanufactured rack and pinion assembly with steel and aluminum casting
- Includes rack and pinion, sealing kit, and instruction sheet
- Input shaft diameter: 0.75 inches (18.97 mm), length: 1.13 inches (28.58 mm)
- Distance between mounting holes: 3.25 inches (82.55 mm)
- Pressure port thread size: M14 x 1.5; return port thread size: M16 x 1.5
- O-ring type hose port and black steering rack color
- Includes tie rod ends and features 3 total turns lock to lock
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly line focuses on remanufactured steering components that meet strict quality standards. This product line offers reliable steering gear replacements designed to restore original steering feel and performance. The 26-2101 part number is part of this line, ensuring compatibility and durability for Mitsubishi Galant vehicles.
Detailed Product Description
This remanufactured rack and pinion assembly combines steel and aluminum casting materials to balance strength and weight. The assembly measures 48.75 inches (1238.25 mm) in rack length and features two mounting holes spaced 3.25 inches (82.55 mm) apart for secure installation. The input shaft diameter is 0.75 inches (18.97 mm) with a length of 1.13 inches (28.58 mm), designed to fit precisely with the vehicle's steering column. The assembly includes an O-ring type hose port and threaded pressure and return ports sized M14 x 1.5 and M16 x 1.5 respectively, ensuring proper hydraulic connections. The black finish provides corrosion resistance and a clean appearance. Tie rod ends are included to complete the steering linkage, and the total turns lock to lock is 3, offering responsive steering control.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in power steering system causing noise
- Steering rack not self-centering due to geometry
Installation Notes and Tips
Ensure the mounting holes align precisely with the vehicle frame using the 3.25-inch spacing. Verify the input shaft diameter and length match the steering column specifications. Use the included sealing kit to prevent leaks at hose connections. Bleed the power steering system thoroughly to remove air and avoid pump noise. Follow the instruction sheet carefully for torque specifications and alignment procedures.
Quality Assurance and Warranty
This Cardone Rack and Pinion Assembly 26-2101 is remanufactured to meet OEM standards, ensuring reliable performance and durability. The product undergoes rigorous testing to verify functionality and fitment for Mitsubishi Galant models. Warranty details are provided by Cardone and typically cover defects in materials and workmanship.
| Brand | Cardone |
| Part Number | 26-2101 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 3.25 |
| Distance Between Mounting Holes (mm) | 82.55 |
| E-Waste | No |
| FAQs | For the first few minutes of driving my car, the steering is hard |
| FAQs | I replaced the rack and now the power steering pump is whining. w |
| FAQs | Steering not returning to center coming out of a turn. what could |
| FAQs | The most likely cause of power steering pump whine is air in the |
| FAQs | The rack and pinion does not return to center by itself. the geom |
| FAQs | This symptom is classified as "morning sickness". this condition |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 18.97 |
| Input Shaft Length (in) | 1.13 |
| Input Shaft Length (mm) | 28.58 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 48.75 |
| Rack Length (mm) | 1238.25 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.70 |
| Thread Length (mm) | 43.18 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Mitsubishi | Galant | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1997 | Mitsubishi | Galant | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1996 | Mitsubishi | Galant | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1995 | Mitsubishi | Galant | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1994 | Mitsubishi | Galant | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
