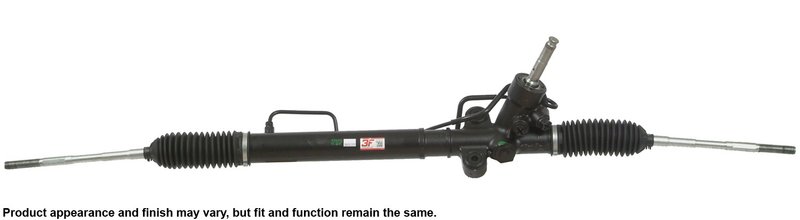

Cardone 26-2329 Rack and Pinion Assembly
| Brand | Cardone 26-2329 |
|---|---|
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 3.44 |
| Distance Between Mounting Holes (mm) | 87.33 |
| E-Waste | No |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.88 |
| Input Shaft Diameter (mm) | 22.23 |
| Input Shaft Length (in) | 3.38 |
| Input Shaft Length (mm) | 85.73 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, instruction sheet |
| Pressure Port Thread Size | M16 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 49.38 |
| Rack Length (mm) | 1254.13 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.28 |
| Thread Length (mm) | 57.84 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.25 |
| Product line | Remanufactured Rack and Pinion Assembly |
| Fits | Subaru · 10 vehicles |
Remanufactured OE part. Delivers a perfect fit with factory-tested performance.
New sealing components. Helps eliminate internal leaks and improve reliability.
Protective coating. Resists corrosion and rust for longer service life.
Cross-references Subaru 34110AJ032, Subaru 34110AJ033 and Subaru 34110AJ034 for the same application. See all 9.
Remanufactured Steering Rack for Subaru
Restore precise steering response with this remanufactured CARDONE Electronic Power Steering Rack and Pinion Assembly. Built for Subaru Legacy and Subaru Outback applications, Part Number 26-2329 is remanufactured with new premium components and tested to verify on-car communication and performance under demanding conditions.
Key Features
- Remanufactured Original Equipment-style fit for direct replacement
- New spool valve seals and rack donut seals installed where applicable
- 100% replacement of rubber sealing components
- Specialized lubricant applied for extended service life
- Factory test drive performed to simulate extreme operating conditions
- Protective coating helps resist corrosion and rust
- Steel and aluminum casting construction
- Tie rod ends included
Product Details
CARDONE Rack and Pinion Assembly 26-2329 is engineered for Subaru steering systems that require accurate hydraulic response and dependable road feel. The unit measures 49.38 inches in rack length, uses M16 x 1.5 pressure and return port threads, and features a 3.25 total turns lock to lock. It is finished in black and built with a 0.88-inch input shaft diameter for OE-style replacement on select Subaru Legacy and Subaru Outback models. This part cross-references Subaru 34110AJ032 and 34110AJ033 for the same application.
Common Steering Problems This Part Can Address
- Hard steering during the first few minutes of driving
- Internal fluid bypass caused by worn rack seals
- Steering that does not return to center after a turn
- Power steering pump whine caused by air in the system
- Excessive play, uneven steering effort, or leaking rack seals
Installation Notes
Fits 2014 Subaru Legacy, N/A. Fits 2010-2014 Subaru Outback, N/A. Fits 2010-2013 Subaru Legacy, N/A. For Outback and Legacy applications, install an in-line filter, use OE fluid, and flush the hydraulic power steering system during installation. Bleed the system completely after service to remove trapped air and verify smooth steering operation.
Quality Assurance
This CARDONE Electronic Power Steering Rack and Pinion Assembly is remanufactured to rigorous quality and performance standards. Each unit is factory test driven to confirm operation and communication, while replaced sealing components and protective finishing support long-term reliability and corrosion resistance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Subaru | Legacy | N/A | Remanufactured Rack and Pinion Assembly |
| 2014 | Subaru | Outback | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2013 | Subaru | Legacy | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2013 | Subaru | Outback | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2012 | Subaru | Legacy | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2012 | Subaru | Outback | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Subaru | Legacy | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Subaru | Outback | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Subaru | Legacy | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Subaru | Outback | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
