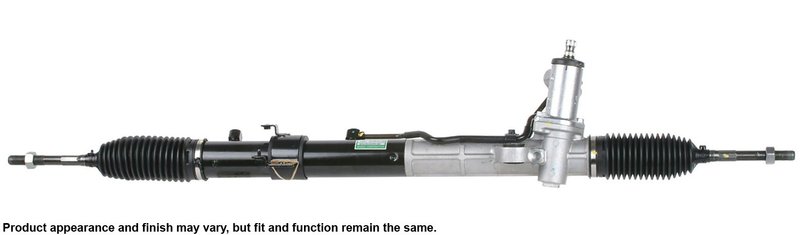

Cardone 26-2434 Rack and Pinion Assembly
| Brand | Cardone 26-2434 |
|---|---|
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 3.94 |
| Distance Between Mounting Holes (mm) | 100.03 |
| E-Waste | No |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (in) | 1.31 |
| Input Shaft Length (mm) | 33.32 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 45.44 |
| Rack Length (mm) | 1154.13 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.17 |
| Thread Length (mm) | 55.12 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.31 |
| Product line | Rack and Pinion Assembly |
| Fits | Hyundai · 6 vehicles |
Remanufactured OE part. Delivers a precise fit with factory-tested performance.
New sealing components. Replaced rubber seals help eliminate internal leaks and improve reliability.
Protective coating. Helps resist corrosion and rust for longer service life.
Cross-references Hyundai 577003J100 and Hyundai 577243J000 for the same application. See all 2.
Remanufactured Steering Rack for Veracruz
Restore precise steering response with this remanufactured Cardone rack and pinion assembly, part number 26-2434. It is built for 2007-2012 Hyundai Veracruz applications and includes new sealing components, a protective finish, and a factory test drive process that verifies on-car communication before release.
Key Features
- Fits 2007-2012 Hyundai Veracruz, N/A
- Remanufactured OE-style rack and pinion assembly for direct vehicle fit
- New spool valve seals and rack donut seals installed where applicable
- Specialized lubricant applied for extended service life
- Factory test driven under extreme operating conditions
- Protective coating helps resist corrosion and rust
- Steel and aluminum casting materials
- Includes rack and pinion, sealing kit, and instruction sheet
- Part number 26-2434
Product Details
Cardone’s rack and pinion assembly line focuses on remanufactured steering components that match original equipment fit and function. This unit is engineered for the Hyundai Veracruz and uses brand-new premium components where needed, along with 100% replacement of rubber sealing parts to help control internal leakage and maintain steering performance. The assembly also features O-ring hose ports, M14 x 1.5 pressure port threads, M16 x 1.5 return port threads, and tie rod ends included for the listed application.
This part cross-references Hyundai 577003J100 and 577243J000 for the same application. The Cardone 26-2434 rack and pinion assembly is a practical OE replacement for drivers searching for a remanufactured steering rack for 2007-2012 Hyundai Veracruz models.
Common Issues This Part Addresses
- Hard steering during the first few minutes of driving
- Internal fluid bypass caused by worn spool valve or rack seals
- Steering that does not return to center after a turn
- Power steering pump whine caused by air trapped in the system
- Corrosion or wear in an aging steering rack assembly
Installation Notes and Tips
For 2007-2012 Hyundai Veracruz rack and pinion replacement, install an in-line filter and use OE fluid. Flush the hydraulic power steering system during installation, especially when replacing the rack and pinion assembly with inner tie rods, to support proper system operation and warranty validation requirements noted by the manufacturer. After installation, bleed the steering system completely to remove air and verify smooth return-to-center behavior.
Quality Assurance
Each Cardone remanufactured steering rack undergoes a factory test drive that simulates demanding operating conditions while checking on-car communications. Rubber sealing components are replaced, specialized lubricant is applied, and the unit is finished with a protective coating to support durability and corrosion resistance. The remanufacturing process also reduces energy and raw material use compared with producing a new part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Hyundai | Veracruz | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
