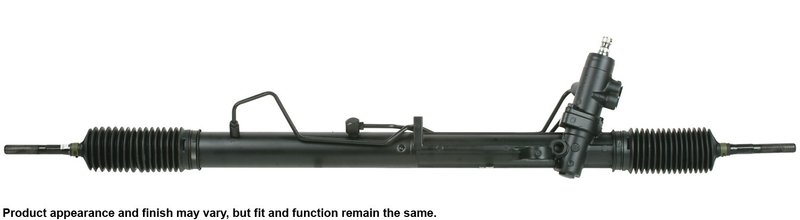

Cardone 26-2435 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-2435
The Cardone Rack and Pinion Assembly 26-2435 is designed for precise steering control in Hyundai and Kia vehicles, specifically the Entourage and Sedona models. This remanufactured steering component combines steel and aluminum casting materials to ensure durability and reliable performance.
- Remanufactured rack and pinion assembly with included sealing kit and instruction sheet
- Constructed from steel and aluminum for strength and corrosion resistance
- Compatible with Hyundai Entourage and Kia Sedona models
- Includes tie rod ends for complete steering system replacement
- Features O-ring type hose ports and standard pressure and return port thread sizes (M14 x 1.5 and M16 x 1.5)
- Input shaft diameter of 0.71 inches (18.01 mm) and length of 1.19 inches (30.15 mm)
- Rack length measures 47.25 inches (1200.15 mm) with 3.44 total turns lock to lock
- Mounting hole distance of 3.94 inches (100.03 mm) with two mounting holes
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications for fit and function. This line provides a cost-effective solution for restoring steering performance in vehicles like the Hyundai Entourage and Kia Sedona. Each assembly is rebuilt using quality materials such as steel and aluminum castings and includes necessary hardware like tie rod ends and sealing kits to facilitate installation.
Detailed Product Description
This Cardone rack and pinion assembly (part number 26-2435) is engineered to restore precise steering response and handling characteristics. The combination of steel and aluminum casting materials offers a balance of strength and weight reduction. The assembly includes an O-ring type hose port for secure hydraulic connections and standard thread sizes for pressure and return ports, ensuring compatibility with the vehicle’s power steering system. The input shaft dimensions and rack length are designed to match the original equipment specifications for Hyundai Entourage and Kia Sedona models, providing a direct replacement without modification.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air trapped in the power steering system causing noise
- Steering geometry issues affecting return-to-center behavior
Installation Notes and Tips
- Ensure proper bleeding of the power steering system to avoid pump noise
- Verify mounting hole alignment using the 3.94-inch spacing for secure fitment
- Use the included sealing kit to prevent hydraulic leaks
- Check input shaft engagement and secure tie rod ends included with the assembly
- Follow the instruction sheet carefully for torque specifications and installation sequence
Quality Assurance and Warranty
This remanufactured Cardone rack and pinion assembly undergoes rigorous testing to meet OEM standards for performance and durability. The product is supplied with a sealing kit and installation instructions to support proper fitment and function. Warranty details are provided by Cardone to cover defects in materials and workmanship, ensuring confidence in the replacement part for Hyundai Entourage and Kia Sedona vehicles.
| Brand | Cardone |
|---|---|
| Part Number | 26-2435 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 3.94 |
| Distance Between Mounting Holes (mm) | 100.03 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.71 |
| Input Shaft Diameter (mm) | 18.01 |
| Input Shaft Length (in) | 1.19 |
| Input Shaft Length (mm) | 30.15 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 47.25 |
| Rack Length (mm) | 1200.15 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.14 |
| Thread Length (mm) | 54.23 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.44 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2011 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2010 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Hyundai | Entourage | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2009 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Hyundai | Entourage | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2008 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Hyundai | Entourage | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2007 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2006 | Kia | Sedona | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
