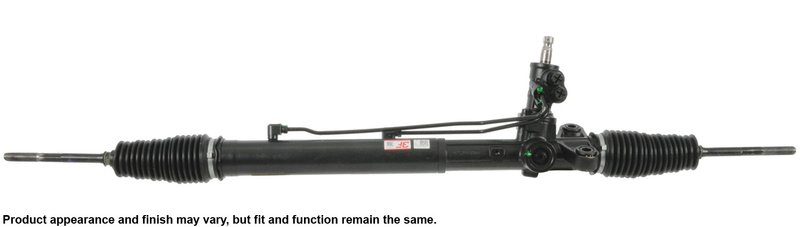

Cardone 26-2447 Rack and Pinion Assembly

Overview of Cardone Rack and Pinion Assembly 26-2447

The Cardone Rack and Pinion Assembly 26-2447 is designed specifically for Hyundai Genesis models, providing reliable steering performance. This remanufactured steering component combines steel and aluminum casting materials to ensure durability and precision.

• Remanufactured rack and pinion assembly for Hyundai Genesis
• Constructed with steel and aluminum casting materials
• Includes rack and pinion, sealing kit, and instruction sheet
• Features O-ring hose port type and M16 x 1.5 thread sizes for pressure and return ports
• Input shaft diameter of 0.75 inches (19 mm) and length of 1.69 inches (42.86 mm)
• Rack length measures 47.25 inches (1200.15 mm) with 2 mounting holes spaced 3.50 inches (88.90 mm) apart
• Tie rod ends included for complete installation
• Total steering turns lock to lock: 3

Detailed Product Description

This Cardone Rack and Pinion Assembly 26-2447 is part of the Rack and Pinion Assembly product line, which focuses on remanufactured steering components engineered to meet or exceed OEM specifications. The combination of steel and aluminum casting materials provides a balance of strength and weight reduction, contributing to consistent steering response and longevity. The assembly includes all necessary components such as tie rod ends and a sealing kit, facilitating a straightforward installation process. The black steering rack finish offers corrosion resistance and a professional appearance.

Compatible Vehicles and Common Applications

This rack and pinion assembly is compatible with Hyundai Genesis models, designed to restore precise steering control and eliminate common steering issues. It addresses problems such as:

• Hard steering during initial driving periods, often referred to as "morning sickness"
• Power steering pump whining caused by air in the system
• Steering not returning to center after turns
• Steering geometry-related issues affecting vehicle handling
• Wear and tear from original rack and pinion components

Installation Notes and Tips

Installation of the Cardone 26-2447 rack and pinion assembly should be performed by a qualified technician familiar with Hyundai Genesis steering systems. Key considerations include:

• Verify mounting hole spacing of 3.50 inches (88.90 mm) to ensure proper fitment
• Use the included sealing kit to prevent leaks and maintain system integrity
• Check input shaft dimensions (0.75 inch diameter, 1.69 inch length) for compatibility with steering column
• Bleed the power steering system thoroughly to remove air and prevent pump noise
• Confirm tie rod ends are securely installed and aligned to manufacturer specifications

Quality Assurance and Warranty

Cardone remanufactured rack and pinion assemblies undergo rigorous testing to meet industry standards for performance and durability. The 26-2447 part number is backed by Cardone's quality assurance processes, ensuring reliable operation when installed correctly. Warranty details are provided by Cardone and should be reviewed prior to installation.
