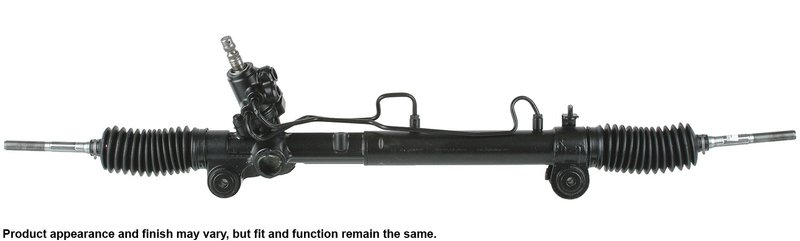

Cardone 26-2605 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-2605
The Cardone Rack and Pinion Assembly 26-2605 is designed specifically for Toyota Camry models, providing reliable steering performance. This remanufactured steering component combines steel and aluminum casting materials for durability and precision.
- Remanufactured rack and pinion assembly for Toyota Camry
- Constructed with steel and aluminum casting materials
- Includes rack and pinion, installation kit, and instruction sheet
- Features O-ring hose port type and tie rod ends included
- Input shaft diameter of 0.75 inches and length of 1.94 inches
- Rack length measures 44.06 inches with 2 mounting holes spaced 19.13 inches apart
- Pressure port thread size M16 x 1.5 and return port thread size M17 x 1.5
- Total turns lock to lock: 3.19
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components engineered to meet OEM specifications. This line ensures compatibility and performance for vehicles like the Toyota Camry by using quality materials such as steel and aluminum. Each assembly includes necessary installation hardware and is designed to restore proper steering function while maintaining factory fit and finish.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 26-2605) is built to restore precise steering control in Toyota Camry vehicles. The combination of steel and aluminum casting materials provides strength and corrosion resistance. The assembly includes tie rod ends and an installation kit, simplifying replacement. With a rack length of 44.06 inches and mounting holes spaced 19.13 inches apart, it fits securely in the steering system. The input shaft diameter of 0.75 inches and length of 1.94 inches ensure proper connection to the steering column. Thread sizes for pressure and return ports are M16 x 1.5 and M17 x 1.5 respectively, compatible with standard power steering lines.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in power steering system causing noise
- Steering geometry issues affecting rack centering
Installation Notes and Tips
Installation of the Cardone 26-2605 rack and pinion assembly should be performed by a qualified technician. The included installation kit and instruction sheet provide guidance for proper mounting and connection. Ensure all mounting holes align correctly with the 19.13-inch spacing. Check that the O-ring hose ports are sealed properly to prevent leaks. Bleed the power steering system thoroughly to remove air and avoid pump noise. Verify the total turns lock to lock (3.19) matches vehicle specifications for optimal steering response.
Quality Assurance and Warranty
This remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a warranty covering defects in materials and workmanship, ensuring dependable performance for Toyota Camry steering systems. Using this assembly helps maintain steering reliability and safety.
| Brand | Cardone |
|---|---|
| Part Number | 26-2605 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 19.13 |
| Distance Between Mounting Holes (mm) | 485.78 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.00 |
| Input Shaft Length (in) | 1.94 |
| Input Shaft Length (mm) | 49.20 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Installation Kit, Instruction Sheet |
| Pressure Port Thread Size | M16 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 44.06 |
| Rack Length (mm) | 1119.20 |
| Return Port Thread Size | M17 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.30 |
| Thread Length (mm) | 58.42 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.19 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Toyota | Camry | LE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2005 | Toyota | Camry | LE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2004 | Toyota | Camry | LE | N/A | with 15" Wheels; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2003 | Toyota | Camry | LE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2002 | Toyota | Camry | LE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
