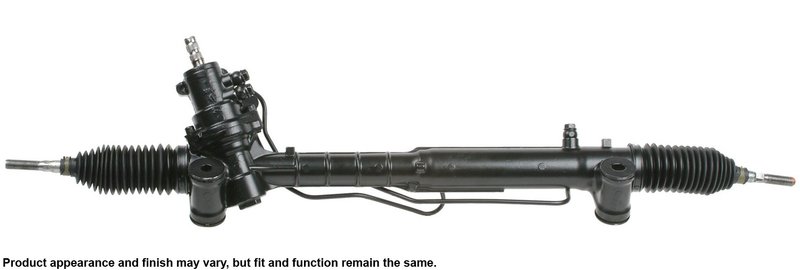

Cardone 26-2621 Rack and Pinion Assembly
| Brand | Cardone 26-2621 |
|---|---|
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 20.88 |
| Distance Between Mounting Holes (mm) | 530.23 |
| E-Waste | No |
| Hose Port Type | Banjo |
| Input Shaft Diameter (in) | 0.74 |
| Input Shaft Diameter (mm) | 18.87 |
| Input Shaft Length (in) | 4.02 |
| Input Shaft Length (mm) | 102.01 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, installation kit, evo sealing kit, instruction s |
| Pressure Port Thread Size | M16 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 41.25 |
| Rack Length (mm) | 1047.75 |
| Return Port Thread Size | M17 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.68 |
| Thread Length (mm) | 42.55 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.56 |
| Product line | Rack and Pinion Assembly |
| Fits | Lexus · 6 vehicles |
Remanufactured OE part. Factory-tested for reliable performance and on-car communication.
Aluminum construction. Lightweight housing finished with protective coating to resist corrosion.
New sealing components. Rubber seals and specialized lubricant help extend service life.
Cross-references Lexus 4420050180, Lexus 4420050181 and Lexus 4420050200 for the same application. See all 4.
Remanufactured Steering Rack for Lexus LS430
Restore precise steering response with this remanufactured Cardone rack and pinion assembly for the Lexus LS430. Cardone Part Number 26-2621 is built for 2001-2006 Lexus LS430 applications and includes inner tie rods for a direct replacement solution.
Cardone’s Electronic Power Steering Rack and Pinion line focuses on OE-style fit, verified on-car communication, and durability-focused remanufacturing. This unit is finished with protective coating, uses new sealing components, and is tested under simulated driving conditions to confirm performance before it leaves the factory.
Key Features
- Fits 2001-2006 Lexus LS430, N/A
- Cardone Part Number 26-2621
- Remanufactured Original Equipment-style rack and pinion assembly
- Aluminum housing with black finish
- Banjo hose port type
- Pressure port thread size: M16 x 1.5
- Return port thread size: M17 x 1.5
- Includes inner tie rods
- Factory test driven for communication and operating-condition verification
- New rubber sealing components and specialized lubricant applied
Product Details
This Cardone rack and pinion assembly is remanufactured to OE-level fitment standards for the Lexus LS430. The housing is cleaned, refinished, and rebuilt with new spool valve seals, rack donut seals, and other rubber sealing components to address internal leakage and wear. Cardone also applies a specialized lubricant and uses a factory test drive process that simulates demanding road conditions while checking electronic power steering communication where applicable.
For Lexus LS430 steering repair, Part Number 26-2621 is a direct-fit replacement option that supports smooth steering feel and consistent hydraulic performance. This part cross-references Lexus OE numbers 4420050180 and 4420050181 for the same application.
Common Issues This Part Can Address
- Steering effort that becomes heavy after startup or during cold operation
- Internal fluid bypass caused by worn rack seals
- Power steering pump noise related to air in the system after rack service
- Steering that does not return to center due to alignment or hydraulic restriction concerns
- Leakage from worn sealing surfaces in the rack and pinion assembly
Installation Notes
Fits 2001-2006 Lexus LS430, N/A. This application is supplied without EVO component and includes inner tie rods. Cardone recommends installing an in-line filter and using OE fluid for warranty purposes, along with a complete hydraulic power flush before operation. After installation, bleed the steering system fully to remove trapped air and verify proper return-to-center and steering assist.
Quality Assurance
Each Cardone 26-2621 rack and pinion assembly is remanufactured to rigorous quality and performance standards and tested before release. The process includes replacement of rubber sealing components, protective corrosion-resistant coating, and a factory test drive to confirm operation under simulated driving conditions.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2006 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
| 2005 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
| 2004 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
| 2003 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
| 2002 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
| 2001 | Lexus | LS430 | Supplied without EVO Component; Includes Inner Tie Rods; In-Line Filter available; Recommended to always install a filter and use OE Fluid for warranty purposes; Flush the system with Hydraulic Power.; Rack and Pinion Assembly |
