OE Quality
60-Day Returns

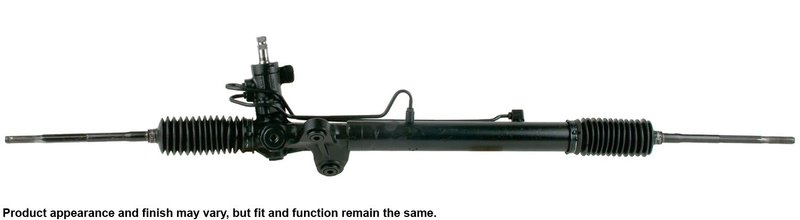

Cardone 26-2706 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-2706
The Cardone Rack and Pinion Assembly 26-2706 is designed specifically for Honda Odyssey models, providing reliable steering performance. This remanufactured steering component combines steel and aluminum casting materials for durability and precision.
- Remanufactured rack and pinion assembly for Honda Odyssey
- Constructed with steel and aluminum casting materials
- Includes tie rod ends for complete installation
- Input shaft diameter: 0.75 inches (18.92 mm)
- Rack length: 53.06 inches (1347.80 mm)
- Two mounting holes spaced 4.06 inches (103.20 mm) apart
- Pressure port thread size: M14 x 1.5; Return port thread size: M16 x 1.5
- Black steering rack color with seat-type hose ports
- Total turns lock to lock: 3.44
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering gear components that meet OEM specifications. This line is engineered to restore steering precision and reliability while using quality materials such as steel and aluminum. The assemblies come complete with necessary hardware, including tie rod ends, to facilitate a straightforward replacement process for compatible vehicles like the Honda Odyssey.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 26-2706) is built to restore the steering system of your Honda Odyssey to factory standards. The combination of steel and aluminum casting materials ensures strength and corrosion resistance. The assembly features a 0.75-inch input shaft diameter and a rack length of over 53 inches, designed to match the original equipment specifications. The two mounting holes spaced at 4.06 inches provide secure attachment, while the seat-type hose ports and standardized thread sizes (M14 x 1.5 pressure port and M16 x 1.5 return port) allow for proper hydraulic connections. The included tie rod ends simplify installation and help maintain proper steering alignment.
Common Steering Issues Addressed by This Part
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in the power steering system causing noise
- Steering rack “morning sickness” symptoms
Installation Notes and Tips
When installing the Cardone Rack and Pinion Assembly 26-2706 on a Honda Odyssey, ensure all hydraulic connections use the correct thread sizes (M14 x 1.5 pressure port and M16 x 1.5 return port). Verify the input shaft dimensions (0.75 inch diameter, 1.81 inch length) match the vehicle’s steering column. Properly torque mounting bolts spaced 4.06 inches apart to secure the assembly. Bleed the power steering system thoroughly to remove air and prevent pump noise. The included tie rod ends should be adjusted to factory alignment specifications after installation.
Quality Assurance and Warranty
This Cardone remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards for fit, form, and function. The use of durable steel and aluminum materials supports long-term reliability. While specific warranty details are not provided here, Cardone typically offers limited warranties on remanufactured steering components to cover defects in workmanship and materials.
| Brand | Cardone |
|---|---|
| Part Number | 26-2706 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 4.06 |
| Distance Between Mounting Holes (mm) | 103.20 |
| E-Waste | No |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 18.92 |
| Input Shaft Length (in) | 1.81 |
| Input Shaft Length (mm) | 46.05 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 53.06 |
| Rack Length (mm) | 1347.80 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.84 |
| Thread Length (mm) | 46.74 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.44 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2003 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2002 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2000 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 1999 | Honda | Odyssey | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
