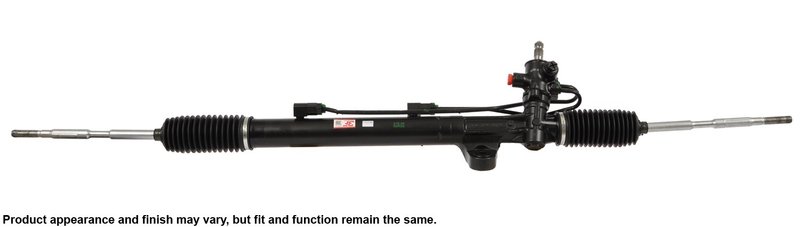

Cardone 26-2762 Rack and Pinion Assembly
| Brand | Cardone 26-2762 |
|---|---|
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 4.06 |
| Distance Between Mounting Holes (mm) | 103.17 |
| E-Waste | No |
| Hose Port Type | Seat |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.02 |
| Input Shaft Length (in) | 1.81 |
| Input Shaft Length (mm) | 46.02 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port Thread Size | M14 x 1.35 |
| Product Condition | Remanufactured |
| Rack Length (in) | 55.56 |
| Rack Length (mm) | 1411.27 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.86 |
| Thread Length (mm) | 47.22 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.5 |
| Product line | Rack and Pinion Assembly |
| Fits | Honda · 7 vehicles |
Remanufactured OE part. Built to original equipment standards for a precise fit and dependable performance.
Factory-tested. Each unit is driven through extreme conditions to verify on-car communications.
New sealing components. Fresh seals and specialized lubricant help reduce internal leaks and extend service life.
Cross-references Honda 53601TK8A01 for the same application. See all 1.
Remanufactured Steering Rack for Odyssey
Restore precise steering response with this remanufactured Cardone rack and pinion assembly, part number 26-2762. It is built for 2011-2017 Honda Odyssey models with hydraulic power steering and includes tie rod ends, a sealing kit, and an instruction sheet.
Cardone’s Electronic Power Steering Rack and Pinion line focuses on remanufactured OE-style fitment, updated sealing components, and tested operation under demanding conditions. For Honda Odyssey steering repair, 26-2762 is engineered to address internal leakage, steering effort concerns, and return-to-center issues while maintaining factory-style mounting and port configurations.
Key Features
- Remanufactured rack and pinion assembly for 2011-2017 Honda Odyssey
- Includes new rubber sealing components, spool valve seals, and rack donut seals where applicable
- Factory test drive process verifies operation and on-car communications
- Specialized lubricant applied for extended service life
- Protective coating helps resist corrosion and rust
- Black steering rack with steel and aluminum construction
- Includes tie rod ends, sealing kit, and instruction sheet
- Pressure port thread size: M14 x 1.35; return port thread size: M16 x 1.5
Detailed Description
Cardone 26-2762 is a remanufactured rack and pinion assembly for the Honda Odyssey, built to OE-style dimensions and tested for proper steering performance. It features a 55.56-inch rack length, 0.75-inch input shaft diameter, 3.5 total turns lock to lock, and a two-hole mounting layout with 4.06 inches between mounting holes. The unit uses seat-style hose ports and is finished in black for corrosion resistance.
This part cross-references Honda 53601TK8A01 for the same application. If you are replacing a worn Honda Odyssey steering rack, this assembly provides a direct-fit solution for hydraulic power steering systems across 2011-2017 model years.
Common Issues This Part Can Help Resolve
- Steering effort that is hard during the first few minutes of driving
- Internal fluid bypass or leakage in the rack and pinion assembly
- Steering that does not return to center after a turn
- Power steering pump whine caused by air in the system after repair
- Wear-related steering looseness or inconsistent response
Installation Notes and Tips
For warranty purposes, install an in-line filter, use the suggested OE fluid, and flush the system thoroughly before returning the vehicle to service. Bleed the steering system completely after installation to remove trapped air and reduce pump noise. If the vehicle does not return to center, inspect front-end alignment and check the return line for kinks or restriction.
Fits 2011-2017 Honda Odyssey, N/A.
Quality Assurance
Each Cardone rack and pinion assembly undergoes a factory test drive that simulates demanding operating conditions and checks on-car communications. The remanufacturing process replaces rubber sealing components, applies specialized lubricant, and uses a protective coating to support durability and corrosion resistance. This part is remanufactured to OE-style fitment standards for the Honda Odyssey application.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2017 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2016 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2015 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2014 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2013 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2012 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2011 | Honda | Odyssey | In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
