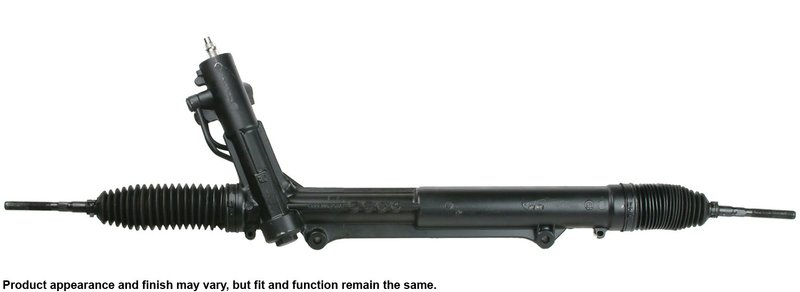

Cardone 26-2802 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-2802
The Cardone Rack and Pinion Assembly 26-2802 is designed specifically for BMW X5 models, providing reliable steering performance. This remanufactured steering component is engineered to meet OEM specifications and restore precise steering control.
- Remanufactured rack and pinion assembly for BMW X5
- Constructed with durable aluminum casting material
- Includes tie rod ends for complete installation
- Black steering rack color with 2 mounting holes spaced 4.63 inches apart
- Compatible with pressure port thread size M14 x 1.5 and return port thread size M16 x 1.5
- Input shaft diameter of 0.73 inches and length of 1.19 inches
- Total turns lock to lock: 3.44 for responsive steering
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering gear components that restore factory steering feel and performance. Each unit undergoes a thorough remanufacturing process to ensure durability and fitment accuracy. This line is tailored to provide a cost-effective alternative to new OEM parts while maintaining strict quality standards.
Detailed Product Description
This rack and pinion assembly features an aluminum casting for reduced weight and corrosion resistance. The 45.25-inch rack length and precise mounting hole spacing of 4.63 inches (117.48 mm) ensure proper fitment in the BMW X5 chassis. The included tie rod ends simplify installation by providing a ready-to-mount steering linkage. The input shaft measures 0.73 inches in diameter and 1.19 inches in length, matching the original equipment specifications. The assembly uses banjo/washer type hose ports and standard thread sizes (M14 x 1.5 pressure port, M16 x 1.5 return port) for compatibility with the vehicle’s hydraulic system.
Common Steering Issues Addressed
- Hard steering during initial minutes of driving
- Power steering pump whining after rack replacement
- Steering not returning to center after turns
- Air in the power steering system causing noise
- Steering geometry issues affecting rack centering
Installation Notes and Tips
- Ensure proper alignment of mounting holes spaced 4.63 inches apart
- Verify input shaft dimensions (0.73 in diameter, 1.19 in length) for compatibility
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Use included instruction sheet for step-by-step guidance
- Check tie rod ends for secure attachment and correct torque specifications
Quality Assurance and Warranty
This Cardone Rack and Pinion Assembly 26-2802 is remanufactured to meet or exceed OEM standards. Each unit undergoes rigorous testing to ensure proper function and durability. While specific warranty details are not provided here, Cardone products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
| Brand | Cardone |
|---|---|
| Part Number | 26-2802 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 4.63 |
| Distance Between Mounting Holes (mm) | 117.48 |
| E-Waste | No |
| Hose Port Type | Banjo/Washer |
| Input Shaft Diameter (in) | 0.73 |
| Input Shaft Diameter (mm) | 18.64 |
| Input Shaft Length (in) | 1.19 |
| Input Shaft Length (mm) | 30.15 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 45.25 |
| Rack Length (mm) | 1149.35 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.01 |
| Thread Length (mm) | 51.05 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.44 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2005 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2004 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2003 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2002 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2001 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2000 | BMW | X5 | N/A | without Variable Ratio Steering; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
