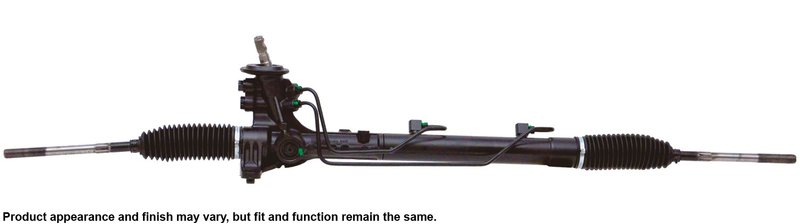

Cardone 26-29028 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-29028
The Cardone Rack and Pinion Assembly 26-29028 is a remanufactured steering component designed for Volkswagen Beetle and Passat models. Engineered with an aluminum casting, this assembly ensures reliable steering performance and durability for your vehicle.
- Remanufactured rack and pinion assembly for Volkswagen Beetle and Passat
- Aluminum casting material for lightweight strength
- Includes inner tie rod ends for complete installation
- Input shaft diameter of 0.75 inches (19.06 mm) and length of 1.875 inches (47.62 mm)
- Rack length of 51.25 inches (1301.75 mm) with 2 mounting holes spaced 4.250 inches (107.95 mm) apart
- Pressure port thread size M18 x 1.5 and return port thread size M16 x 1.5 with O-ring hose port type
- Black steering rack color with 3 total turns lock to lock
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering gear components that meet or exceed OEM specifications. This line provides a cost-effective solution for restoring steering functionality while maintaining vehicle safety and handling characteristics. The 26-29028 part number is part of this line, offering a balance of quality and value for Volkswagen Beetle and Passat owners requiring a reliable steering rack replacement.
Detailed Product Description
This rack and pinion assembly features an aluminum casting that reduces weight without compromising strength. The input shaft measures 0.75 inches in diameter and 1.875 inches in length, designed to fit precisely with the vehicle’s steering column. The rack length of 51.25 inches and mounting hole spacing of 4.250 inches ensure proper fitment and secure installation. The assembly includes inner tie rod ends, simplifying the replacement process. Thread sizes for pressure and return ports are M18 x 1.5 and M16 x 1.5 respectively, with O-ring hose ports to maintain a secure hydraulic seal. The black finish provides corrosion resistance and a clean appearance under the hood.
Common Steering Issues Addressed by This Rack and Pinion Assembly
- Hard steering during initial driving periods, often referred to as "morning sickness"
- Power steering pump whining caused by air in the system after rack replacement
- Steering not returning to center after turns due to worn or faulty rack components
- Loose or imprecise steering feel resulting from damaged rack and pinion assembly
- Hydraulic leaks or pressure loss in the steering system
Installation Notes and Tips
- Ensure compatibility with Volkswagen Beetle and Passat models before installation
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Check mounting hole alignment and torque specifications for secure fitment
- Inspect inner tie rod ends included with the assembly for proper connection
- Verify hose port thread sizes (M18 x 1.5 pressure, M16 x 1.5 return) for correct hydraulic line attachment
Quality Assurance and Warranty
This Cardone Rack and Pinion Assembly 26-29028 is remanufactured to meet strict quality standards, ensuring reliable performance and durability. The product undergoes comprehensive testing to verify functionality and fitment for Volkswagen Beetle and Passat vehicles. Warranty coverage details are provided by Cardone and typically include protection against defects in materials and workmanship for a specified period.
| Brand | Cardone |
|---|---|
| Part Number | 26-29028 |
| Position | Rack and Pinion Assembly |
| Casting Material | Aluminum |
| Distance Between Mounting Holes (in) | 4.250 |
| Distance Between Mounting Holes (mm) | 107.95 |
| E-Waste | No |
| Hose Port Type | O-Ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.06 |
| Input Shaft Length (in) | 1.875 |
| Input Shaft Length (mm) | 47.62 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M18 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 51.25 |
| Rack Length (mm) | 1301.75 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.373 |
| Thread Length (mm) | 60.28 |
| Tie Rod Ends Included | inner |
| Total Turns Lock to Lock | 3 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Volkswagen | Beetle | 2.5L | L5 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2014 | Volkswagen | Beetle | 1.8L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2014 | Volkswagen | Passat | 2.5L | L5 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2013 | Volkswagen | Beetle | 2.5L | L5 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2013 | Volkswagen | Passat | 2.5L | L5 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2012 | Volkswagen | Passat | 2.5L | L5 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
