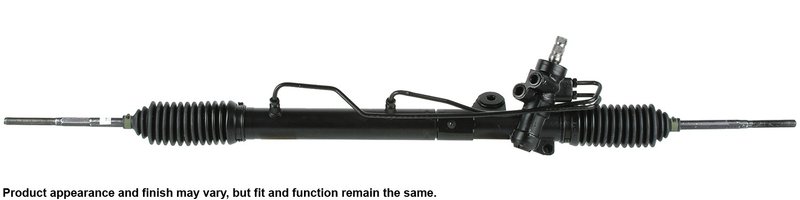

Cardone 26-3019 Rack and Pinion Assembly
Remanufactured Steering Rack for Sentra
Restore precise steering response with this remanufactured Cardone rack and pinion assembly for select Nissan Sentra models. Cardone Part Number 26-3019 is built with new sealing components, specialized lubricant, and protective coating to support long service life in daily driving.
Compatible with 2002-2006 Nissan Sentra applications, this rack and pinion assembly is remanufactured to OE fit standards and includes tie rod ends. It is a direct replacement for worn steering gear units that can cause play, leaks, or inconsistent steering feel.
Key Features
- Cardone Rack and Pinion Assembly, Part Number 26-3019
- Remanufactured Original Equipment-style fit for select Nissan Sentra models
- 100% replacement of rubber sealing components
- New spool valve seals and rack donut seals installed where applicable
- Specialized lubricant applied for extended service life
- Factory test drive performed to verify operation and on-car communications
- Protective coating helps resist corrosion and rust
- Package contents: rack and pinion, sealing kit, instruction sheet
- Hose port type: O-ring; pressure port thread size: M14 x 1.5; return port thread size: M16 x 1.5
Product Details
Cardone’s Rack and Pinion Assembly line focuses on remanufactured steering components that are rebuilt with premium replacement parts and tested under operating conditions. For this application, the unit uses steel and aluminum construction, a black finish, and a 45.38-inch rack length. The assembly is engineered for 2002-2006 Nissan Sentra steering systems and is listed with a 2.44 total turns lock to lock for responsive road feel. This part cross-references Nissan 485214Z001 and 490014Z700 for the same application.
Common Steering Issues This Part Can Address
- Excessive steering play or loose steering feel
- Fluid leaks from worn rack seals
- Hard steering after startup or inconsistent assist
- Noise caused by internal bypass or worn valve seals
- Steering that does not return smoothly after a turn
Installation Notes
- Fits 2002-2006 Nissan Sentra, N/A.
- Install an in-line filter and use OE fluid when installing this rack and pinion assembly with inner tie rods for warranty validation.
- Flush the hydraulic power steering system during installation.
- Bleed the steering system completely to remove air and reduce pump whine.
- Check front-end alignment after installation and inspect return lines for restriction or kinks.
Quality Assurance
Each Cardone electronic power steering rack and pinion undergoes a factory test drive that simulates demanding operating conditions while checking on-car communication. The remanufacturing process replaces sealing components, applies specialized lubricant, and uses a protective finish to support durability and consistent performance.
| Brand | Cardone |
|---|---|
| Part Number | 26-3019 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes (in) | 0.00 |
| Distance Between Mounting Holes (mm) | 0.00 |
| E-Waste | No |
| FAQs | For the first few minutes of driving my car, the steering is hard |
| FAQs | I replaced the rack and now the power steering pump is whining. w |
| FAQs | Steering not returning to center coming out of a turn. what could |
| FAQs | The most likely cause of power steering pump whine is air in the |
| FAQs | The rack and pinion does not return to center by itself. the geom |
| FAQs | This symptom is classified as "morning sickness". this condition |
| Hose Port Type | O-ring |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (in) | 1.63 |
| Input Shaft Length (mm) | 41.28 |
| Number of Mounting Holes | 1 |
| Package Contents | Rack and pinion, sealing kit, instruction sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 45.38 |
| Rack Length (mm) | 1152.53 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.63 |
| Thread Length (mm) | 66.68 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.44 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2005 | Nissan | Sentra | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2004 | Nissan | Sentra | SE-R Spec V | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2004 | Nissan | Sentra | SE-R | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2003 | Nissan | Sentra | SE-R Spec V | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2003 | Nissan | Sentra | SE-R | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2002 | Nissan | Sentra | 2.5L | L4 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
