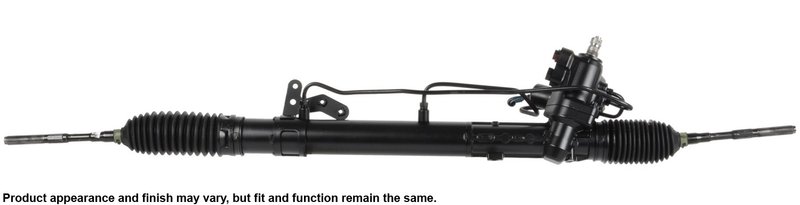

Cardone 26-3083E Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-3083E
The Cardone Rack and Pinion Assembly 26-3083E is designed specifically for Nissan Maxima models, providing reliable steering performance. This remanufactured steering component combines steel and aluminum casting materials to ensure durability and precision.
- Remanufactured rack and pinion assembly for Nissan Maxima
- Constructed with steel and aluminum casting materials
- Includes rack and pinion, sealing kit, and instruction sheet
- Features washer-type hose ports and tie rod ends included
- Rack length of 43.38 inches (1101.73 mm) with 2 mounting holes
- Input shaft diameter of 0.75 inches (19.05 mm) and length of 1.19 inches (30.15 mm)
- Pressure port thread size M14 x 1.5 and return port thread size M16 x 1.5
- Black steering rack color with 2.5 total turns lock to lock
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications. This line offers a balance of quality and value by restoring original parts with precision machining and thorough testing. The 26-3083E model fits within this line, providing a reliable replacement for Nissan Maxima vehicles requiring steering gear and related component repairs.
Detailed Product Description
This rack and pinion assembly is engineered with a combination of steel and aluminum casting materials to optimize strength and weight. The assembly measures 43.38 inches in rack length and includes two mounting holes spaced 11.56 inches (293.7 mm) apart for secure installation. The input shaft diameter is 0.75 inches with a length of 1.19 inches, designed to match the steering column interface precisely. The included sealing kit ensures a tight fit to prevent leaks, while the washer-type hose ports and thread sizes (M14 x 1.5 pressure port and M16 x 1.5 return port) accommodate standard hydraulic connections. The black finish provides corrosion resistance and a clean appearance. Tie rod ends are included to simplify installation and ensure compatibility.
Common Applications and Issues Addressed
- Steering that feels hard or stiff during initial driving (morning sickness symptom)
- Power steering pump whining caused by air in the system after rack replacement
- Steering not returning to center after turns due to worn or faulty rack and pinion
- Replacing worn or damaged rack and pinion assemblies on Nissan Maxima models
- Resolving leaks or steering play caused by failed seals or components
Installation Notes and Tips
- Ensure proper alignment of mounting holes spaced 11.56 inches apart for secure fitment
- Use the included sealing kit to prevent hydraulic fluid leaks
- Bleed the power steering system thoroughly to remove air and prevent pump noise
- Verify input shaft dimensions (0.75 inch diameter, 1.19 inch length) match vehicle specifications
- Check tie rod ends for proper torque and alignment after installation
Quality Assurance and Warranty
This Cardone Rack and Pinion Assembly 26-3083E is remanufactured to meet or exceed OEM standards. Each unit undergoes rigorous testing to ensure proper function and durability. The product includes a warranty that covers defects in materials and workmanship, providing confidence in its long-term performance on Nissan Maxima vehicles.
| Brand | Cardone |
|---|---|
| Part Number | 26-3083E |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes (in) | 11.56 |
| Distance Between Mounting Holes (mm) | 293.70 |
| E-Waste | Yes |
| Hose Port Type | Washer |
| Input Shaft Diameter (in) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (in) | 1.19 |
| Input Shaft Length (mm) | 30.15 |
| Number of Mounting Holes | 2 |
| Package Contents | Rack and Pinion, Sealing Kit, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 43.38 |
| Rack Length (mm) | 1101.73 |
| Return Port Thread Size | M16 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 1.84 |
| Thread Length (mm) | 46.61 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 2.5 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2013 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2012 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2011 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2010 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
| 2009 | Nissan | Maxima | N/A | Supplied with Electronic Variable Orifice (EVO) Component; Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
