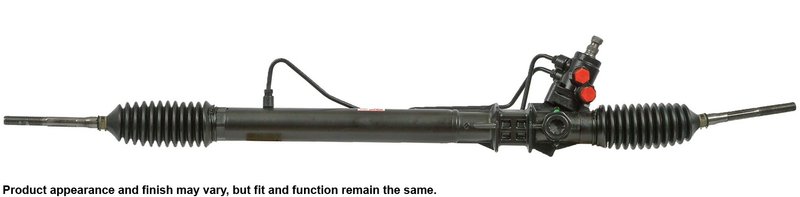

Cardone 26-8000 Rack and Pinion Assembly
Overview of Cardone Rack and Pinion Assembly 26-8000
The Cardone Rack and Pinion Assembly 26-8000 is designed specifically for Suzuki Grand Vitara and XL-7 models. This remanufactured steering component combines steel and aluminum casting materials to provide reliable performance and durability in your vehicle's steering system.
- Remanufactured rack and pinion assembly for Suzuki Grand Vitara and XL-7
- Constructed with steel and aluminum casting materials
- Includes tie rod ends and instruction sheet for installation
- Features banjo/washer type hose ports and M14 x 1.5 thread sizes for pressure and return ports
- Input shaft diameter of 0.74 inches (18.72 mm) and length of 1.19 inches (30.15 mm)
- Rack length measures 43.50 inches (1104.90 mm) with 3.81 total turns lock to lock
- Black steering rack color with one mounting hole
About the Cardone Rack and Pinion Assembly Product Line
The Cardone Rack and Pinion Assembly product line focuses on remanufactured steering components that meet OEM specifications. This line is engineered to restore proper steering function and feel, using quality materials such as steel and aluminum for strength and corrosion resistance. The assemblies come complete with necessary hardware like tie rod ends and are designed to match factory fitment for Suzuki vehicles including the Grand Vitara and XL-7.
Detailed Product Description
This remanufactured rack and pinion assembly (part number 26-8000) is built to replace worn or damaged steering racks in Suzuki Grand Vitara and XL-7 models. The combination of steel and aluminum casting materials ensures a balance of durability and weight savings. The assembly includes tie rod ends and features a banjo/washer hose port type, which is compatible with factory power steering lines. The input shaft measures 0.74 inches in diameter and 1.19 inches in length, designed to fit precisely with the vehicle’s steering column. The rack length of 43.50 inches and 3.81 turns lock to lock provide accurate steering response and control. The black finish offers corrosion resistance and a clean appearance under the hood.
Common Steering Issues Addressed by This Rack and Pinion Assembly
- Hard steering during initial minutes of driving (often called "morning sickness")
- Steering not returning to center after turns
- Power steering pump whining caused by air in the system
- Loose or imprecise steering feel due to worn rack components
- Steering rack leaks or failure affecting vehicle control
Installation Notes and Tips
Installation of the Cardone 26-8000 rack and pinion assembly should be performed by a qualified technician familiar with Suzuki Grand Vitara and XL-7 steering systems. Ensure all hydraulic connections use the correct banjo/washer fittings and torque specifications. Bleed the power steering system thoroughly to remove air and prevent pump noise. Verify alignment and steering geometry after installation to ensure proper return-to-center behavior and handling characteristics.
Quality Assurance and Warranty
This remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards for fit, form, and function. Cardone provides a limited warranty covering defects in materials and workmanship, offering assurance of product reliability for Suzuki Grand Vitara and XL-7 owners.
| Brand | Cardone |
|---|---|
| Part Number | 26-8000 |
| Position | Rack and Pinion Assembly |
| Casting Material | Steel; Aluminum |
| E-Waste | No |
| Hose Port Type | Banjo/Washer |
| Input Shaft Diameter (in) | 0.74 |
| Input Shaft Diameter (mm) | 18.72 |
| Input Shaft Length (in) | 1.19 |
| Input Shaft Length (mm) | 30.15 |
| Number of Mounting Holes | 1 |
| Package Contents | Rack and Pinion, Instruction Sheet |
| Pressure Port Thread Size | M14 x 1.5 |
| Product Condition | Remanufactured |
| Rack Length (in) | 43.50 |
| Rack Length (mm) | 1104.90 |
| Return Port Thread Size | M14 x 1.5 |
| Steering Rack Color | Black |
| Thread Length (in) | 2.10 |
| Thread Length (mm) | 53.21 |
| Tie Rod Ends Included | Yes |
| Total Turns Lock to Lock | 3.81 |
This part fits 22 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Suzuki | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2005 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2005 | Suzuki | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2004 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2004 | Suzuki | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2003 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2003 | Suzuki | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2002 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2002 | Suzuki | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 2001 | Suzuki | Grand Vitara | XL-7 | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | XL-7 Limited | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | XL-7 Plus | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLS Plus SE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLS Plus | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLX Plus | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLX | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | XL-7 Touring | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | Limited | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLX Plus SE | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2001 | Suzuki | Grand Vitara | JLS | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
| 2000 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly | |
| 1999 | Suzuki | Grand Vitara | N/A | Install in-line filter and use OE fluid; flush hydraulic power system when installing Rack and Pinion Assembly with inner tie rods for warranty validation.; Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
