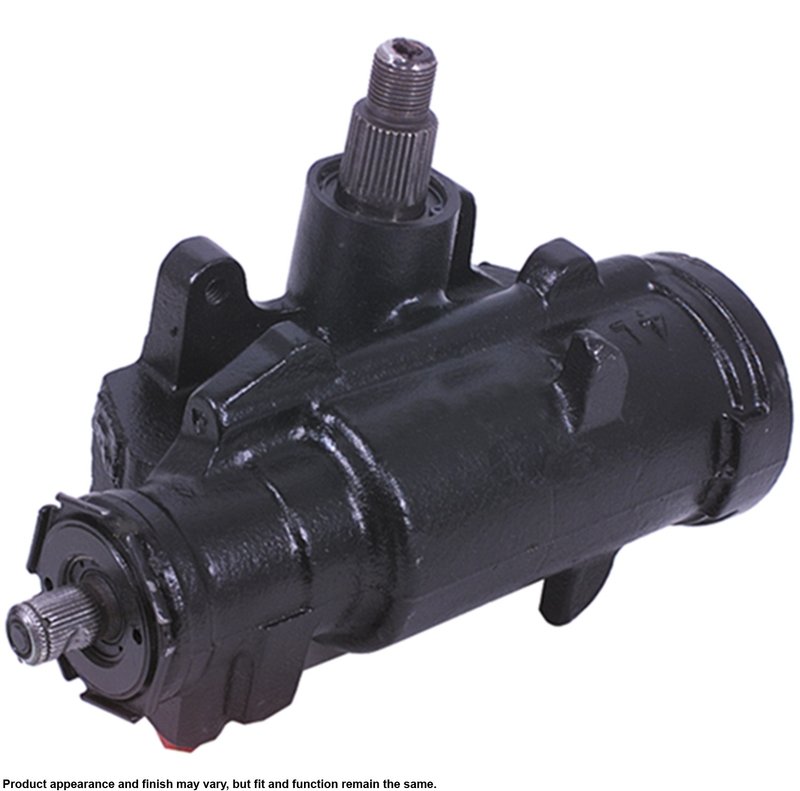

Cardone 27-7530 Steering Gear

Reliable Steering Gear for Chevrolet and GMC Trucks

The Cardone Steering Gear 27-7530 is a remanufactured power steering box designed for select Chevrolet and GMC truck models. Engineered to meet OEM specifications, this steering gear ensures precise control and durability for your P10, P20, P30, P1500, P2500, and P3500 vehicles.

• Remanufactured power steering gear in black finish
• Input shaft diameter: 0.80 inches (20.19 mm) with 31 splines plus flat and notch
• Output shaft diameter: 1.25 inches (31.75 mm)
• Four mounting holes for secure installation
• O-ring type hose ports with M18 x 1.5 pressure port and M16 x 1.5 return port thread sizes
• Standard pump rotation and total turns lock to lock options of 3.4 or 4.1
• Includes gear and detailed instruction sheets for flushing and installation

About the Cardone Steering Gear Product Line

The Cardone Steering Gear line focuses on remanufactured steering components that restore factory performance and reliability. Each unit undergoes rigorous testing and quality checks to ensure compatibility and function for power steering systems. The 27-7530 model is part of this line, offering a dependable replacement for worn or damaged steering gears in Chevrolet and GMC trucks.

Product Details and Specifications

This steering gear features a single flat, whistle notch input shaft with 31 splines plus flat and notch, providing a precise fit for the specified truck models. The black finish protects against corrosion, while the O-ring hose port type ensures a secure hydraulic connection. With four mounting holes, the unit mounts firmly to the vehicle’s frame. The pressure and return ports use metric thread sizes (M18 x 1.5 and M16 x 1.5 respectively), compatible with standard power steering lines. The total turns lock to lock of either 3.4 or 4.1 allows for smooth steering response tailored to your vehicle’s requirements.

Compatible Vehicles and Common Applications

• Chevrolet P10, P20, P30 trucks
• Chevrolet P1500, P2500, P3500 models
• GMC P10, P20, P30 trucks
• GMC P1500, P2500, P3500 models
• Replacement for worn or leaking steering gear units

Installation Notes and Tips

Ensure the steering system is properly flushed before installing the remanufactured steering gear to prevent contamination. Verify the input and output shaft dimensions and spline count match your vehicle’s specifications. Use the included instruction sheets for flushing and installation guidance. Note that the pitman arm is not included and must be reused or replaced separately. Proper torque on mounting bolts and hydraulic connections is essential for safe operation.

Quality Assurance and Warranty

This Cardone Steering Gear 27-7530 is remanufactured to meet or exceed OEM standards. Each unit undergoes comprehensive testing to ensure reliable performance and durability. While specific warranty details are not provided here, Cardone products typically come with a limited warranty covering defects in materials and workmanship.
